Economic 2.8-12mm 1/2.7'' 1.3MP F1.4 DC-Iris KT02812DIR-1.3MP Email to a Friend

SKU: KT02812DIR-1.3MP
Market:  US$    0.00
Price:  US  $ 12.20

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
2.8 - 12mm
CS Mount
1/2.7¡± Format
DC-Iris
F1.4
1.3 Megapixel
IR Correction
Match SONY Exmor, Panasonic MN34031, Aptina AR0130
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping

Match SONY Exmor, Panasonic MN34031, Aptina AR0130
Focal Length: 2.8-12mm


Mount Type: CS

Format: 1/2.7''

Iris: DC

Aperture: F1.4

1.3 Megapixel

IR Correction

E.F.L.

2.8 ~ 12 mm

F No.

F1.4

H.FOV

1/3” 720P

92° ~ 28°

Image Format

1/2.7” (max)

Iris Type

DC-Iris

Mount Type

CS

M.O.D

0.3m

TV Distortion

1/3” 720P

-15% (wide)

Chief Ray Angle (Max)

<8°

Control Type

±ä±¶ Zoom

Manual

¾Û½¹ Focus

Manual

Operating Temperature

-20¡æ ~ 60¡æ

Weight

40g ±4g

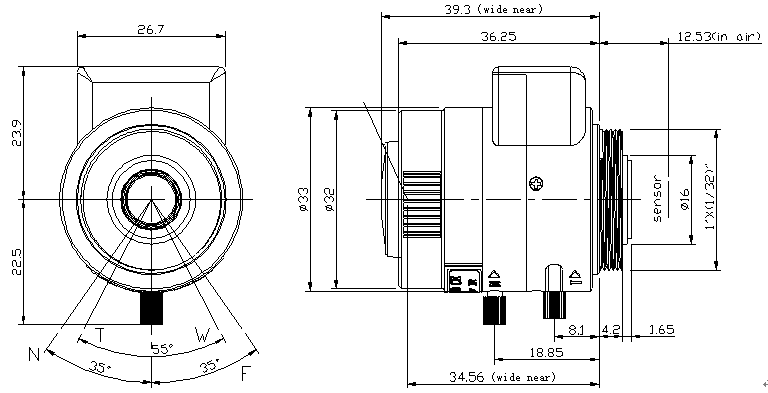

Dimensions





Tolerance(mm)

0 ~ 10

±0.05

10 ~ 30

±0.10

30 ~ 120

±0.20

Angle

±




DC-Iris

1. Connector and Cord Specification

1

Damping(-)

2

Damping(+)

3

Driving(+)

4

Driving(-)

Connector

Square 4 pin

JEITA Standard

Cable Length

250mm

2. DC-Iris Specification

DC Motor

Driving Coil

190Ω at 20¡æ

Damping Coil

560Ω at 20¡æ

Storage Temperature

-30 ~ 70¡æ

Operating

Voltage (Open)

3.5 ~ 5V

Voltage (Close)

<0.5V

Operating Temperature

-20 ~ 60¡æ
