1CH DSA Receiver with Data Transmission K2001R Email to a Friend

SKU: K2001R
Market:  US$    0.00
Price:  US  $ 14.45

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
1CH DSA Receiver with Data Transmission
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
- Single Channel Active Video Receiver;
- Long Distance Transmission of PAL/NTSC Real-time Video;
- DSA;
- Transmission of Single Channel Data;
- Exceptional Interference Rejection;
- Options for Distances: Three Levels;
- Red Light for Power, Green Light for Video;
- Built-in Surge Protection, Lighting Protection and other Protection Setting;
- Convenient Wiring, Higher Cable Utilization Rate and Lower Composite Wiring Cost.
Model K2001R-DSA
Video Frequency DC To 5MHz
Impedance Coax BNC:75Ω；
UTP RJ45:100Ω
CMRR 60dB typ
Attenuation 0.3dB typ
Environm ent Temperature Working Temp:-10℃～+50℃；
Storage Temp:-30℃～+70℃
Humidity 0～95%RH
Wire Type Category Type UTP CAT5 ，24-16AWG
Impedance 9Ω（100M)
Power DC12V
UTP Port Terminal Block
Dimengions(mm) 103*70*30
Weight(g) 100


DSA (Distance Self-Adapting) Technology
Employing the advanced DSA technology, it can adapt to the cable length and adjust the video signal gain control automatically, identify its polarity and compensate the frequency bands. Video quality is more Human-based.

Complete Solution
A set of complete UTP transmitting solution is provided. Its advanced technology in UTP transmitting field and plenty producing lines offer more options in CCTV system transmission and bring totally new worthy experience to you.

Guarantee for Long Distance Transmission and Video Quality
KVSecurity twisted pair transmitter employs advanced processing technology,zooms out and compensates the attenuation of video signal levels and different frequencies, keeps the original video sharpness, color and resolution, realizes a good transmission of middle and long-distance video signals and solves the problem that coax can't reach the long transmitting distance.

Higher Cable Utilization Rate
KVSecurity twisted pair transmitter transmits video, audio, data  and power, which makes it convenient to form a multi-class monitoring system.

Flexible and Convenient Wiring Cuts down Project Cost
UTP is softer and lighter than coax, making it's easier, more convenient for wiring installation. Specially in integrated systems, cable utilization rate is increased and design change is decreased greatly. Meanwhile, UTP's price is lower than coax's, which greatly cuts down the cost for wiring installation.

Exceptional Interference Rejection, Suitable for Complicated Working Environments
Exceptional interference rejection; no interferences between signals; even under strongly interfering environments, good video can be transmitted.

Built-in Protection Setting, Stable and Reliable
Built-in surge protection, lighting protection and other protection settings, reliable and stable, making working system safer and more reliable.
Description and Application of KVSecurity Transceiver
Coax, Fiber Optics, &UTP Transmission Systems Relative Cost Comparison
Technology
Cable-loss Compensation
Noise
Suge/Lighting Protection
Ground Loop Isolation
Cost of Media
Cost of TX/RX
Coax
NO
NO
NO
NO
High
None
Fiber Optics
YES
YES
YES
YES
Very High
High
KVSecurity UTP
YES
YES
YES
YES
Low
Low

Product main specifications Configuration Table of Passive to Active Transmission Distance
Transmitter
Number of Cameras
Max Transmission Distance
Transmitter
Receiver
Passive To Passive
1
400m
K203A/B,K206A/B,K207,K201MA/C
K203A/B,K206A/B,K207,K201MA/C
1-4
400m
K203A/B,K206A/B,K207,K201MA/C
K401R,K1004
1-16
400m
K203A/B,K206A/B,K207,K201MA/C
K1601R
Passive To Active
1
1200m
K203A/B,K206A/B,K207,K201MA/C
K2004R-DSA,K2003R-DSA
1-4
1200m
K203A/B,K206A/B,K207,K201MA/C
K2004R-DSA
1-8
1000m
K203A/B,K206A/B,K207,K201MA/C
K2208RQ-DSA
1-16
1000m
K203A/B,K206A/B,K207,K201MA/C
K2216RQ-DSA

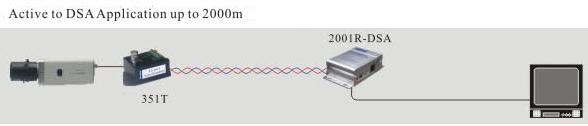

Active To Active
1
2000m
K301T,K351T
K2001R-DSA, K2003R-DSA
1-4
2000m
K301T,K351T
K2004R-DSA
1-8
1000m
K301T,K351T
K2208RQ-DSA
1-16
1000m
K301T,K351T
K2216RQ-DSA


Configuration Table of PVD Hub to Active Video Transmission Distance
Number of Cameras
Max Transmission Distance
Transmitter
HUB Transmitter(Midspan)
Receiver
1
400m
K208A/B,K208C/D

K208A/B
1
400m
K208A/B,K208C/D

K208C/D
1-4
400m
K208A/B,K208C/D
K2304PVD
K401R,K1004
1-16
400m
K208A/B,K208C/D
K2304PVD(4set)
K1601R
1-4
400m
K208A/B,K208C/D,K3001P-AC-DC
K2304PH-AC(1set)
K2004R-DSA
1-16
400m
K208A/B,K208C/D,K3001P-AC-DC
K2304PH-AC(4set)or K2308PH-AC(2set)
K2216RQ-DSA
1-16
400m
K208A/B,K208C/D,K3001P-AC-DC
K2304PH-AC(4set)orK2308PH-AC(2set)
K2216RQ-DSA


Peferenced Table for PVD Product Power Transmission Distance
Table 1:K3001P-AC-DC at the DC12V camera
AC24V
AC28V
AC24V
AC28V
AC24V
AC28V
AC24V
AC28V
Camera Current
100mA
100mA
250mA
250mA
450mA
450mA
600mA
600mA
24AWG Maximum Transmission Distance
1km
1km
375m
550m
210m
305m
150m
220m


Table 2:K208A/B/C/D at the AC24V camera
AC24V
AC28V
AC24V
AC28V
AC24V
AC28V
AC24V
AC28V
Camera Current
100mA
100mA
250mA
250mA
450mA
450mA
600mA
600mA
Camera Minimum Operating Voltage
AC24V±10%
24AWG Maximum Transmission Distance
237m
700m
120m
330m
80m
240m
52m
125m


Table 3:K208A/B/C/D at the DC12V camera
Power Supply
AC12V
AC12V
AC12V
Camera Current
100mA
200mA
30mA
Camera Minimum Operating Voltage
DC9V
24AWG Maximum Transmission Distance
238m
120m
90m


Reference Calculation Method of Power Transmission Distance
L ≈ 100*(V1-V2)/(I*R)
Power Supply:  V1(v)
Camera Minimum Operating Voltage:  V2(v)
Camera Current:  I(A)
Transmission Distance:  L(m)
Wire's Every 100M Impedance: R(ohm)(24AWG Per 100M  Reference Impedance is 8.42ohm).
