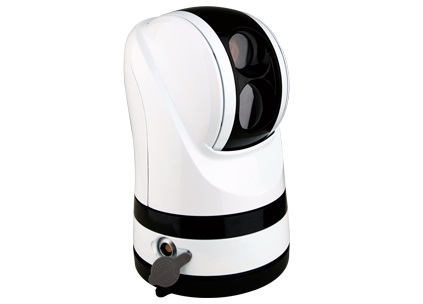

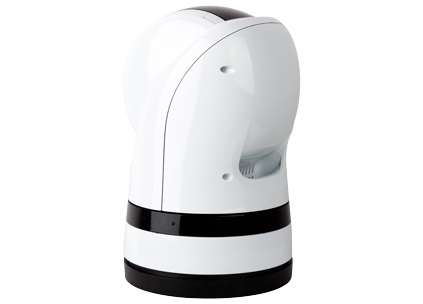

Analog Speed Dome Thermal Camera KDS Email to a Friend

SKU: KDS
Market:  US$    0.00
Price:  US  $ 9165-9596

Buy one or more calculated by the wholesale price

Starting from 2 Units

Lens:
Quantity: Unit(s)
◆Resolution:384X288
◆High sensitive CCD camera
◆Positioning accuracy of PTZ can be 0.05 degrees
◆High-strength aluminum housing, prevent corrosion effectively
◆IP67
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping

◆ Professional anti-shock design for Vehicle and ship use purpose

◆ Passive thermal imaging video, High sensitive visual Video and Composite video output

◆ All weather design for special use in Frost, fog, smokeetc

◆ Pan-tilt system rotates Precision reach to 0.05 °even after long time running

◆ Professional surface of housing design for anti-salty penetration, compact aluminum structure

◆ All sealed design for IP67 protection level, built in surge protection

◆ Built-in heater and swipe frost device , working temp range from -40℃ to 55 ℃

◆ RS485 control, support protocol PELCO-D/P





Items

KDS18

KDS37

Thermal camera and visual camera system

Thermal imaging camera

Detector type

Amorphous Silicon mirco-bolometer FPA

Spectral range

8~14μm

Pixels

384×288

Pixel size

25μm

Focus length

18mm

37mm

FOV

30.6°*22.9°

14.8°*11.1°

Focusing

Manually

Video output

PAL

Frame rate

50Hz

Image polarity

Black hot/White hot

Spectral range

RS485,PELCO-D/PELCO-P/KVS

Visual camera

CCD
camera

Resolution

PAL:752(H)×582(V) / NTSC:768(H)×494(V)

Pick-up device

1/4" SONY EXView HAD CC

Lens

3.4 mm ~122.4 mm / F1.6 to F4.5,36 x Optical zoom

Horizontal resolution

Color :550TVL,B/W:570 TVL

Pan-tilt

Angle show function

PELCO-D

Horizontal angle of rotation

0~360°continuously rotation

Vertical angle of rotation

-15°~90°

Horizontal rotation speed

0.04° -100°/s

Vertical rotation speed

0.3° ~60°/s

Preset

256

Auto scan

Aluminum

System charteristic

Dimension

Φ190(mm)×300(mm)

Protection level

IP67

Weight

7kg

Working temp

-40°C~55°C

Storage temp

-40°C~70°C

System interface

Video output

PAL  3 CHS,1 CH thermal video,1CH visual video,1 CH composite Video

Com

RS485

Protocol

PELCO-D/P

Baud rate

2400/4800/9600 bps

Power supply

DC12~28V

Power consumption

<50W(add heater)


All weather design for vehicle and ship use purpose.
