Cost-effective Medium Duty Pan Tilt K3060 Email to a Friend

SKU: K3060
Market:  US$    0.00
Price:  US  $ 215-240

Buy one or more calculated by the wholesale price

Starting from 2 Units

Configuration:
Heater:
  • Yes已选中
  • No已选中
Quantity: Unit(s)
   Compare   Add to wishlist
• Top payload, max load 17kgs
• Constant speed: Pan 9/s; Tilt 4°/s
• Pan angle: 0-355°, tilt angle: -60°/-+10°
• IP66, working temperature: -35°-+65°
• 24VAC power input
  • Features
  • Specifications
  • Dimensions

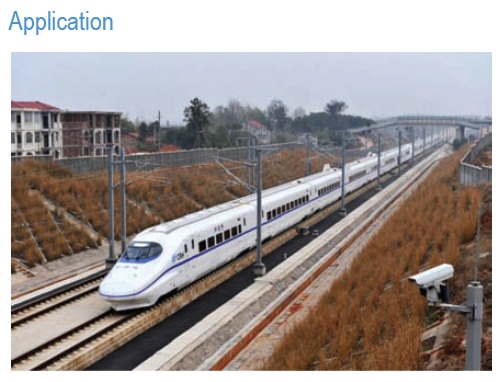

  • Application
  • Payment & Shipping
• Cost-effective, constant/variable speed, maximum 15kgs top load
• 355°/360° pan rotation, pan: 0.1° ~ 9°/s, tilt: 0.1° ~ 4°/s
• Up to 50 presets, 1 auto scan, 1 cruising track
• Anti-surge, lightning protection, pass EMC test
• Optional IR illuminator, housing, bracket
• IP66 waterproof


Model

K3060P

K3060D

K3060L

PTZ

　

Rotation

Constant speed

Constant speed

Variable speed

Angle Return

/

/

Support with Pelco D, default enquiry return

Load Type

Top load

Top load

Top load

Max. Load Weight

17kgs

17kgs

17kgs

Pan Rotation Range

0° ~ 355°

0° ~ 355°

360° continuous pan rotation

Tilt Rotation Range

-60° ~ +10°

-60° ~ +10°

-60° ~ +10°

Pan Speed

9° /s

9° /s

0.1° ~ 9° /s

Tilt Speed

4° /s

4° /s

0.1° ~ 4° /s

Preset

50

/

0.1° ~ 4° /s

Auto Scan

1

/

1

Cruising Track

1

/

1

Lens Control

Support with lens control interface

/

Support with lens control interface

Protocol

Peclo P/D, KVSECURITY

KVSECURITY, Peclo P/D

Peclo P/D, KVSECURITY

OSD

English/Chinese

English/Chinese

English/Chinese

Commnication

RS485

RS485

RS485

AUX Relay Output

2 groups

2 groups

2 groups

General

　

Power Supply

AC 24V ±10%

AC 24V ±20%

Power Consumption

≤70W

Working Temperature

-35ºC ~ 65ºC (with heating system)

Working Humidity

≤90% RH (No condensing, no heating)

Protection Level

IP66

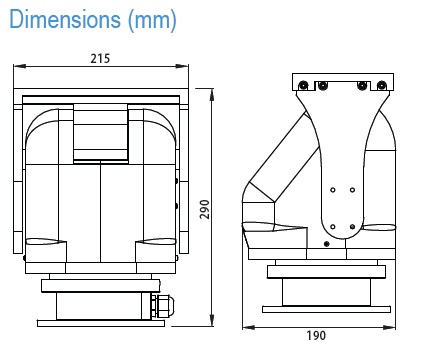

Dimensions

215(L) x 190(W)x290(H) mm

Material

Aluminum alloy

Weight

9.5kgs

Accessories

Model

IR LEDs

F01

Housing

K4718, K4722

Wall Mount Bracket

K2770
