2 Channels 960P (AHD) SD Card Mobile DVR Email to a Friend

SKU: KMD12

Market: US$ ~~0.00~~

Price: US $ 96-144

Buy one or more calculated by the wholesale price

Starting from 2 Units

GPS:

Yes已选中
No已选中

WIFI:

Yes已选中
No已选中

G-Sensor:

Yes已选中
No已选中

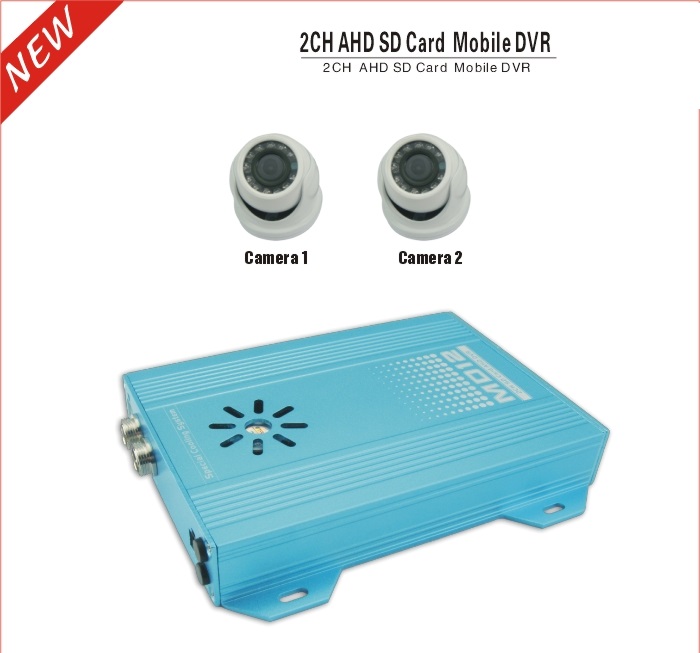

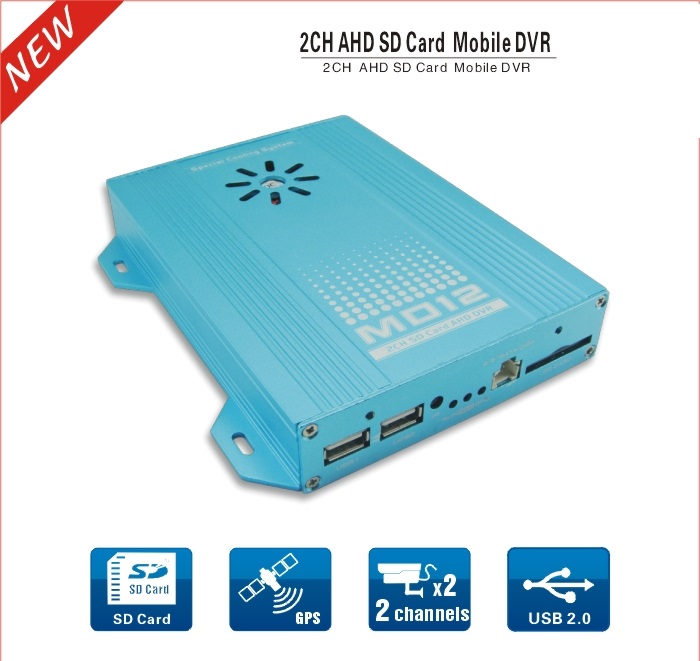

KMD12 is a new generation of 2 channels digital video recorder.By adopting advanced dual-core technology, KMD12 trully realizes 2 channales real time record(audio and viedo)simultaneously.

Features
Specifications
Dimensions
Application
Payment & Shipping

1.Supports 2ch audio and 2ch full real time videos at 720P(AHD),the videos support synchronous code playing back.

2.The system adopts H.264 video compression technology, which will save two-third storage capacity.

3.Supports one SD/SDHC Card up to 128GB

4.Supports GPS option, which will automatically update the system data and time, and the moving path can be tracked when playing back the videos on PC.

5.Supports power off delay after ACC+ is disconnect, the power off delay time will be optional according to the range: 0~1439(minute)

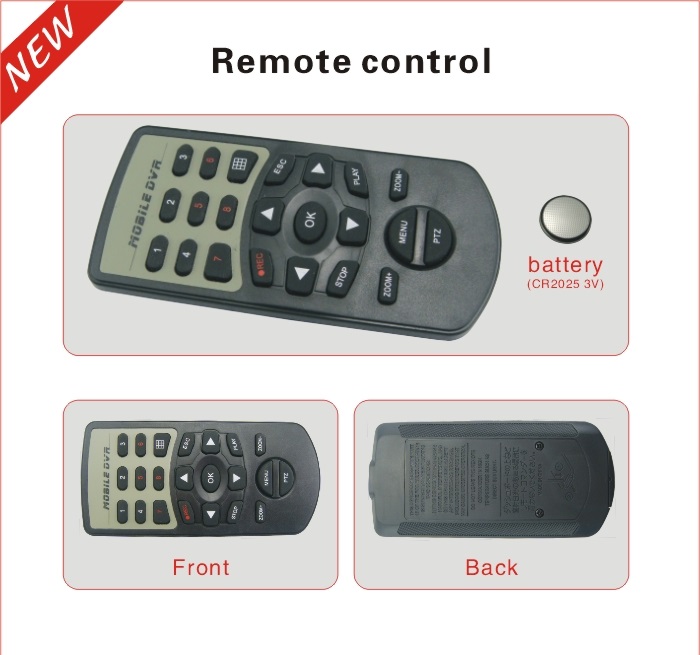

6.Operation mode: IR remote control

8.supports boot record, every seconds' images will be recorded.

9.The channel title and device ID/car license number can be set by user.

10.With the cooling system including cooling fin and cooling fan, to make sure the whole system operate well.

Technical parameters
Parameters	Descriptions
Model	KMD12HD	Basic model(with basic functions such as REC,PLAYBACK,ALARM,USB,IR,HDD,SD)
	KMD12HDG	With GPS
Power Supply	Car battery(For mobile monitoring)/Power adapter(For other applications)
Power input	DC12V~DC36V(Standard power input:DC12V~DC24V, ultimate power input: DC8V~DC38V)
Working Current	Model	the reference voltage is:DC24V
	KMD12HD	300 ±10 mA
	KMD12HDG	380 ±10 mA
Power output	DC12V/3A (Provide power for cameras,with built in re-settable fuses. )
Working temperature	- 10℃~ + 50℃ (ultimate working temperature: - 20℃~ + 60℃)
Video Technology	H.264(Data encryption, need to use the playback software to play the videos)
Storage/interface	Standard SATA II HDD interface, SD Card and USB devices
Storage Capacity	2.5’’ SATA II 4TB HDD/128GB SD/SDHC Card(suggest to use the SD Card with the speed over Class10)
Storage mode	Boot record, cycle recording
Camera	AHD_M standard cameras
Video Standard	PAL system or NTSC system (Please make sure the camera’s video standard Compatible to the DVR
Video input	Input standard: input frequency: Vp-p=1.0V, input impedance: 75Ω
Resolution	2ch AHD 720P full real time recording, also support the playback function while recording.
Frame rate	PAL(1~100FPS optional)and NTSC(1~120FPS optional)
Video quality	Multi-grade adjustable
Output signal	CVBS(2ch video + 2ch audio,but only support 1ch audio output at a same time)
USB Standard	2 USB 2.0 port(support USB back up and system upgrade)
IR Receiver	One IR receiver(beside the USB port)
DVR dimension	15513326mm
mainframe weight	Around 400g
