2CH D1 DVS IP Video Server KQD02 Email to a Friend

SKU: KQD02
Market:  US$    0.00
Price:  US  $ 84.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
2CH FULL D1 ,25/30FPS,H.264,Multi-stream ;
Mobile phone,ONVIF,UPNP, 2 Channel alarm in/out put,Support SD card storage(32G),
2 Channel Audio in(BNC interface), 1 Channel Audio out(3.5mm interface),
RS485 PTZ Control,WIFI(Option),DC12V
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
      Support D1 recording, line scanning realtime video output, support Half-D1、CIF、QCIF;
      Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams
      Support multiple audio compression algorithms e.g. G.726, G.711 and ADPCM, providing clearer voice.
      Support two way audio
      The most advanced network delivery server technology ,Easily achieve more user access , Multi-stage user password rights management.
      Built in Web Server, through the IE browser easy to realize the remote control Settings prison see operation.
      Support facilities remote security upgrade function.
      Support DDNS ,PPPoE and(UPnP),Support Lan ,Wan transport.
      Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network.
      Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
      Support mobile detection / image shielding / image snapshot.
      Functions of auto recovery in abnormality and auto reconnection in network breakdown.



Model

KQD02

Vide&Audio input

Video input

2ch, BNC(1.0Vp-p,75Ω)

Audio input

2chlinear)

Two way audio input

1ch (linear)

Video&Audio output

Two way audio output

1ch(linear)

Video&Audio parameters

Video Compression

H.264 Main Profile@Level 3.0 /MJPEG optional

Resolution

D1/H-D1/CIF/QCIF

Frames

PAL: 1-25 frames/second, NTSC: 1-30 frames/second

Video bit rate

16K4Mbps,customized

Bit stream type

Compound streams / video stream

Audio compression

G.726, G.711 and ADPCM, optional

Audio bit rate

816kbps

Triple bit streams

Support

Functions

PTZ

Support

Heartbeat mechanism

Support

IP auto pop-out

IP auto pop-out at customer end

Password protection

Multi-level protection on password

Intellectual alarm

Mobile detection, video shielding, video loss, network breakdown, abnormality in storage

Basic functions

One-key reset, password protection, watermark technology

Storage

Type

SD card

Max.Capacity

32GB

External ports

Network port

1pc, RJ45 10M/100Mbps self-adaptable Ethernet port

Serial port

1pc, standard RS485 serial port

Alarm input

4ch

Alarm output

4ch

Wireless network

WIFI

Support802.11b/g/n protocol, 2.4GHz, max wireless distance 100m (optional)

Wireless encryption protocol

Support WPA, WPA2, WEP encryption protocol (optional WIFI)

3G network

N/A

Cell phone monitor

Support

Others

Power supply

DC12V/2.0A

POE

N/A

Power consumption

≤8W

Working temp.

-10℃ ~ +55 ℃

Working humidity

10 ~ 85%

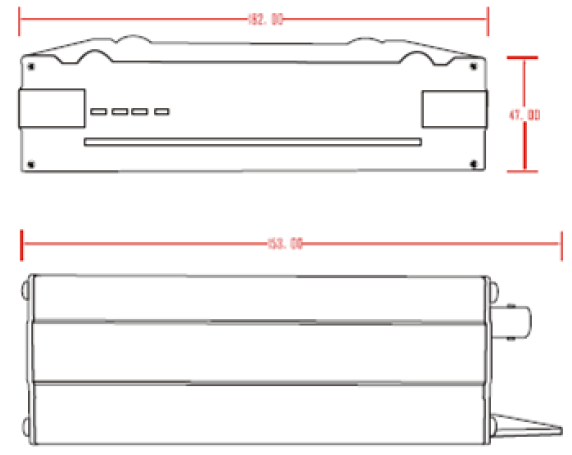

Dimension

(L)153*(W)182*(H)47mm

Weight

0.71kg



Payment Method:

1.TT By Bank:


Beneficiary's Name: FUZHOU GULOU KROVISION TRADING CO.,LTD
Beneficiary's Account No: 43010078814400003252
SWIFT: SPDBCNSH430

2.Western Union:

First name:DENGBIAO
Last name:LU
Country:CHINA

3.Paypal:


Credit Card

Paypal Account: kvspay@gmail.com



Shipping Method:
1.By Express Delivery: DHL,UPS,TNT,Fedex,EMS
Door To Door Service.Take 3-7 business days,used mostly.

2.By Air:

Customer will pick up the cargo at the airport.Take 1-2 weeks.For the weight>100kg.

3.By Post Mail:

Door To Door Service.Take 2-4 weeks.For the weight<2kg.

Shipping Cost:
Please summit your order and offer your contact information:delivery address,telephone/cell phone,receiver...
We should calculate the shipping cost  according to the weight of the shipment.The default shipping way is the cheapest one.


Delivery Date:
Before you place order,please confirm the delivery date with our stuff.
Some items are in stock,the others will be arranged production.
We should report exact date for you after receiving information for the model and its quantity.
