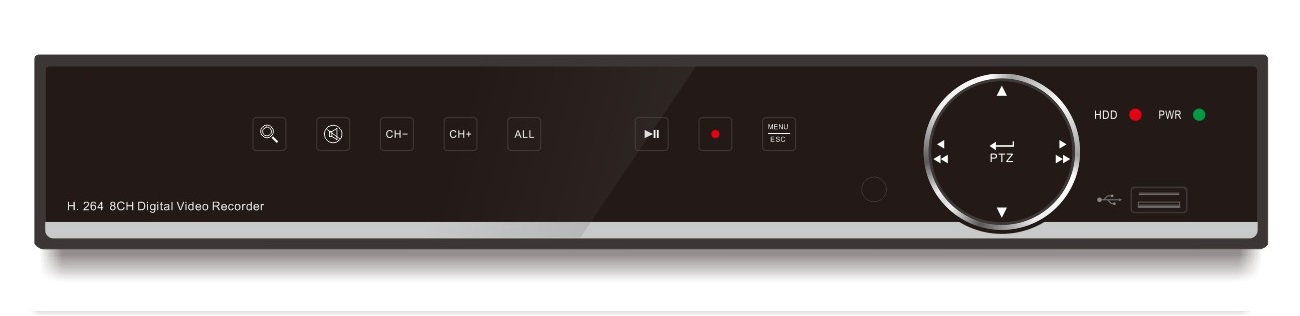

8CH AHD DVR Professional Full 4MP AHD/Analog/IP Hybrid K2108S Email to a Friend

SKU: K2108S
Market:  US$    0.00
Price:  US  $ 185.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
Chipset: 2pcs* HI3531A
Video in: 8ch ; Audio in: 8ch Video out: VGA / HDMI
IP Cameras: 8 ; PTZ: YES ;
Recording resolution and speed:
Analog :4MP@25fps 1080P / 720P/960H@25fps
IP :4MP/3MP1080P/720P/960H @25fps
Dimension: 380x340x50mm
Power supply: 12V 5A
Sensor&Alarm: 8ch
HDD: 2HD
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
Display Resolution
Analog :4MP/3MP(30fps))
1080P/720P/960H
IP:4MP/3MP1080P/720P/960H
Record resolution
Analog :4MP/3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P/960H
Record speed
Analog :4MP:30fps(each ch)
3MP:30fps(each ch)
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)
960H:PAL:25fps(each ch)/NTSC:30ps(each ch)
IP: PAL:25fps(each ch)/NTSC: 30fps(each ch)
Maximum output Brandwidth
96Mbps
Maximum decode performance
4MP:8CH realtime
1080P:8CH realtime
Recording Mode
Continuous/Manual/Motion detect
HDD interface
2SATA HDDs, up to 12TB
Dimension(WxDxH)
378x340x50mm

Model

K2108

K2108S

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Analog video-input /output

8CH inputs / VGA and HDMI output

IP Video Input

8ch,(only IP up to 8ch)

Composite Video Input

up to 16ch (Analog video + IP video)

Audio input /output

8CH inputs /1CH output(RCA)

Display

resolution

Analog :4MP/3MP(30fps))
1080P/720P/960H
IP:4MP/3MP1080P/720P/960H

feature

1/4/6/8/9/10/13/14/16/S.E.Q.

Record

resolution

Analog :4MP/3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P/960H

speed

Analog :4MP:30fps(each ch)
3MP:30fps(each ch)
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)
960H:PAL:25fps(each ch)/NTSC:30ps(each ch)
IP: PAL:25fps(each ch)/NTSC: 30fps(each ch)

IP-Recording Bandwidth
(Maximum input Bandwidth)

64Mbps

Maximum output Brandwidth

96Mbps

Maximum decode performance

4MP:8CH realtime
1080P:8CH realtime

Recording Mode

Continuous/Manual/Motion detect

Synchronous Playback

8CH

Network Type

Lan, DHCP, and DDNS

HDD interface

2SATA HDDs, up to 12TB

Multiplex Operation

live display, record, playback, backup and network

USB

1xUSB3.0 1*USB2.0(for mouse and backup/upgrade)

Sensor & Alarm I/O

8CH inputs /1CH output

PTZ Control

yes (RS485)

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA/HDMI

1280*1024， 1440*900， 1280*720， 1920*1080 ，1680*1050，1600*1200， 1920*1200， 2560*1440 ，3840*2160

Power Supply

DC 12V/5A

Dimension(WxDxH)

378x340x50mm

Working Temperature

 -10°C~+55°C

Working Humidity

10%~90%
