* 3.5" LCD screen, multi-language menu
* Test video signal strength
* Video Generating, PAL / NTSC multi-system color bar video generator
* PTZ control, adjust the zoom & iris & focus, set and call preset position, scan PTZ address code
* LED lighting
* 10x video enlarge
* Test LAN & TEL cable and show image
* USB interface, TF card storage
* PING IP address of IP camera, intelligent scan IP address
* Check if IP address is occupied, search network switcher port (send signal to let network switcher's indicator flash)
* POE test, 2 custom shortcut keys
* DC 12V/1A emergency power output
* Test audio from the front-end pickup device
* Size: 175mm x 94mm x 36mm
(The network testing function is for test IP address & netwoork cable signal, but not for test IPC video)

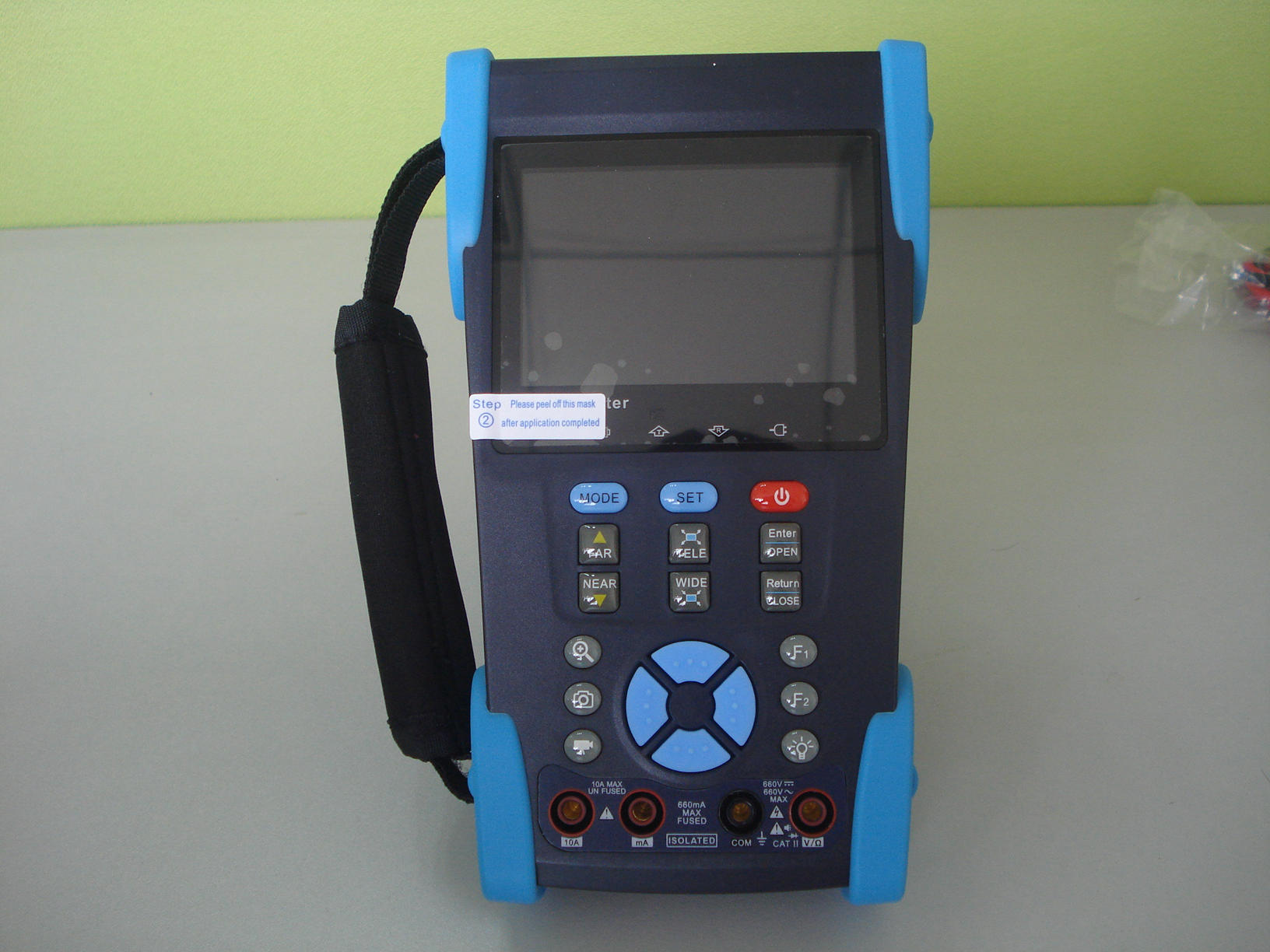

The new CCTV tester is developed for the On-Site installation and maintenance of IP camera，analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, IP address scan, Video snapshot, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable’s break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
1 . Video signal testing
² The new cctv tester, built-in high definition 3.5”LCD-TFT 480（RGB）x320
full-view display screen, easy and directly displays the camera image quality
² Support PAL/NTSC
² LCD screen brightness/Contrast/Color Saturation adjustable. Suitable for field construction and maintenance work
2. Video signal level test
Test video signal strength attenuation, longer video signal cable will cause the image to be dim, and reduce the image dynamic range, video signal is too strong, it will cause the virtual shadow, and reduce the sharpness of the image.
It also can real-display the video level value, if out of range, notices will be display in the screen.
3. PTZ controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.
4. Enhanced Color bar generator
Video Generating, the PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful imagines). By receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for Video transmission of the field tests, such as optical video transmitter and receiver, video cable etc.
The new function color bar can test the image whether shift.
The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc.
5. DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
6. Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
7. Cable tester
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.
8. PTZ controller
Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test the PTZ control command data whether received anomaly and RS485/RS232 data transmission.
Screen displays 16 hexadecimal codes such as
PELCO-P：A0 00（Add） xx xxxxxx AF xx
PELCO-D：FF 01（Add）xx xxxxxxxx
9. PTZ address scanning
Search up the ID of PTZ camera. Help the engineer search the speed dome address quickly
10. Image magnification（10xZoom）
Set image 10x zoom, can view and display the details by 1x、2x、3x、4x、5x、6x - 10X zoom in the monitor and tester
11. Video snapshot
Capture the video image and save the current video frames as JPEG file
12. Video record
Record and save the current video in the SD card
13. Video playback
Video image and record files are saved in the SD card. Storage file directory can be created according to the date.
14. Port flicker
The tester will send special signals to make the connected POE port flicker at special frequency, which will enable the installers to easily and quickly find the connected ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.
15. IP address scan
In digital IP surveillance applications, if IP camera’s IP address is not clear or forgotten; the device cannot be used .
IP address scan can quickly search the connected IP camera or other network device’s IP address.
16. Link monitor
To add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied.
17. PING test
PING is the most conventional network debugging tools; It is used for testing if the connected IP camera or other network equipment’s ethernet port is working normally and the IP address is correct.
18.POE tester
It can test the PoE voltage when the POE switch is supplying the POE power to IP camera. It can clearly display the power+ and power- on the ethernet cable pins, each cable pin’s voltage and the failure connection of cable pin series numbers.
19. LED lamp
It is useful for the Engineer to install and maintain security system at night. LED On/Off pressing button, easy operation.
20. F1、F2 User-defined shortcut keys
The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.
21. TDR Break-point and short-circuit measurement (optional function refer to the last page)
New function: TDR cable testing, accurately measure BNC cable, network cable, control cable break-point and short-circuits location. It improves working efficiency.
