* Designed and produced by RatingSecu, the first rotating bracket.
* 255 degrees horizontal rotate, can set limit position of left and right end as per your application need.
* Built-in intelligent decoder plate, can set preset position, tour scan route, home place.
* Horizontal rotating speed adjustable, 3 levels of 6 ° / sec, or 12 ° / sec, or 20 ° / sec.

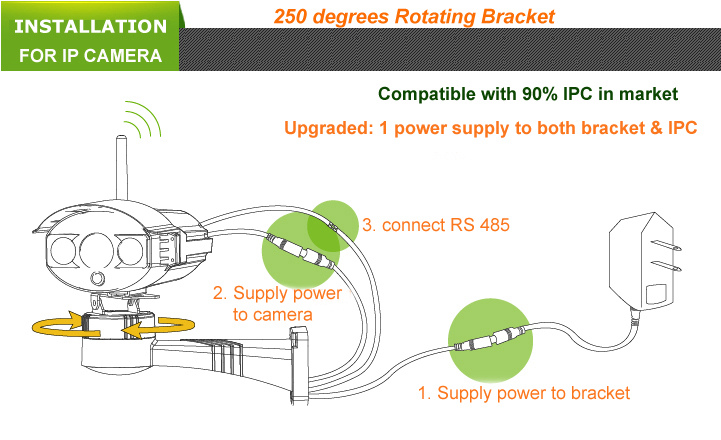

* No need complicated wiring, easily upgrade fixed camera to be movable.
* Only need the IPC with RS 485, easily realize to control the bracket via IPC clients, NVR, smart phone APP.
* Use DC 12V power supply + RS 485 control method.
* Can directly connect to our IPC's RS485 and DC 12V power output, provide power to bracket at the same time.

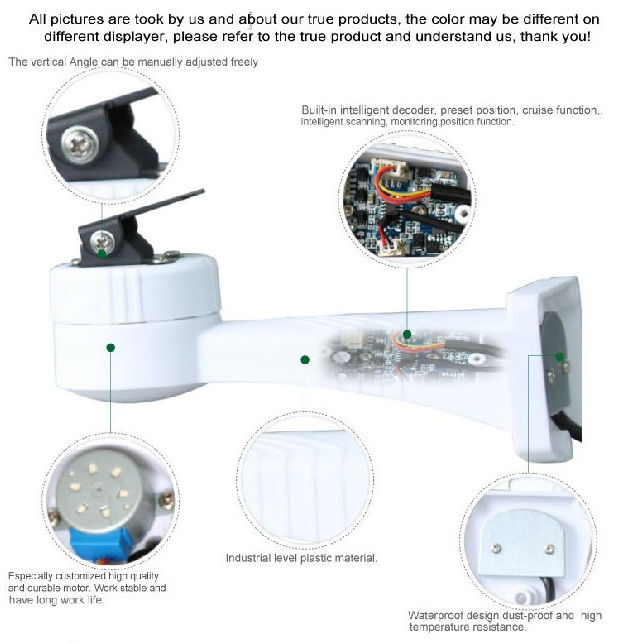

* High quality motor, stable performance and long lifetime.
* Power consumption only DC 12V / 70 mA, use the same power supply with IPC.

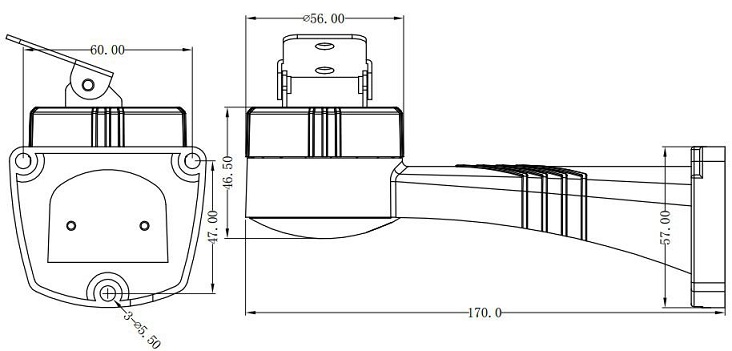

* Length 170mm, light and easy use, compatible with most security camera in the market.
* Waterproof, dust-proof, use high quality ABS, can bear weight of 3KG.
|
Item
|
Data
|
|
Horizontal rotate angle
|
255°
|
|
Rotate speed
|
6°/ 12°/ 20° optional
|
|
Limited position
|
Left & right limited position, Free adjustable
|
|
Limited position auto scan
|
3 level adjustable
|
|
Preset position
|
8 preset position
|
|
Preset position route
|
1 tour route, 3 level of rotate speed
|
|
fixed monitoring position
|
Yes
|
|
Manual homing feature
|
yes
|
|
Control wire
|
RS485
|
|
Interface
|
Power interface + RS485
|
|
Power input
|
DC 12V±5% / 100mA
|
|
Power consumption
|
0.9W
|
|
Work environment
|
-25℃-55℃,less than 95% (no condensation)
|
* Can decrease camera quantity in project, then decrease project cost, let integrator have more advantages than their competitor.
* Specially suitable for indoor, change camera's visible range to be wide and improve definition.
E.g. When you want wide angel indoor, you often choose a 3.6mm lens camera, but the definition can not be very good, if you choose a 6mm lens camera with this PT bracket, definition is better, although the 6mm lens can not reach the angle of 3.6mm lens, but the PT bracket make the biggest monitoring range to be 255 degrees.
* Competitive price, only designed by us, unique but easy to use, help your installation to be easier, gain more praises from users.
