Medium-Duty Variable High Speed Pan Tilt K3051 Email to a Friend

SKU: K3051
Market:  US$    0.00
Price:  US  $ 761-822

Buy one or more calculated by the wholesale price

Starting from 2 Units

Heater:
  • Yes已选中
  • No已选中
HD Network:
  • Yes已选中
  • No已选中
Quantity: Unit(s)
   Compare   Add to wishlist
• Top payload or double payload, max load 15kgs
• Variable speed: Pan 0.1°-60°/s; Tilt 0.1°-30°/s
• 360° continuous rotation, tilt angle: -75°/-+40°
• 80 Preset, 5 auto scan, 8 cruising track
• IP66, working temperature: -35°-+65°
• 24VAC power input
  • Features
  • Specifications

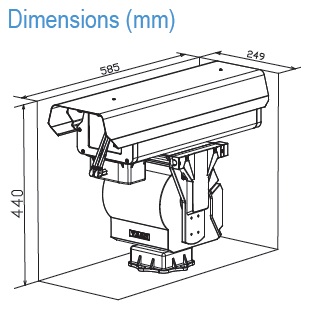

  • Dimensions

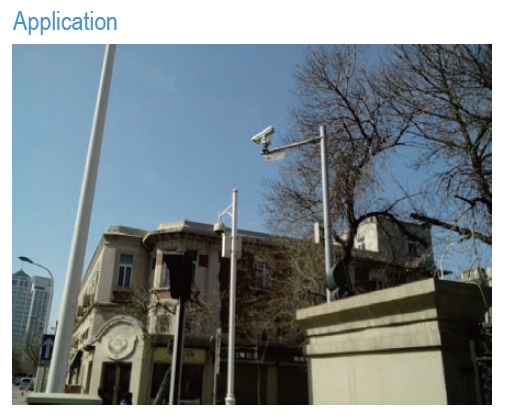

  • Application
  • Payment & Shipping
• Variable speed, maximum 15kgs top load
• Internal cable wring from pan tilt to housing, only available with KVSecurity housing
• 360° continuous rotation, Pan: 0.01° ~60° /s, Tilt: 0.01° ~30° /s
• Up to 80 presets, 5 auto scans, 8 cruising tracks
• Support angle return function
• Anti-surge, lighting protection, pass EMC test
• Optional IR illuminator, housing, bracket
• IP66 waterproof


Model

K3051

PTZ

　

Angle Return

Support with Pelco D, default enquiry return(Real time angle return is available)

Load Type

Top load

Max. Load Weight

15kgs

Angle Control

Support

Pan Rotation Range

0° ~ 360° continuous

　

Pan Tilt & Housing Series Tilt Pan

Tilt Rotation Range

Top load: -75° ~ +40° (Optional -90° ~+ 40°)

Pan Speed

0.01° ~60° /s

Tilt Speed

0.01° ~30° /s

Lens Control

Support with default lens control interface

Preset

80

Auto Scan

5

Cruising Track

8

Guard Location

Call preset, cruise track or atuo scan if there is no command in a period of time

Protocol

Peclo P/D, KVSECURITY

OSD

English/Chinese

Commnication

RS485

Relay AUX Output

2 groups (Extentable to 4 gourps without heating, or 3 groups with heating)

General

　

Power Supply

AC 24V ± 25%

Power Consumption

≤85W (Heating system off), ≤95W(Heating system on)

Protection Level

IP66

　

249(L) x 230(W)x302(H) mm

Material

Aluminum alloy

Weight

13kgs

Accessories

Model

IR LEDs

F01

Housing

K4718, K4722, K4218

Wall Mount Bracket

K2770


Payment Method:

1.TT By Bank:

Beneficiary's Name: FUZHOU GULOU KROVISION TRADING CO.,LTD
Beneficiary's Account No: 43010078814400003252
SWIFT: SPDBCNSH430

2.Western Union:
First name:DENGBIAO
Last name:LU
Country:CHINA

3.Paypal:


Credit Card

Paypal Account: kvspay@gmail.com



Shipping Method:
1.By Express Delivery: DHL,UPS,TNT,Fedex,EMS
Door To Door Service.Take 3-7 business days,used mostly.

2.By Air:

Customer will pick up the cargo at the airport.Take 1-2 weeks.For the weight>100kg.

3.By Post Mail:

Door To Door Service.Take 2-4 weeks.For the weight<2kg.

Shipping Cost:
Please summit your order and offer your contact information:delivery address,telephone/cell phone,receiver...
We should calculate the shipping cost  according to the weight of the shipment.The default shipping way is the cheapest one.


Delivery Date:
Before you place order,please confirm the delivery date with our stuff.
Some items are in stock,the others will be arranged production.
We should report exact date for you after receiving information for the model and its quantity.
