Light-Duty Variable High Speed PTZ Camera K3040 Email to a Friend

Model

K3040

Camera

SONY FCB-EX985

SONY FCB-EX1020

KVS BDM-S362

Image Sensor

1/4-type Super HAD CCD II

1/4-type EXview HAD CCD

1/4" 760H CCD

Effective Pixels

440,000 pixels (PAL)

380,000 pixels(NTSC)

Horizontal Resolution

550TVL(color), 570TVL(B/W)

550TVL(color), 570TVL(B/W)

540TVL(color), 560TVL(B/W)

Scanning System

Progressive Scan

Interlace Scan

Progressive Scan

Electronic Shutter Speed

1/1 sec to 1/10,000 sec, 22 steps

1/50 sec ~1/10000 sec

Min. Illumination

1.4 lux (F1.6, 50IRE)

0.65 lux (F1.35, 50IRE)

0.01 lx(ICR ON 1/50 Sec)

S/N Ratio

More than 50 dB

Video Output

BNC(1.0Vp-p/75 ), PAL / NTSC

Lens

Zoom

28X optical/12X digital

36X optical/12X digital

23X optical/12X digital

Focal Length

3.5mm ~ 98.0mm

3.4mm ~ 122.4mm

3.84mm ~ 188.4mm

Max Aperture

F1.35 ~ F3.7

F1.6 ~ F4.5

F1.6 ~ F3.7

Focus Control

Auto/Manual

Angle of View

H:55.8° ~ 2.1°

H:57.8°~ 1.7°

H:53.5° ~ 2.0°

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Auto/Manual

Gain Control

Auto / Manual

Noise Reduction

2D/3D

3D-DNR

Privacy Masking

Up to 24 areas

Support

Image Stabilization

Electronic Image Stabilizer (EIS)

PTZ

Pan Rotation Range

0° ~ 360° continuous

Tilt Rotation Range

-78° ~ 0° (Optinal 30° tilt angle )

Manual Control Speed

Pan: 0.1° ~60° /s; Tilt: 0.1° ~30° /s

Preset

80

Auto Scan

8

Cruising Track

8

Guard Location

Call preset, cruising track or atuo scan if there is no command in a period of time

Protocol

Peclo P/D

Wiper

DC12V drive

Commnication

RS485/RS422

Relay AUX Output

2 groups

General

Power Supply

AC 24V ±20%

Power Consumption

≤60W (Heating system off), ≤100W(Heating system on)

Working Environment

Working temperature: -35ºC ~ 60ºC; working humidity: ≤90% RH

Protection Level

IP66

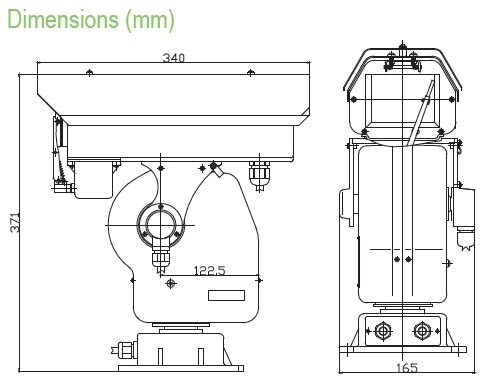

Dimensions

340(L) x 165(W)x371(H) mm

Material

Aluminum alloy

Weight

6.8kgs (Including default housing)

Accessories

Model

Housing (Default)

K4512

Wall Mount Bracket

K2770
