1CH D1 DVS IP Video Server KQC01S Email to a Friend

SKU: KQC01S
Market:  US$    0.00
Price:  US  $ 46.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
1 Channel FULL D1,25/30fps,H.264, Multi-stream, Mobile phone,ONVIF,UPNP,RS485 PTZ Control,WIFI(Option),DC12V
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
Support D1 recording, line scanning realtime video output, support Half-D1、CIF、QCIF;
    Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams
    The most advanced network delivery server technology ,Easily achieve more user access , Multi-stage user password rights management.
    Built in Web Server, through the IE browser easy to realize the remote control Settings prison see operation.
    Support facilities remote security upgrade function.
    Support DDNS ,PPPoE and(UPnP),Support Lan ,Wan transport.
    Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network.
    Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
    Support mobile detection / image shielding / image snapshot.
    Functions of auto recovery in abnormality and auto reconnection in network breakdown.



Model

KQC01S

Vide&Audio input

Video input

1ch, BNC(1.0Vp-p,75Ω)

Audio input

N/A

Two way audio input

N/A

Video&Audio output

Two way audio output

N/A

Video&Audio parameters

Video Compression

H.264 Main Profile@Level 3.0 /MJPEG optional

Resolution

D1/H-D1/CIF/QCIF

Frames

PAL: 1-25 frames/second, NTSC: 1-30 frames/second

Video bit rate

16K4Mbps,customized

Bit stream type

Compound streams / video stream

Audio compression

N/A

Audio bit rate

N/A

Triple bit streams

Support

Functions

PTZ

Support

Heartbeat mechanism

Support

IP auto pop-out

IP auto pop-out at customer end

Password protection

Multi-level protection on password

Intellectual alarm

Mobile detection, video shielding, video loss, network breakdown, abnormality in storage

Basic functions

One-key reset, password protection, watermark technology

Storage

Type

N/A

Max.Capacity

N/A

External ports

Network port

1pc, RJ45 10M/100Mbps self-adaptable Ethernet port

Serial port

1pc, standard RS485 serial port

Alarm input

N/A

Alarm output

N/A

Wireless network

WIFI

Support802.11b/g/n protocol, 2.4GHz, max wireless distance 100m (optional)

Wireless encryption protocol

Support WPA, WPA2, WEP encryption protocol (optional WIFI)

3G network

N/A

Cell phone monitor

Support

Others

Power supply

DC12V/1.5A

POE

N/A

Power consumption

≤3W

Working temp.

-10℃ ~ +55 ℃

Working humidity

10 ~ 85%

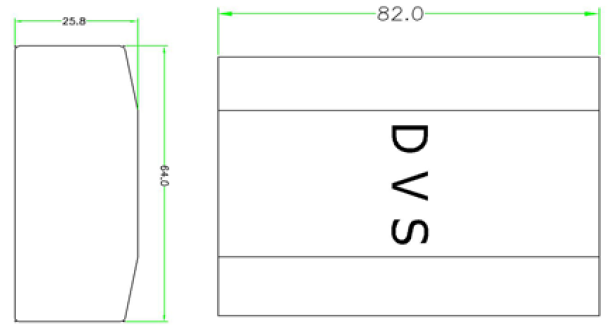

Dimension

(L)82*(W)64*(H)25.8mm

Weight

0.28kg
