8CH NVR 720P realtime 1HDD 4CH Playback KQN5F081 Email to a Friend

SKU: KQN5F081
Market:  US$    0.00
Price:  US  $ 52.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
8CH 720P realtime at same time
4 channels at same time
1xHDMI, 1x VGA, 1x CVBS, 1x BNC(audio), 1xBNC(voice intercom)
support 1pc 3TB, 1U case
Dual-stream (sub-stream ¡Ü 4CIF), 10M/100M adaptive Ethernet port ( network video access bandwidth 64Mbps)
  • Features
  • Specifications

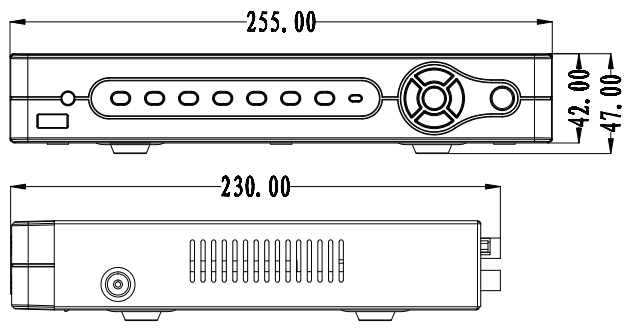

  • Dimensions
  • Application
  • Payment & Shipping

Up to 8 channel with 720p realtime live view
 H.264/MPEG-4 dual codec decoding
 Up to 5MP resolution
 Max support 4CH@720P preview & recording
 HDMI / VGA / BNC simultaneous video output
 4 channel synchronous realtime playback
 ONVIF Version 2.1 conformance
 Support 1 SATA HDDs up to 3TB
 Multiple network monitoring: Web viewer, CMS & Mobile





KQN5F081

System

Operating System

Embedded LINUX

Video & Audio

IP Camera Input

8ch

Two-way Talk

1 channel Input, 1 channel Output, BNC

Display

Interface

1 HDMI, 1 VGA, 1 BNC

Resolution

800*600;1024*768;1280*1024;1440*900;1920*1080

Display Split

1/4/8

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.264£¨High Profile@Level4.2£©/ MPEG-4

Resolution

5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)

Record Rate

Max 4CH@720P

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording£¬Alarm£¬Video Push£¬Email, Buzzer

Video Detection

Motion Detection¡¢Video Loss¡¢HDD Loss

Alarm Input

4 channel

Relay Output

1 channel

Playback & Backup

Sync Playback

1/4

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / Network

Network

Ethemet

RJ-45 port (10/100M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS

Max.User Access

20 users

Mobile Phone

IPhone, IPad, Android

Storage

Internal HDD

1 SATA ports,  up to 3TB

Auxiliary Interface

USB Interface

2 ports (1 Rear), USB2.0

RS232

Yes

RS485

1 port, For PTZ control

General

Power Supply

NVR£ºDC12V/2A£¬

Power Consumption

10W(without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W*D*H)

1U£¬375x276x51 (mm)

Weight

1.5-2.0kg(without HDD)
