18X Analog Explosion Proof PTZ Camera K3033V Email to a Friend

SKU: K3033V
Market:  US$    0.00
Price:  US  $ 1493.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
Ex-Proof Certificate:CNEX certification
Camera:18X optical zoom/ 12x digital zoom
316L stainless steel 18X optical zoom, 12x digital zoom
Rotation speed：Pan 0.05°~30°/s；Tilt0.05°~30°/s
360° continuous pan rotation
± 90° tiltl rotation
IP68 protection
Built-in wipe for lens Built-in heater ONVIF compliant
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
• Explosion proof level: ExdIICT6/DIP A20 TA，T6
• Electro-polished stainless steel meterial
• Powerful 28x/36x optical zoom
• High resolution of 550TVL(Color), 570TVL(B/W)
• 360° continuous rotation, Pan: 0.01° ~30° /s; Tilt: 0.01° ~30° /s
• Up to 80 presets, 8 auto scan, 8 cruising track
• Anti-surge, lighting protection, pass EMC test
• IP67 waterproof
Model K3033V
Explosion Proof
Ex-Proof Level ExdIICT6/DIP A20 TA,T6
Enclosure Material Stainless steel 304 or 316L
Window Material Toughened glass with double-side Nano coating
Surface Polishment Electro-polished
Protection Level IP67
Camera SONY FCB-EX985 SONY FCB-EX1020
Image Sensor 1/4-type Super HAD CCD II 1/4-type EXview HAD CCD
Effective Pixels 440,000 pixels (PAL) 440,000 pixels (PAL)
380,000 pixels(NTSC) 380,000 pixels(NTSC)
Horizontal Resolution 550TVL(color), 570TVL(B/W)
Scanning System Progressive Scan Interlace Scan
Electronic Shutter Speed                              1/1 sec to 1/10,000 sec, 22 steps
Min. Illumination 1.4 lux (F1.6, 50IRE) 0.65 lux (F1.35, 50IRE)
S/N Ratio                                                            More than 50 dB
Video Output                                   BNC(1.0Vp-p/75 ), PAL / NTSC
Lens
Zoom 28X optical/12X digital 36X optical/12X digital
Focal Length 3.5mm ~ 98.0mm 3.4mm~ 122.4mm
Max Aperture F1.35 ~ F3.7 F1.6 ~ F4.5
Focus Control Auto/Manual
Angle of View H:55.8° ~ 2.1° H:57.8°~ 1.7°
Camera Features
Day/Night                Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D / 3D
Image Stabilization Electronic Image Stabilizer (EIS)
PTZ
Angle Return  Support with Pelco D, default enquiry return
Angle Control Support
Pan Rotation Range 0° ~ 360° continuous
Tilt Rotation Range  -90° ~ +90°
Rotation Speed  Pan 0.01° ~30° /s, tilt 0.01° ~30° /s
Preset 80
Auto Scan 8, based on OSD menu
Cruising Track 8, each with 80 presets postions
Patter Tour 1 or 200 commands
Guard Location Call 1 preset, 1 cruise track, 1 atuo scan or 1 pattern tour if there is no command in a period of time
Alarm 2 channel inputs/2 channel outputs (Optional)
Protocol Peclo P/D
Wiper Control Support
Commnication RS485/RS422
Relay AUX Output 2 groups
General
Power Supply AC 24V ±25%
Power Consumption ≤ 90W
Working Environment Working temperature: -20oC ~ 60oC
  Working humidity: ≤90% RH (No condensing, no heating)

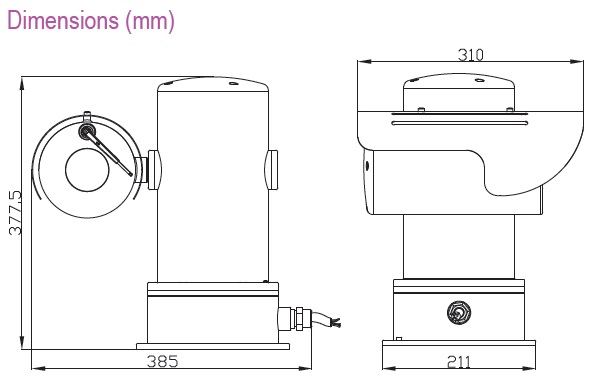

Dimensions 385(L) x 310(W)x377.5(H) mm
Max. Camera Space 120(L) x 70(W)x70(H) mm
Weight 25kgs
