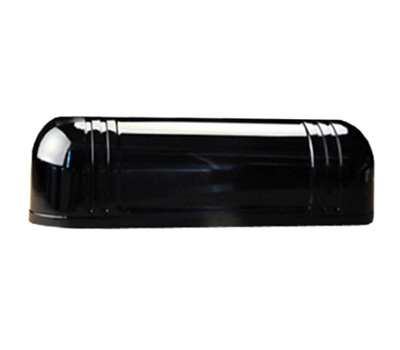

Three beams detector KBE31 Email to a Friend

SKU: KBE31

Market: US$ ~~0.00~~

Price: US $ 19.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

KBE three beams digital infrared shooting outdoor detection,50, 100, 150, 200, 250 meters optional

■ anti-lightning circuit design

■ professional anti-jamming optical cover

■ High-power infrared transmitter tube and receiving tube

■ included the accessories.

Type	Three-beam photoelectric detector
Outdoor detection range	50/100/150/200/250meters optional
Number of beams	3-beam
Beam frequency	Fixed frequency
Detection method	3 beams blocked simultaneously detecting type
Induction speed	50-700msec adjustable
Emitter current (DC12V time)	10-18MA ( DC12V time ）
Light receiver operating current (DC12V time)	Alarm 70MA, 30MA static
Supply Voltage	AC13.8-18V DC12-24V
Operating Temperature	﹣25℃-﹢55℃
Humidity	≤95%
Anti-white light Level	6500LUX
Alarm output	1C relay contact output NO or NC contact capacity AC, DC30V 0.5AMax
Alarm trigger time	50-700msec adjustable
Alarm Duration	2±1S
Tamper output	1B contact output, DC30V/0.5A MAX
Buzzer Prompt	NO
Optical adjustment angle (horizontal)	180°（±90°）
Optical adjustment angle (vertical)	20°（±10°）
Environment adaptive	NO
Optical Sight	Detachable
Anti-EMI, RFI interference	√
The main material	ABS
Shell material	PC Engineering Plastics
Enclosure rating	IP55
Other additional features	Light indication, OK indication, test terminal
Size（mm)	2658583
