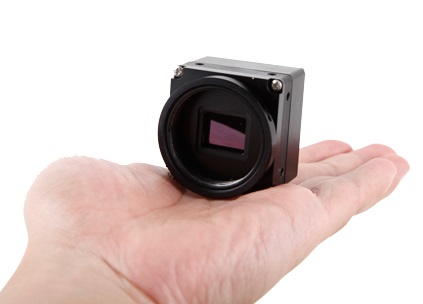

Thermal Imaging Module KD840 Email to a Friend

SKU: KD840
Market:  US$    0.00
Price:  US  $ 1407-3562

Buy one or more calculated by the wholesale price

Starting from 2 Units

Resolution:
Quantity: Unit(s)
◆Pixle:17um
◆Power:1.5W
◆Volt DC4.5V-5.5V
◆Resolution Optional:
384*288
640*480
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping

◆Pixle:17um
◆Power:1.5W
◆Volt DC4.5V-5.5V
◆Resolution Optional:
384*288
640*480

Items
Technical specifications
KD880
KD840
Detector characteristics
Detector type
Uncooled FPA microbolometer
Array size
384×288
640×480
Pixel
17um
17um
Spectral range
8~14um
Temp control
TEC
NETD
≤60mK(f/1,300K,25-50Hz)
Thermal time constant
≤5ms
Image characteristics
Frame rate
50Hz
Display resolution
768×576
640×480
Analog video output
PAL
Digital Videooptional
14-bit/8-bit(BIT656)
Gain/Brightness adjustment
Manual brightness/gain ;auto brightness/manual gain;auto brightness/gain
Digital zoom
X1/X2/X3/X4
Calibration
Manual and Auto
System
characteristics
Communication Protocol
PELCO-D
Image Enhancement
YES,enhance the ability to detect the small object
Image Filter
YES,Digital filter
Polarity inversion
White/black hot mode
Power supply
External power
DC 5V±0.2V
Power consumption
≤1.5W(normal atmospheric temp)
≤2W(normal atmospheric temp)
Electrical interface
Power interface
YES
Analog video output
YES
Digital Video output
14bit
Serial port
TTL 3.3V UART
Environment
Operation temperature
     -15℃~ +50℃                         (Can expanded to -40℃~ +60℃)
Storage temperature
-40℃~ +70℃
Humidity
5~95%,Non condensing
physical characteristics
Sizemm
W40mm× H41mm× D35mm
Weight
≤76g(including housing、shutter)
Lens mount interface
M34×0.75 ;screw thread
Mechanical interface
2×M3(four sides);screw hole

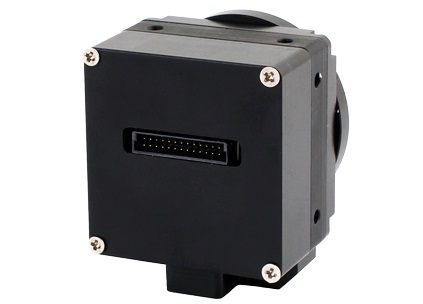

Electrical connector
26 pins connector(including cable)
