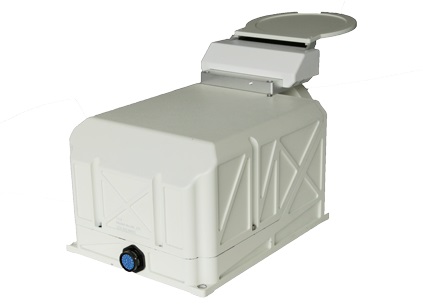

Online observation thermal imaging camera KDM600 Email to a Friend

SKU: KDM600
Market:  US$    0.00
Price:  US  $ 85539-119265

Buy one or more calculated by the wholesale price

Starting from 2 Units

Resolution:
Quantity: Unit(s)
◆Three FOV
◆IP67Inbreaking Protection
◆Resolution Optional:
320×256 cooled sensor
640×512 cooled sensor
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping

◆ 600mm focal length, ultra long-range observation distance

◆ 15KM vehicle/30KM medium vessel security detection

◆ Triple FOV, meets the different requirement of detection ,recognition, identification

◆ FOV switch time <1S

◆ Digital Detail Enhancement(DDE)

◆ Multiple user defined auto mode, meets different targets observation requirement in different environment.

◆ RS422 remote control

◆ Rugged housing,compact structure,high protection encapsulation(IP67)

Item

Specification

Detector

Detector type

HgTeCd Cooled FPA detector

Array size/format

320×256

640×512

Pixel pitch

30μm

15μm

Image characteristics

Field of view(FOV)

WFOV: 11°×8.8°
MFOV: 2.2°×1.76°
NFOV: 0.92°×0.73°

Focal length

50/250/600mm

Spatial resolution

WFOV:0.6mrad
MFOV 0.12 mrad
NFOV 0.05mrad

FOV switch time

≤1s

NETD

≤35mk@30℃,F4

Frame frequency

50Hz

Focus

Auto/Electrical manual focus

Spectral range

3.7~4.8μm

Thermal operation

Starting time

<8min(In normal temperature 25 degrees)

Brightness/gain adjustment

manual brightness/gain adjustment;auto brightness/gain adjustment

auto brightness/gain configuration adjustment

2 fix pattern,8 user defined setting pattern

Polarity reversal

Black hot/White hot

Zoom

2x

Noise reduction

Yes

DDE

Yes

Calibration

Automatic and manual calibration

Crosshair

Display/Hidden

Power system

External power supply

24±3V DC

Power consumption

<14W(In normal temperature 25℃ normal work)

Environment

Operating temperature

-40℃~ +55℃

Storage temperature

-45℃~+65℃

Encapsulation

IP67

Physical Characteristics

Weight

≤7Kg

Dimension

320mm×226mm×168mm

Interface

Power interface

Yes

Video output

PAL

Communication protocol

PELCO-D/P , KVS

Remote Control

RS485


Suitable for border, maritime, ports and islands where require day and night security surveillance.
