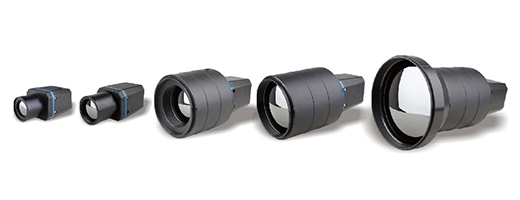

Online observation thermal imaging camera KD150 Email to a Friend

Items

KD09

KD18

KD37

K-D50

KD75

KD100

KD150

Detector characteristics

Detector type

Un-cooled FPA micro-bolometer

Resolution

384×288

Detector pitch

25μm

NETD

≤100mK@f/1,300K

Frame rate

50Hz

Spectral range

8~14μm

Lens

Focal length

9mm

18mm

37mm

50mm

75mm

100mm

150mm

FOV

61.1°*45.8°

30.6°*22.9°

14.8°*11.1°

11°*8.2°

7.3°*5.7°

5.4°*4.1°

3.6°*2.7°

Lens type

Athermalized lens

Motorized

Thermal image adjust

Gain/brightness adjustment

Manual adjust brightness/gain; Automatic adjust brightness and manual adjust gain; Automatic adjust brightness/gain modes

Image polarity

White hot / Black hot

Digital Zoom

2x

Calibration function

Automatic/manual adjust

Noise reduction

Yes

Image enhancement

Yes

Automatic brightness/gain configuration adjustment

2 fixed patterns, 8 user-defined modes

Grey Alarm

Integrated with module, 6 level of grey grade

Power supply

Input voltage

10~15V DC

Power consumption

＜5W(Normal operating at 25℃ ambient temperature condition)

Environment

Operating temperature

-20℃~+50℃

Storage temperature

-40℃~+70℃

Physical characteristic

Weight

<500g

<600g

<650g

<650g

<1650g

<1650g

<2100g

Size

124*Φ40

132*Φ44

132*Φ53

145*Φ60

186.9*Φ113

206.3*Φ113

284.5*Φ149

Interface

External DC input

Yes

Analog video

PAL

Alarm

Switch signal output(grey level alarm)

Lens zoom

Yes

Lens focus

Yes

Lens zoom preset

Yes

Lens focus preset

Yes

Serial port

RS485(PELCO-D/P)

Observation range ( m )

1.8x0.5m Human(detection)

330m

660m

1340m

1800m

2700m

3600m

5600m

2.3x2.3m Car(detection)

425m

850m

1700m

2300m

3480m

4600m

7100m

1.8x0.5m Human(Identification)

110m

220m

445m

600m

900m

1200m

1800m

2.3x2.3m Car(Identification)

212m

425m

850m

1150m

1740m

2300m

3550m
