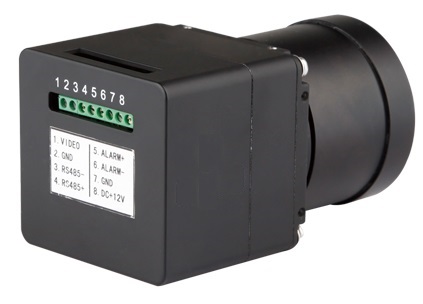

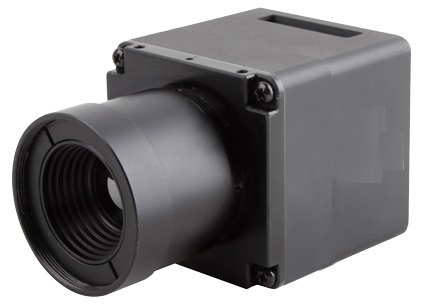

Online observation thermal imaging camera KDL-Buy CCTV Products KVSecurity

Online observation thermal imaging camera KDL Email to a Friend

SKU: KDL

Market: US$ ~~0.00~~

Price: US $ 1946-2700

Buy one or more calculated by the wholesale price

Starting from 2 Units

Lens:

◆Resolution：384X288
◆Pixle：25um
◆Power：4.5W Max6W
◆Greay Level Alarm
◆Size：56mmX54mmX92mm

◆ 384×288, Uncooled FPA microbolometer

◆ Small size, able to be integrated with different speed dome and housing

◆ Athermalized lens, focus free

◆ Control by RS485, and PELCO-D/P protocol

◆ Come with grey alarm with its grade settable

◆ Optional lens available

Items		KDL09	KDL18	KDL37		KDL50
Detector characteristics	Detector type	Uncooled FPA microbolometer
	Array size	384×288
	Pixel	25um
	NETD	≤100mK@f/1,300K
	Frame rate	50HZ
	Spectral range	8-14μm
Lens	Focal length	9mm	18mm	37mm		50mm
	FOV	61.1°*45.8°	30.6°*22.9°	14.8°*11.1°		11°*8.2°
	Fixed focus range	0.8m~∞	3m~∞	12m~∞		23m~∞
	Lens type	Athermalized lens
Measurement	Gain/Brightness adjustment	Manual brightness/gain ；auto brightness/manual gain；auto brightness/gain
	Polarity inversion	White/black hot mode
	Digital zoom	2X
	Calibration	Automatic/manual
	Noise reduction	Yes
	Image enhancement	Yes
	Automatic brightness/gain configuration adjustment	2 fixed patterns, 8 user-defined modes
	Grey alarm	Built-in function，6 grade
Power supply	External power	DC10V-15V
	Power consumption	≤2.5W(Normal operating at 25℃ ambient temperature condition)
Environment	Operation temperature	-20℃-+50℃
	Storage temperature	-40℃-+70℃
Physical Characteristic	Weight	≤520g
	Dimension	92mm36mm / 92mm44mm / 100mm53mm / 112mm60mm
Interface	Power supply interface	Yes
	Video output	PAL
	Alarm interface	Turn on/off signal（For grey alarm）
	Remote control interface	RS485（PELCO-D/P）
Observation range	1.8x0.5m Human(detection)	330m	660m		1340m	1800m
	2.3x2.3m Car(detection)	425m	850m		1700m	2300m
	1.8x0.5m Human(Identification)	110m	220m		445m	600m
	2.3x2.3m Car(Identification)	212m	425m		850m	1150m
