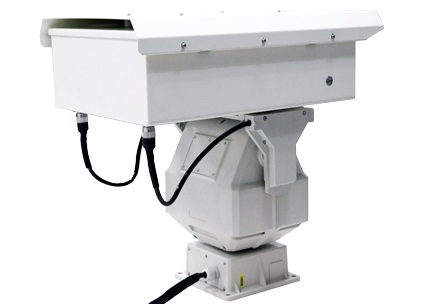

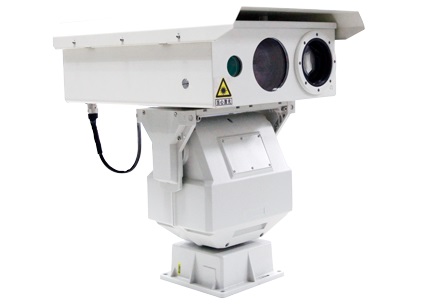

Analog Dual Vision Thermal Camera System KXP150 Email to a Friend

SKU: KXP150
Market:  US$    0.00
Price:  US  $ 21340.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
150mm and 60mm Dual FOV
◆Thermal:Uncooled 384X288
◆CCD:43X
◆PTZ: 360`
◆Dual Chanle Video Output
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
150mm and 60mm Dual FOV
◆Thermal:Uncooled 384X288
◆CCD:43X
◆PTZ: 360`
◆Dual Chanle Video Output
Items
KXP150
KNP150
Two head surveillance system
Thermal imaging camera
Detector type
Amorphous Silicon mirco-bolometer FPA
Spectral range
8~14μm
Pixels
384×288
Pixel size
25μm
Focus length
150mm
FOV
9.17°×6.88°/3.67°×2.76°
Video output
PAL
Frame rate
50Hz
Image polarity
Black hot/White hot
Digital zoom
X2
Visual camera

camera
Resolution
752(H)x582(V)
1920(H)×1080(V)
Pick-up device
1/4 “Ex-view HAD PS Color CCD
1/2.8" Progressive Scan CMOS
Lens
3.5-138.5mm,X43 optical
4.5-129mm,X30 optical zoom
Horizontal resolution
Color 600TVL,B/w700TVL
210万1/2.8" CMOS ICR D/N IP camera
Focus
Auto
IRIS
Auto
Pan-tilt
Horizontal angle of rotation
0~360° continuously rotation
Vertical angle of rotation
-45°~+45°
Horizontal rotation speed
0.01°~30°/S
Vertical rotation speed
0.01°~15°/S
Preset
80
Auto scan
1
Auto tour
1
Material
Aluminum
Housing
Color
White
Material
Aluminum
Sun shield
Yes
System characteristic
Dimension
680mm×450mm×650mm
Protection level
IP66
Weight
50kg
Working Temp
-20°C~60°C
Storage Temp
-40°C~70°C
System interface
Video
PAL  2 CHS
H.264/MPEG4
Com
RS485
RJ45
Protocol
PELCO-D
TCP/IP ,IPv4/v6,ONVIF、PSIA、CGI
Baud rate
2400/4800/9600 bps
-
Power supply
AC 24V
Power consumption
<300W(add heater )


Payment Method:

1.TT By Bank:


Beneficiary's Name: FUZHOU GULOU KROVISION TRADING CO.,LTD
Beneficiary's Account No: 43010078814400003252
SWIFT: SPDBCNSH430

2.Western Union:

First name:DENGBIAO
Last name:LU
Country:CHINA

3.Paypal:


Credit Card

Paypal Account: kvspay@gmail.com



Shipping Method:
1.By Express Delivery: DHL,UPS,TNT,Fedex,EMS
Door To Door Service.Take 3-7 business days,used mostly.

2.By Air:

Customer will pick up the cargo at the airport.Take 1-2 weeks.For the weight>100kg.

3.By Post Mail:

Door To Door Service.Take 2-4 weeks.For the weight<2kg.

Shipping Cost:
Please summit your order and offer your contact information:delivery address,telephone/cell phone,receiver...
We should calculate the shipping cost  according to the weight of the shipment.The default shipping way is the cheapest one.


Delivery Date:
Before you place order,please confirm the delivery date with our stuff.
Some items are in stock,the others will be arranged production.
We should report exact date for you after receiving information for the model and its quantity.
