◆ 384 x 288 uncooled FPA detector

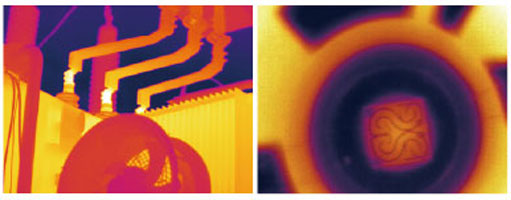

◆ Real time image
◆ Front end temperature measurement, high accurate.
◆ MPEG4 online video record and transmission.
◆ Auto Focus
◆ Multiple ports, easy for integration.
◆ offer SDK free.
Item |

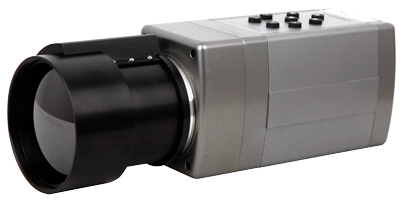

KDM60 |
|
Detector characteristics |
Detector |
Uncooled FPA microbolometer |
resolution |
384×288 |
|
Pitch size |
35μm |
|
Spectral range |
8~14μm |
|
Thermal Image |
IFOV |
0.88mrad |
FOV/Min Foucs |
16°×12°/0.5m |
|
Thermal sensitivity |
≤0.06℃@30℃ |
|
Frame Frequancy |
50/60HZ |
|
Focus |
Auto/Manual focus |
|
Measurement Function |
Measurement range |
-20 ℃~+500 ℃ |
measurement correction |
Auto/Manual |
|
Measurement accuracy |
±2℃ or ±2% of reading, whichever is greeater |
|
Measurement mode |
Up to 4 movable spots. Up to 3movable areas |
|
Color Palette |
11 palettes available(including iron red, rainbow,balck/white etc) |
|
image adjustment |
Auto/manual Gain,brightness |
|
Setup function |
Temperature unit,language,IP address |
|
Emissivity correction |
Variable from 0.01to 1.0 |
|
ambient temperature correction |
Automatic correction according to user input. |
|
Atmospheric transmission correction |
automatic correction according to the user input of object distance,relative humidity,ambient temperature |
|
Image storage |
Raw image capture |
Raw images realtime transfer cia client control software,the images are analyzable and measureable |
Image storage |
MPEG-4ideorecording raw data transmission. Single image capture BMP |
|
Power Supply |
Power in |
10~15V DC |
Power consumption |
≤6W(@ 25℃normal operation) |
|
Environment |
Operating temperature |
-15℃~ +50℃ |
Storage temperature |
-40℃~+60℃ |
|
Encapsulation |
IP40 |
|
Physical characteristics |
Weight |
≤1.09Kg(W/O lens) |
Size |
260mm×92mm×82mm |
|
Interface |
Power port |
YES |
Analog video output |
PAL/NTSC |
|
Digital video output |
RJ-45 Ethernet output, H.264 digital video / raw measurement data |
|
Serial Port |
RS485 |
|
Ethernet Port |
RJ-45 to transfer the image ,data and device control |
|
Alarm output |
I/O alarm output |
