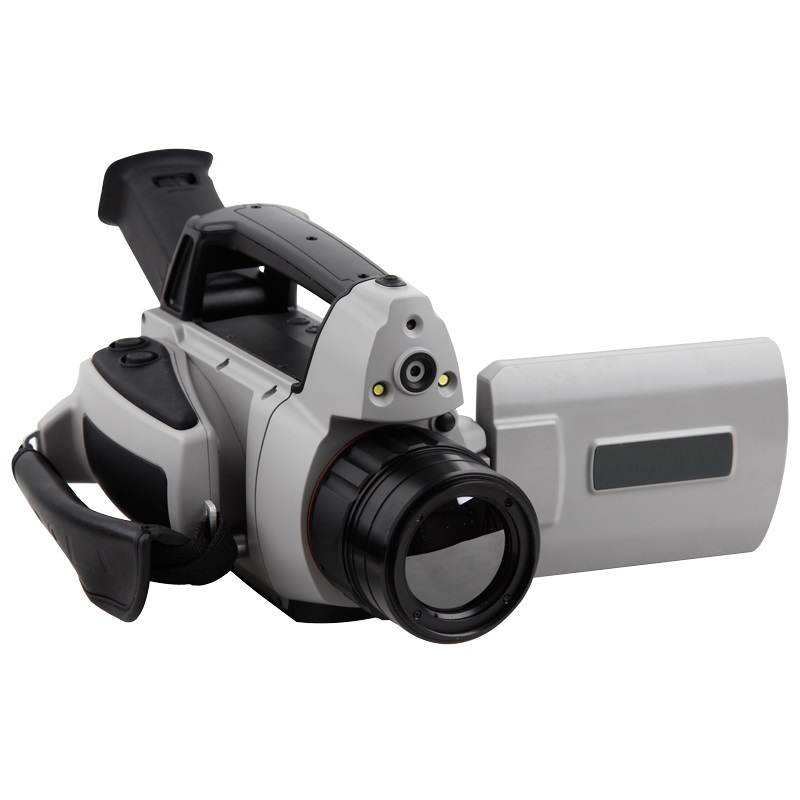

Portable HD infrared camera K708 Email to a Friend

Technical Specification

K708

Detector characteristics

Detector type

Un-cooled FPA micro-bolometer

Array size/format

640x480

Image characteristics

Field of view/min focus distance

25°×19°/0.3m

Spatial resolution（IFOV）

0.65mrad

Thermal sensitivity

≤0.03℃@30℃

Frame frequency

50/60Hz

Focus

Auto/Manu electronics focus

Digital zoom

8×,continuous zoom

Spectral range

8-14um

Built-in CCD camera

5.0 million pixels, LED lights

Image display

LCD display

5’’ High resolution color touch LCD, 800 x 480


Fast switch between infrared image and CCD image, with fusion and picture in picture function

Measurement

Temperature ranges

-40℃- +650℃

Accuracy

± 2 °C or ± 2% of reading, Whichever is greater

Measurement correction

Automatic / manual

Measurement mode

Up to 10 movable spots. Up to 5 movable areas(maximum, minimum and average temperature). movable lines. Line profile. Isotherms. Temperature difference. Alarm(voice, color)

Image control

Color palette 11 palettes changeable

Auto/manual gain and brightness

Setup functions

Date/time, temperature unit, language

Emissivity correction

Variable from 0.01 to 1.0

Background temperature correction

Automatic corrections according to user input

Atmospheric transmission correction

Automatic correction according to user input object distance, humidity and temperature

Image storage

Storage card

CF card(8G)

Mode

Auto/manual saving, single thermal images and CCD image link saving, thermal and CCD fusion saving.

Thermal image format

JPEG (with radiometric information)
MPEG4(with radiometric information)

CCD image format

JPEG、MPEG4

Voice annotation

Input via built-in microphone up to 60 seconds of digital voice clip per image stored with image

Text annotation

Yes

Laser pointer

Laser locator

Class 2, 1mw/635nm(red), IEC 60 285

Power source

Battery type

Li-Ion, rechargeable

Battery operating time

3 hours continuous operation

Battery charging mode

Intelligent charger or power adaptor 12V(optional) to random charge

Power saving

Auto-sleep and auto-shut down

External power

10-15V DC

Environment

Operating temperature

-15℃-+50℃

Humidity

≤90％ (non-condensing)

Encapsulation

IP54

Physical characteristics

Tripod mounting

1/4"-20-UNC

Weight

1.7kg

Dimension

245*180*150mm

External DC input

YES

Video output

PAL/NTSC

Communication port

Bluetooth;RJ45
