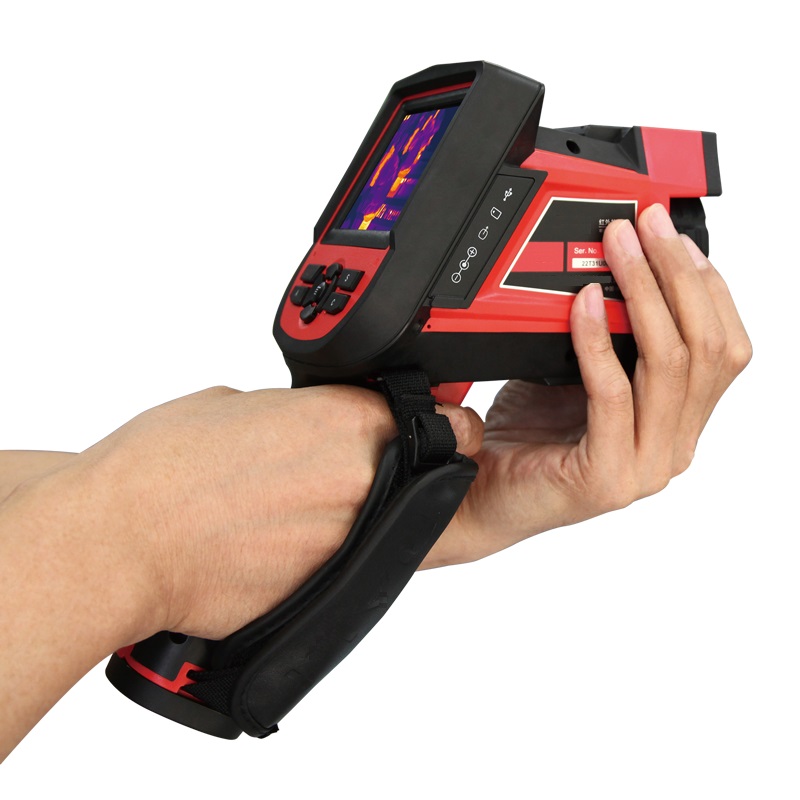

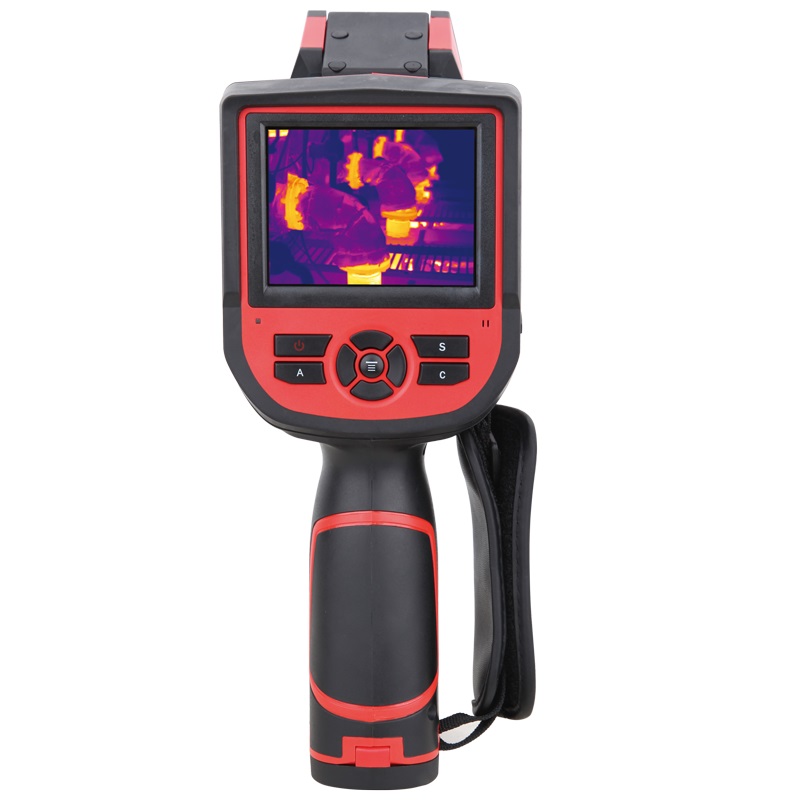

Handheld thermal imaging camera KT31 Email to a Friend

SKU: KT31
Market:  US$    0.00
Price:  US  $ 1084.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
Resolution：uncooled 160×120
FOV/Min focuse range:25°×19°/0.1m
Thermal Sensitivity：≤0.06℃@30℃
Temperature Range:-20℃-+350℃
Screen：3.5” TFT colorful LCD 640*480
Drop test：2 meters
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
Resolution：uncooled 160×120
FOV/Min focuse range:25°×19°/0.1m
Thermal Sensitivity：≤0.06℃@30℃
Temperature Range:-20℃-+350℃
Screen：3.5” TFT colorful LCD   640*480
Drop test：2 meters
Items
Technical Specification
KT31
Detector characteristics
Detector type
Un-cooled FPA micro-bolometer
Array size/format
160×120
Image characteristics
Field of view/min focus distance
25°×19°/0.1m
Spatial resolution（IFOV）
2.72mrad
Thermal sensitivity
≤0.06℃@30℃
Frame frequency
50/60Hz
Focus
Manual
Spectral range
8-14um
Image display
LCD display
3.5" TFT LCD, 640 x 480
Measurement
Temperature ranges
-20℃- +350℃
Accuracy
± 2 °C or ± 2% of reading, Whichever is greater
Measurement correction
Automatic / manual
Measurement mode
1 movable spots, Hottest spot/coldest spot tracking,1 movable areas (maximum, minimum and average temperatures),Alarm(voice, color)
Image control
6 color palettes changeable
Image adjustment  Auto/manual gain and brightness
Setup functions
Date/time, temperature unit, language
Emissivity correction
Variable from 0.01 to 1.0
Background temperature correction
Automatic corrections according to user input
Atmospheric transmission correction
Automatic correction according to user input object distance, humidity and temperature
Image storage
Storage card
8G SD card, max 16G
Storage mode
Manual/Auto single file saving
File format
Thermal: JPEG with original thermal measurement data included
Power source
Battery type
Li-Ion, rechargeable
Battery operating time
3 hours continuous operation
Battery charging mode
Intelligent charger or power adaptor 12V(optional) to random charge
Power saving
Auto-sleep and auto-shut down
External power
10-15V DC
Environment
Operating temperature
-15℃-- +50℃
Storage temperature
-40℃-- +70℃
Humidity
Operating and storage：≤90％ non-condensing
Encapsulation
IP54
Drop test
2m
Anti-shock
25G，IEC68-2-29
Vibration resistance
2G，IEC68-2-6
Physical characteristics
Weight
980g
Dimension
105*245*230mm
Interface
SD card slot
Micro SD card slot
External DC input
YES
Video output
YES
USB
Image, measurement data transfer
Tripod
1/4″-20-UNC


Payment Method:

1.TT By Bank:

Beneficiary's Name: FUZHOU GULOU KROVISION TRADING CO.,LTD
Beneficiary's Account No: 43010078814400003252
SWIFT: SPDBCNSH430

2.Western Union:
First name:DENGBIAO
Last name:LU
Country:CHINA

3.Paypal:


Credit Card

Paypal Account: kvspay@gmail.com



Shipping Method:
1.By Express Delivery: DHL,UPS,TNT,Fedex,EMS
Door To Door Service.Take 3-7 business days,used mostly.

2.By Air:

Customer will pick up the cargo at the airport.Take 1-2 weeks.For the weight>100kg.

3.By Post Mail:

Door To Door Service.Take 2-4 weeks.For the weight<2kg.

Shipping Cost:
Please summit your order and offer your contact information:delivery address,telephone/cell phone,receiver...
We should calculate the shipping cost  according to the weight of the shipment.The default shipping way is the cheapest one.


Delivery Date:
Before you place order,please confirm the delivery date with our stuff.
Some items are in stock,the others will be arranged production.
We should report exact date for you after receiving information for the model and its quantity.
