4 Channels 960P (AHD) HDD Mobile DVR Email to a Friend

SKU: KX9

Market: US$ ~~0.00~~

Price: US $ 162-182

Buy one or more calculated by the wholesale price

Starting from 2 Units

GPS:

Yes已选中
No已选中

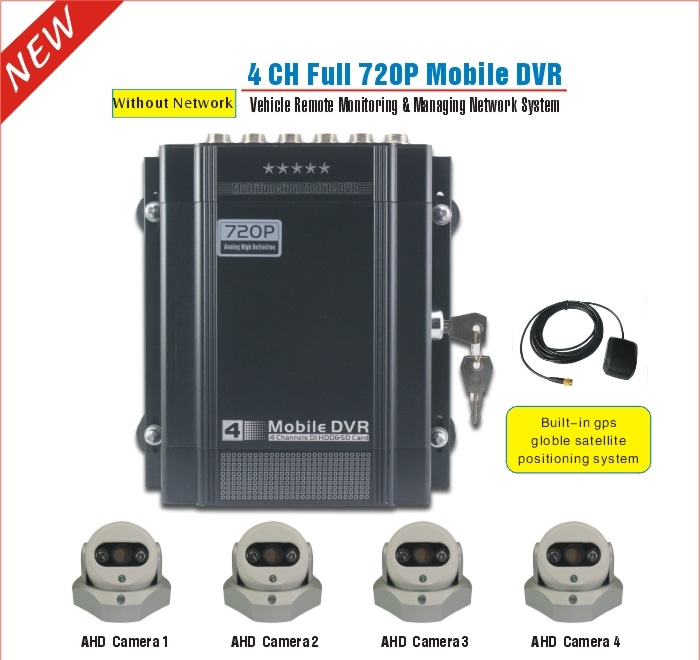

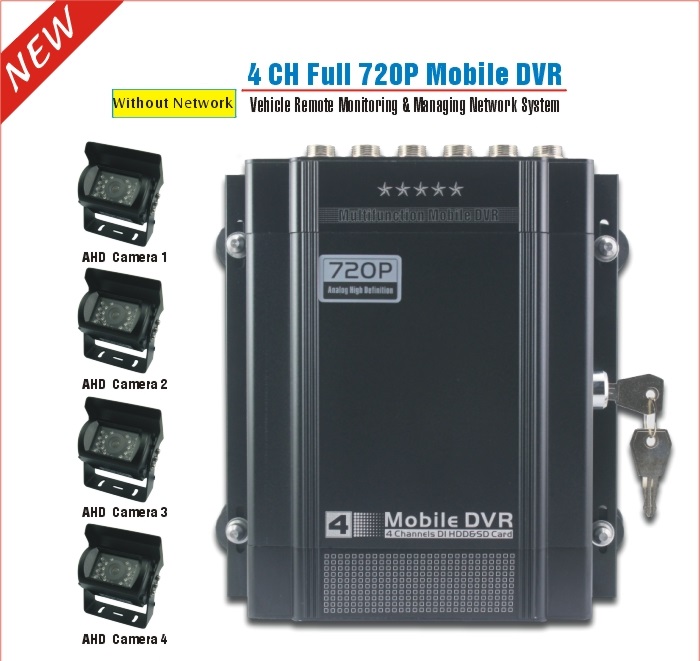

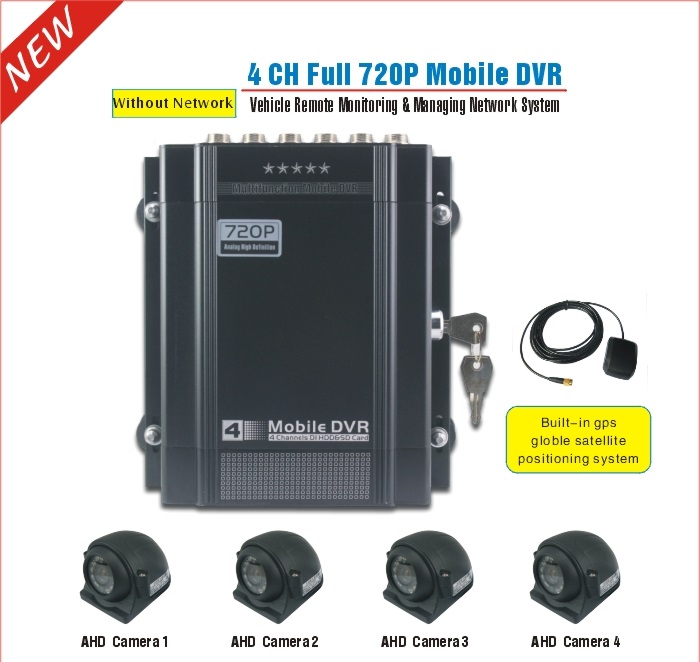

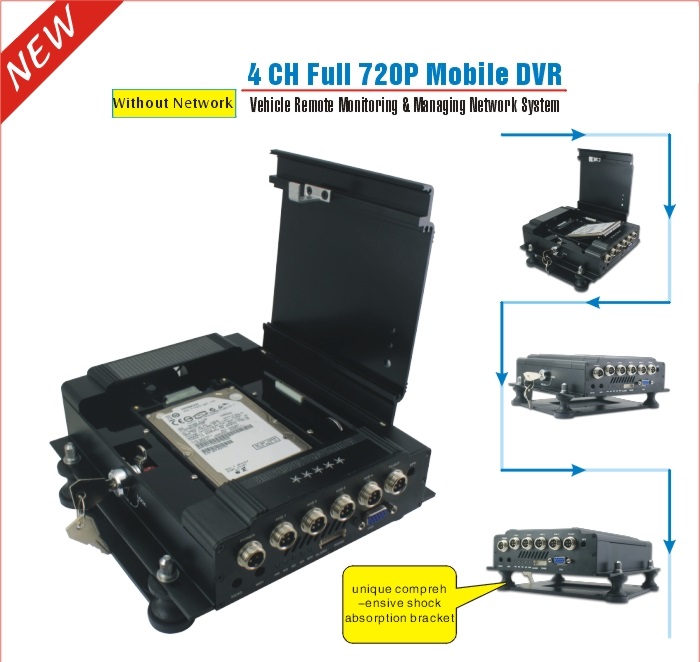

KX9 is new generation 4 channels full AHD (720P/960P Analog High Definition) , full real-time (PAL 25 FPS；NTSC 30 FPS) HD network mobile monitoring recording device developed on the base of HUAWEI Hilion high performance CPU, H.264 video compression technology and mobile internet technology.KX9 comes with powerful functions, better compatibility, easy operation, full external interface. Customers can choose GPS function freely according to practical needs. KX9 support max 4TB HDD and 128G SD card, compatible with ADH camera and normal analog camera,adopt KVSecurity unique full angle, suspension rubber damping system to protect HDD.

Features
Specifications
Dimensions
Application
Payment & Shipping

1.The hardcore adopts ARM11 (main frequency 600 MHZ) professional high-performance processor, equipped with 2 gbit (256 MB) high-speed DDR3 RAM;

2.Supports 4CH AHD (Analog High Definition)720P video recording, downward compatibility 960H,D1, VGA,HD1 and CIF video recording;

3.Adopts h.264MP (Main Profile Level5.0) video compression technology,which will save two-

third storage capacity;

4.Supports GPS and automatically update date/time.Can use Google map to track the moving path when playback videoes or remotely monitor on PC;

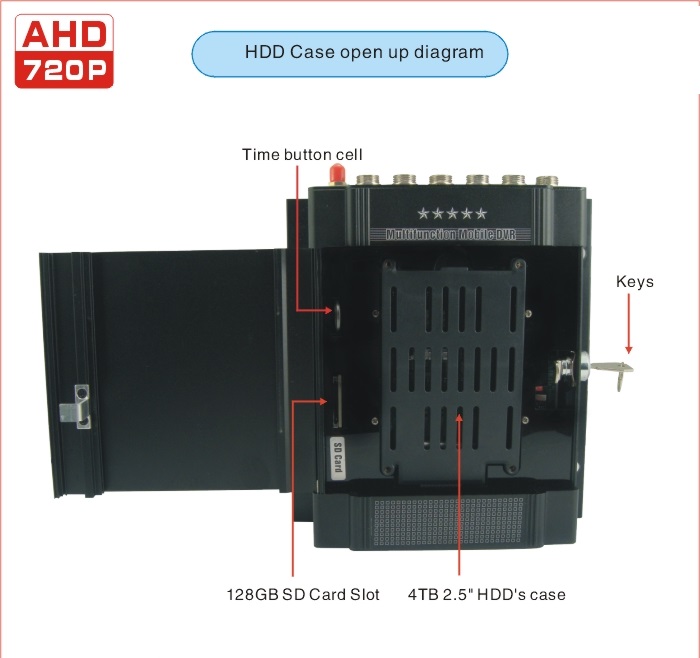

5.Supports a 2.5 inch SATA standard 4TB large-capacity hard disk and a 128GB SD/SDHC/SDXC CARD;

6.Supports power off delay after ACC+ is disconnect, the power off delay time

will be optional according to the range: 0~999(minute)

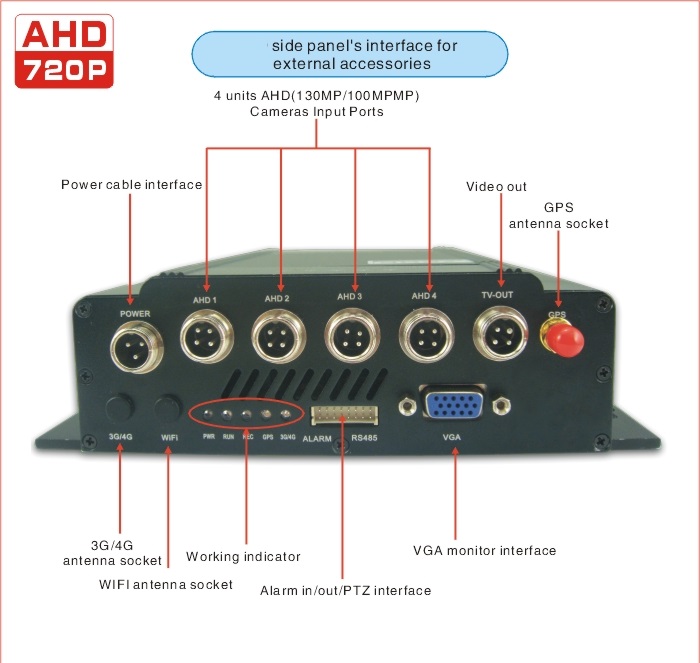

7.Supports CVBS and VGA output at the same time, will be easily for user to monitor on large LCD screen .

8.Supports 4CH alarm input and 1CH alarm output ;

9.Supports RS485 communication,support multiple PTZ device to access;

10.Supports operate system and configurate parameter by using USB mouse ;

11.Supports boot record, timing record, cyclic covering;

12.Supports user-defined channel name and device ID/plate number to make use,maintenance and management more easier ;

13.Provide camera power supply with PPTC protect and adopts fan convection cooling system design at the same time to guarantee the stability of system operation.

KX9 Specification and Technical Parameter
Model No.	KX9	Equip with basic function（such as: VIDEO，AUDIO，REC，PLAYBACK，ALARM，VGA，USB 2.0，HDD，SD，RS485，RS232（Reserved），LED，FAN）
	KX9-G	Equip with basic function + GPS
Power supply mode	Vehicle battery（mobile monitoring platform）/power adapter（other monitoring platform）
Input	DC12V～DC36V（typical input voltage: DC12V / DC24V, limited input voltage: DC10V~38V）
Working current	Product model No.	Corresponding current when reference voltage is DC24V
	KX9	400 ±10 mA
	KX9-G	420 ±10 mA
Output	DC12V/3A（supply power to cameras video input devices, built-in PPTC protection function）
Working temperature	- 10℃～ + 50℃ （limited working temperature： - 20℃～ + 60℃）
cameras	AHD_M HD standard 720P (1280720) / 100 mega pixels or 960P (1280960)/130 mega pixels / AHD _L standard 960H (960540)/normal D1(720576/normal VGA (640*480))
Video standard	PAL/NTSC (all channels have to use same standard cameras signal input)
Video input	Input standard: input amplitude Vp-p=1.0V, input impedance 75Ω
resolution	720P /960H /D1 /Half D1 /CIF
Video frame rate	PAL（1～100FPS optional）和 NTSC（1～120FPS optional）
video quality	Multi-grade adjustable
Video compression	H.264
Storage mode	Boot record, schedule record, cycle cover
Video clip	3 minutes/5 minutes /10 minutes /15 minutes /30 minutes /45 minutes /60 minutes /90 minutes /120v
Storage interface	SATA HDD interface、SD card and USB device（U disk/USB mobile HDD etc）
Storage capacity	2.5‘’ SATA 4TB HDD/SDD，128GB SD/SDHC/SDXC（advise to use Class10 and above SD card）
Output signal	CVBS composite audio video signal (4 channel video + 4 channel audio)/VGA
Network interface	none
Alarm input	4 channel isolated alarm input interface (with isolation function)
Alarm output	1 channel isolated relay input interface (with isolation function)
USB standard	2xUSB 2.0 standard interface（support USB mouse、USB backup and system upgrade）
IR receive	1 IR receive terminal(next to USB interface, belong to reversed IR remote control interface)
Indicator	PWR indicator，RUN indicator，REC indicator，GPS indicator，3G/4G indicator
Delay power off	Delay power off, cooperation with ACC+ control wire, can set the time: 0 ~ 999 minutes
GPS technology	Support NMEA-0183 GPS protocol
WIFI	none
3G	none
4G	none
Other	RS485（PTZ），RS232（reserved）
Other design	Built-in SD card, built-in SIM card, built-in HDD, built-in clock battery and support users change design, cooling fan convection design, aviation connection design, ACC+ control wire design
Mainframe side	210(L)180(W)50(H)mm
Mainframe weight	Approx 980g
