Product Specification and Technical Parameter
|
|
Model
|

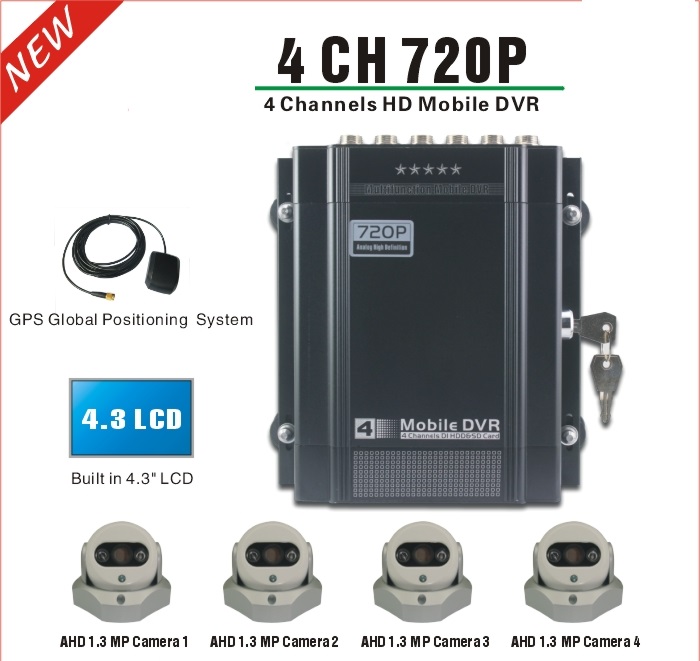

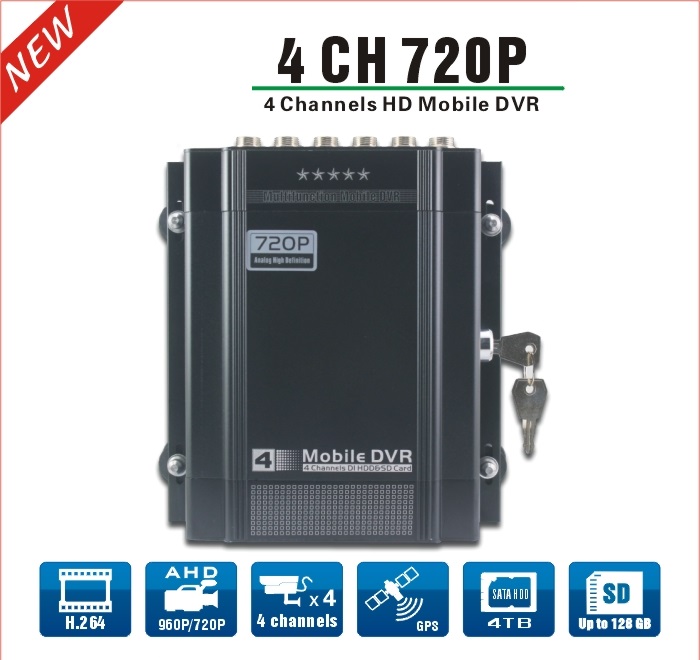

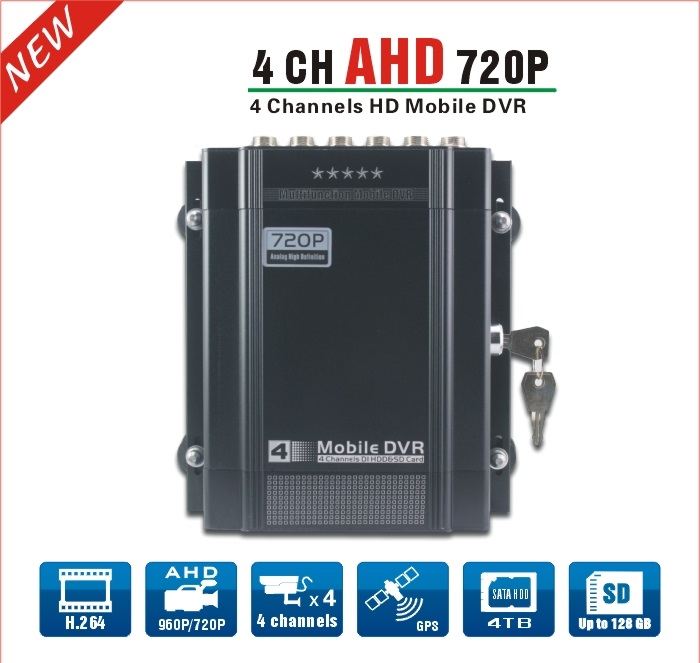

KX7 Series
|
|
CPU
|
Hisilicon
|
|
Basic
Functions
|
REC、PLAYBACK、ALARM、VGA、USB、IR、HDD、SD、TV-OUT ,etc.
|
|
Optional
Functions
|
4.3”LCD
|
GPS
|
Wi-Fi
|
3G/4G
|
G-sensor
|
|
Power
Supply
|
Car battery（For mobile monitoring）/Power adapter（For other applications）
|
|
Power
input
|
DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V～DC38V)
|
|
Working
Current
|
300 ±10 mA (the reference voltage is: DC24V)
|
|
Power
output
|
DC12V/3A（Provide power for cameras,with built in re-settable fuses.）
|
|
Working
temperature
|
- 10℃～ + 50℃ （ultimate working temperature: - 20℃～ + 60℃）
|
|
Video
Technology
|
H.264(Data encryption,need to use the playback software to play the videos）
|
|
Storage
interface
|
SATA Standard HDD interface,SD Card and USB devices(USB flash
disk/USB mobile HDD)
|
|
Storage
Capacity
|
2.5" SATA 4TB HDD/128GB SD/SDHC Card（suggest to use the SD Card
with the speed of Class10 and above)
|
|
Storage mode
|
Boot record,cycle recording(default 30 min for a fragment of video storage)
|
|

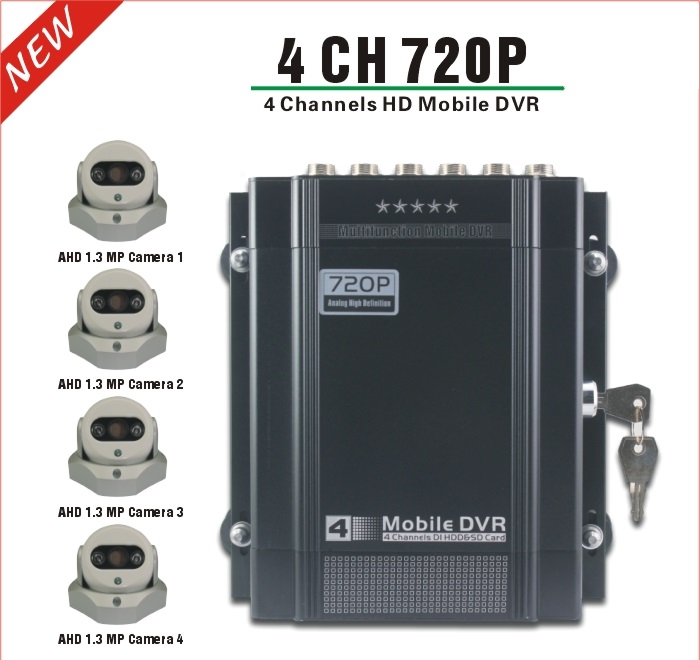

Camera
|
720P/960P Analog high definition Camera （AHD) Camera
|
|
Video
Standard
|
PAL system or NTSC system（All channels only allow the camera that
has same video standard with dvr to input the signal when using ）
|
|
Video Input
|
Support 4ch 960P/720P video Input,standard:input frequency:Vp-p=1.0V,input impedance:75Ω
|
|
Resolution
|
4ch AHD 720P full real time synchronized recording, also support the playback function
while recording.
|
|
Frame rate
|
PAL（1～100FPS optional）and NTSC（1～120FPS optional）
|
|
Video quality
|
Multi-grade adjustable
|
|
Output signal
|
CVBS（4ch video + 4ch audio,but only support 1ch audio output at a same time)
|
|

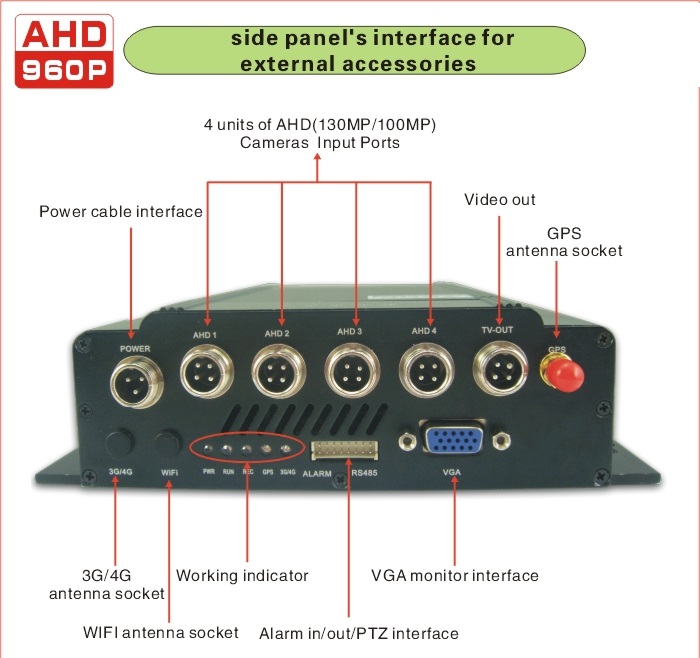

Ethernet Port
|
One 10M/100M Ethernet port (RJ45)
|
|
Alarm input
|
8ch independent alarm input port( with isolating function)
|
|
Alarm output
|
2ch in dependent relay alarm output port
|
|
USB Standard
|
2 USB 2.0 port（support USB back up and system upgrade）
|
|
IR Receiver
|
One IR receiver（beside the USB port）
|
|
Indicator
light
|
PWR indicator light,RUN indicator light,REC indicator light,
GPS indicator light,3G/4G indicator light
|
|
Delay
power off
|
Delay duration :0min/30min/60min/120min
|
|
GPS
Technology
|
Support the standard GPS protocol(NMEA-0183) set by NMEA
|
|
LCD
Screen
|
Support internal 4.3’’ LCD screen .Screen resolution :480*272
|
|
Other
Technology
|

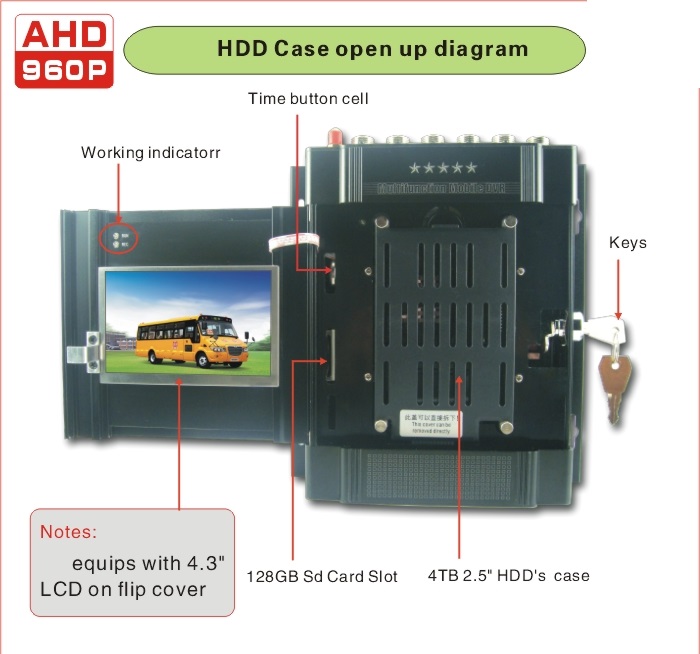

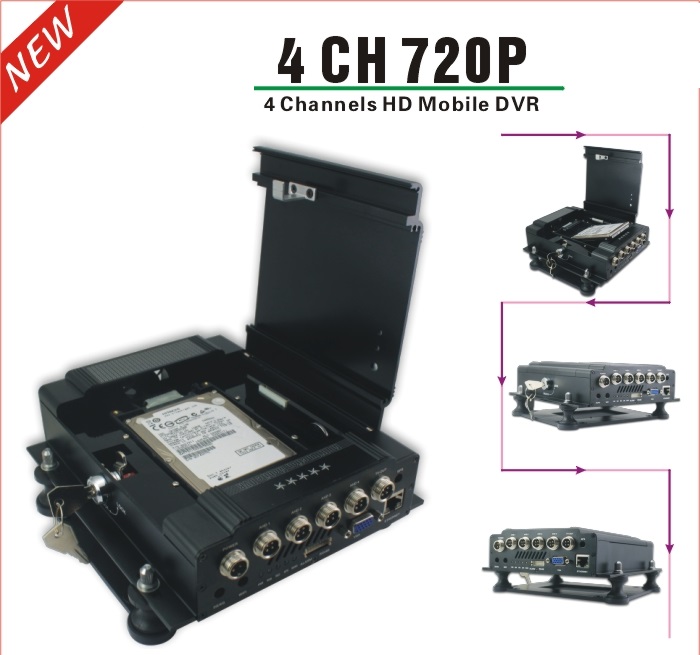

Built-in SD card slot ,HDD interface ,LCD and clock button cell slot
|
|
Environment
requirement
|
Protect against dust,damp and wet.
|
|
Waterproofness
|
Non-watertight
|
|
Application
|
Suitable for all kinds of vehicles and fixed locations
|
|
Mainframe
Size
|
210（Length）*180（Width）*50（Height）mm
|
|
Mainframe
Weight
|
About 1000g
|
