4 Channels Full D1 HDD Mobile DVR Email to a Friend

SKU: KH40

Market: US$ ~~0.00~~

Price: US $ 114-154

Buy one or more calculated by the wholesale price

Starting from 2 Units

GPS:

Yes已选中
No已选中

WIFI:

Yes已选中
No已选中

KH40 Full D1 Mobile DVR is a professional,rugged,solid state DVR designed for in-vehicle recording.KH40 records up to 4 channel video and audio location data prom built-in GPS(optional).It supports dual SD cards up to 256GB and one HDD up to 4TB for memory storage.And it also supports extensible function such as GPS,WIFI,3G,4G, ect..KH40 series can work with all CCD/CMOS cameras, and can power 4 cameras directly. It is a new in-vehicle recording system that you can rely on.
Support 3G/4G:
3G: +$60
4G: +$90

Features
Specifications
Dimensions
Application
Payment & Shipping

1.H.264 Video compression format.

2.Supports Manual Record, Motion Detect and Scheduled Record.

3.Video resolution: D1/HD1/CIF/QCIF selectable for each channel.

4.Framerate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel.

5.Supports 4 channels full D1 recording and playback simultaneously.

6.Supports two SD cards,one SD Card up to 128GB. cycle recording.

7.Supports 6 alarm inputs and 2 alarm output.

8.Power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs.

9.Support DC12V, 6A power out, can power 4 cameras directly

10.With USB interface for easy data backup

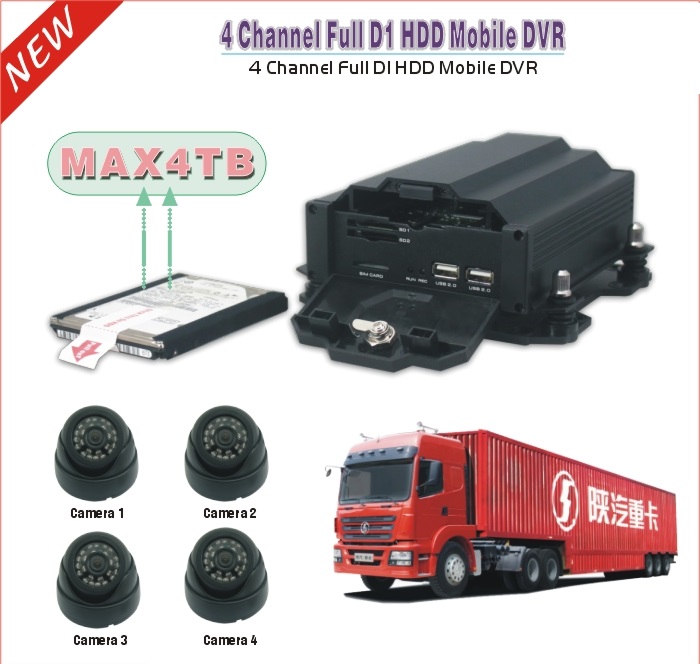

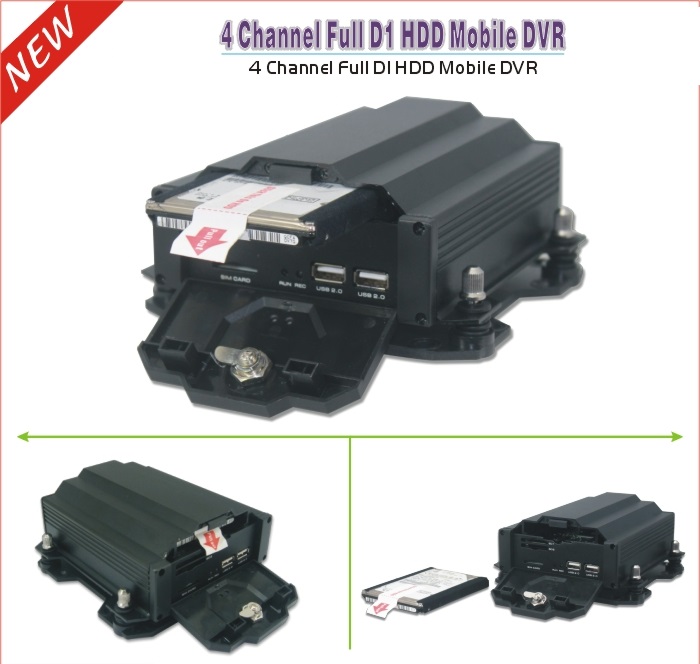

11.Equiped with internal HDD interface, can connect an HDD.

12.Support GPS,Wifi,3G/4G,CMS

Specification and Technical Parameter
Model	KH40 series
CPU	Hisilicon
Basic Functions	REC、PLAYBACK、ALARM、VGA、USB、IR、SD、TV—OUT,etc.
Optional Functions	GPS	Wi-Fi	3G/4G
Power Supply	Car battery（For mobile monitoring）/Power adapter（For other applications）
Power input	DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V～DC38V)
Working Current	250~380±10mA(the reference voltage is:DC24V)
Power output	DC12V/3A(Provide power for cameras,with built in re-settable fuses.）
Working temperature	-10℃～+50℃（ultimate working temperature:-20℃～+60℃）
Video Technology	H.264(Data encryption,need to use the playback software to play the videos）
Storage interface	Standard SATA II HDD interface, SD / SDHC Card
Storage Capacity	2.5’’ SATA II 4TB HDD,two 128GB SD/SDHC Card(suggest to use the SD Card with the speed over Class10)
Storage mode	Stop when ful l or cycle recording
Camera	Any CCD or CMOS
Video Standard	PAL system or NTSC system
Video Input	Standard:input frequency:Vp-p=1.0V,input impedance:75Ω
Resolution	4ch full D1full real time synchronized recording,also support playback and upload in the process of recording.
Total frame rate	PAL（1～100FPS optional）and NTSC（1～120FPS optional）
Video quality	Main stream/Extra Stream mufti-grade adjustable
Output signal	CVBS（4ch video + 4ch audio,but only support 1ch audio output at a same time)
Ethernet Port	One 10M/100M Ethernet port (Rj45)
Alarm input	6ch independent alarm input port( with isolating function)
Alarm output	2ch independent relay alarm output(4ch model has two red alarm indicators)
USB Standard	2 USB 2.0 port（support USB back up and system upgrade）
3G/4G	Support 4CH D1 real time video and audio transmission, including GPS info.
Indicator light	PWR indicator、RUN indicator 、REC indicator
Delay power offtime	Default 1 minute(can be customized )
GPS Technology	Support the standard GPS protocol(NMEA-0183) set by NMEA
Other Technology	RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position
Environment requirement	Protect against dust,damp and wet.
Waterproofness	Non-watertight
Application	Suitable for all kinds of vehicles and fixed locations
Mainframe Size	152（Length）147（Width）56（Height）mm
Mainframe Weight	About 560g
