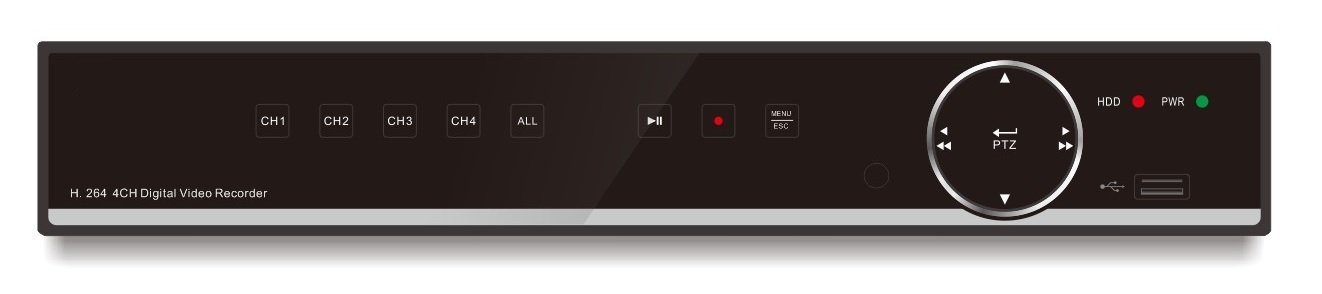

4CH AHD DVR 4MP AHD/Analog/IP Hybrid K2104 Email to a Friend

SKU: K2104
Market:  US$    0.00
Price:  US  $ 60-63

Buy one or more calculated by the wholesale price

Starting from 2 Units

Sensor/Alarm:
  • Yes已选中
  • No已选中
Quantity: Unit(s)
   Compare   Add to wishlist
Chipset: HI3521A
Video in: 4ch ; Audio in: 4ch Video out: VGA / HDMI
IP Cameras: 2 ; PTZ: YES ;
Recording resolution and speed:
Analog :4MP@15fps 1080P / 720P/960H@25fps
IP :4MP/3MP1080P/720P/960H @25fps
Dimension: 300X227X53mm
Power supply: 12V 2A
Sensor&Alarm: Optional
HDD: 1HD
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
Display Resolution
Analog :4MP/3MP(30fps)
1080P/720P/960H
IP:4MP/3MP1080P/720P/960H
Record resolution
Analog :4MP/3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P/960H
Record speed
Analog :4MP:15fps(each ch)
3MP:20fps(each ch)
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)
960H:PAL:25fps(each ch)/NTSC:30ps(each ch)
IP: PAL:25fps(each ch)/NTSC: 30fps(each ch)
Maximum output Brandwidth
32Mbps
Maximum decode performance
4MP: 2CH realtime
1080P: 4CH realtime
Recording Mode
Continuous/Manual/Motion detect
HDD interface
1SATA HDD, up to 6TB
Dimension(WxDxH)
300X227X53mm

Model

K2104

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Analog video-input /output

4CH inputs / VGA and HDMI output

IP Video Input

2ch,(only IP up to 6ch)

Composite Video Input

up to 6ch (Analog video + IP video)

Audio input /output

4CH inputs /1CH output(RCA)

Display

resolution

Analog :4MP/3MP(30fps))
1080P/720P/960H
IP:4MP/3MP1080P/720P/960H



feature

1/4/6/S.E.Q.

Record

resolution

Analog :4MP/3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P/960H



speed

Analog :4MP:15fps(each ch)
3MP:20fps(each ch)
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)
960H:PAL:25fps(each ch)/NTSC:30ps(each ch)
IP: PAL:25fps(each ch)/NTSC: 30fps(each ch)

IP-Recording Bandwidth
(Maximum input Bandwidth)

16Mbps ~48Mbps(default is 16Mbps, decrease one Analog channel can increase 8Mbps)

Maximum output Brandwidth

32Mbps

Maximum decode performance

4MP:  2CH realtime
1080P:  4CH realtime

Recording Mode

Continuous/Manual/Motion detect

Synchronous Playback

4CH

Network Type

Lan, DHCP, and DDNS

HDD interface

1SATA HDD, up to 6TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

Sensor & Alarm I/O

4 CH inputs /1CH output

PTZ Control

yes (RS485)

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA/HDMI

1280*1024,1440*900,1920*1080

Power Supply

DC 12V/2A

Dimension(WxDxH)

300X227X53mm

Working Temperature

 -10°C~+55°C

Working Humidity

10%~90%


Payment Method:

1.TT By Bank:

Beneficiary's Name: FUZHOU GULOU KROVISION TRADING CO.,LTD
Beneficiary's Account No: 43010078814400003252
SWIFT: SPDBCNSH430

2.Western Union:
First name:DENGBIAO
Last name:LU
Country:CHINA

3.Paypal:


Credit Card

Paypal Account: kvspay@gmail.com



Shipping Method:
1.By Express Delivery: DHL,UPS,TNT,Fedex,EMS
Door To Door Service.Take 3-7 business days,used mostly.

2.By Air:

Customer will pick up the cargo at the airport.Take 1-2 weeks.For the weight>100kg.

3.By Post Mail:

Door To Door Service.Take 2-4 weeks.For the weight<2kg.

Shipping Cost:
Please summit your order and offer your contact information:delivery address,telephone/cell phone,receiver...
We should calculate the shipping cost  according to the weight of the shipment.The default shipping way is the cheapest one.


Delivery Date:
Before you place order,please confirm the delivery date with our stuff.
Some items are in stock,the others will be arranged production.
We should report exact date for you after receiving information for the model and its quantity.
