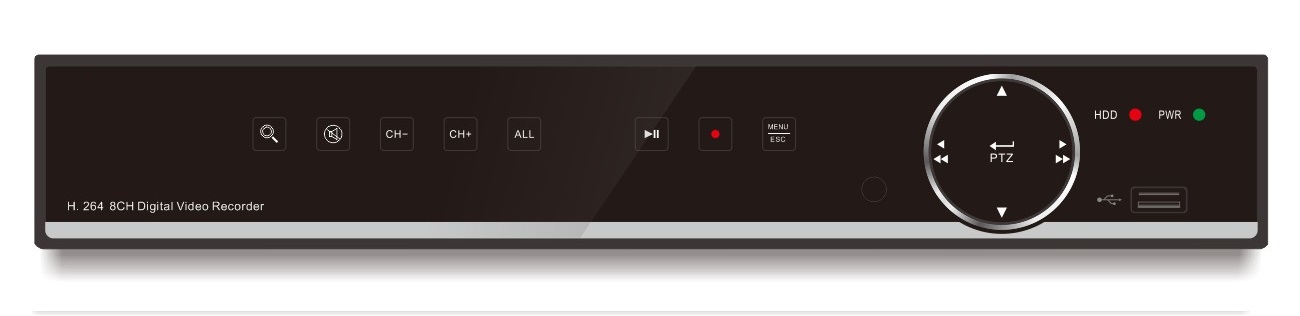

8CH AHD DVR 1080P professional full HD AHD/TVI/Analog/IP Hybrid K1108S Email to a Friend

SKU: K1108S
Market:  US$    0.00
Price:  US  $ 125-138

Buy one or more calculated by the wholesale price

Starting from 2 Units

TVI:
  • Yes已选中
  • No已选中
HDD:
Quantity: Unit(s)
   Compare   Add to wishlist
Chipset: 3531A
Video in: 8ch ; Audio in: 8ch Video out: VGA / HDMI
IP Cameras: 8 ; PTZ: YES ;
IP-Recording Bandwidth: 64Mbps ~128Mbps
Recording: 1080P 25fps/30fps
Playback: 8ch 1080P 25fps/30fps
Dimension: 300X227X53mm/380x340x50mm
Power supply: 12V 2A/5A
Sensor&Alarm: 8ch
TVI: Optional
HDD: 1HD/2HD
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
Display Resolution
Analog:3MP(18fps)1080P/720P/960H
IP:4MP/3MP1080P/720P
Record resolution
Analog :3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P
Record speed
Analog:3MP:15fps(each ch)
1080P:PAL:25fps(each ch)/NTSC::30fps(each ch)
720P:PAL:25fps(each ch)/NTSC::30fps(each ch)
960H:PAL:25fps(each ch)/NTSC::30ps(each ch)
IP:PAL:25fps(each ch)/NTSC: 30fps(each ch)
Maximum output Brandwidth
64Mbps
Maximum decode performance
1080P:8CH realtime
Recording Mode
Continuous/Manual/Motion detect
HDD interface
1SATA HDD, up to 6TB
Dimension(WxDxH)
300X227X53mm

Model

AHD K1108

AHD K1108S

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Analog video-input /output

8CH inputs / VGA and HDMI output

IP Video Input

8ch,(only IP up to 16ch)

Composite Video Input

up to 16ch (Analog video + IP video)

Audio input /output

8CH inputs /1CH output(RCA)

Display

resolution

Analog:1080P/720P/960H

IP:4MP/3MP1080P/720P

feature

1/4/6/8/9/10/13/14/16/S.E.Q.

Record

resolution

Analog :1080P/720P/960H
IP:4MP/3MP1080P/720P

speed

Analog:

 1080P: PAL: 25fps(each ch)/NTSC: 30fps(each ch)
720P: PAL: 25fps(each ch)/NTSC: 30fps(each ch)
960H: PAL: 25fps(each ch)/NTSC: 30ps(each ch)



IP:PAL:25fps(each ch)/NTSC: 30fps(each ch)

IP-Recording Bandwidth
(Maximum input Bandwidth)

64Mbps~128Mbps(default is 64Mbps, decrease one Analog channel can increase 8Mbps)

Maximum output Brandwidth

64Mbps

Maximum decode performance

1080P:8CH realtime

Recording Mode

Continuous/Manual/Motion detect

Synchronous Playback

8CH

Network Type

Lan, DHCP, and DDNS

HDD interface

1SATA HDD, up to 6TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

Sensor & Alarm I/O

N/A

8 inputs /1 output

PTZ Control

yes (RS485)

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA/HDMI

1024*768，1280*1024， 1440*900， 1280*720， 1920*1080 ，1680*1050，1600*1200，1920*1200，2560*1440 ，3840*2160

Power Supply

DC12V/2A

Dimension(WxDxH)

300X227X53mm

Working Temperature

-10°C~+55°C

Working Humidity

10%~90%



Model

TVI K1108ST

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Analog video-input /output

8CH inputs / VGA and HDMI output

IP Video Input

8ch,(only IP up to 16ch)

Composite Video Input

up to 16ch (Analog video + IP video)

Audio input /output

8CH inputs /1CH output(RCA)

Display

resolution

Analog:3MP(18fps)
1080P/720P/960H
IP:4MP/3MP1080P/720P

feature

1/4/6/8/9/10/13/14/16/S.E.Q.

Record

resolution

Analog :3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P

speed

Analog:3MP:15fps(each ch)
1080P:PAL:25fps(each ch)/NTSC::30fps(each ch)
720P:PAL:25fps(each ch)/NTSC::30fps(each ch)
960H:PAL:25fps(each ch)/NTSC::30ps(each ch)
IP:PAL:25fps(each ch)/NTSC: 30fps(each ch)

IP-Recording Bandwidth
(Maximum input Bandwidth)

64Mbps~128Mbps(default is 64Mbps, decrease one Analog channel can increase 8Mbps)

Maximum output Brandwidth

64Mbps

Maximum decode performance

1080P:8CH realtime

Recording Mode

Continuous/Manual/Motion detect

Synchronous Playback

8CH

Network Type

Lan, DHCP, and DDNS

HDD interface

1SATA HDD, up to 6TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

Sensor & Alarm I/O

8CH inputs /1CH output

PTZ Control

yes (RS485)

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA/HDMI

1024*768，1280*1024， 1440*900， 1280*720， 1920*1080 ，1680*1050，1600*1200， 1920*1200，2560*1440 ，3840*2160

Power Supply

DC12V/2A

Dimension(WxDxH)

300X227X53mm

Working Temperature

-10°C~+55°C

Working Humidity

10%~90%

Model

AHD K1108GS

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Analog video-input /output

8CH inputs / VGA and HDMI output

IP Video Input

8ch,(only IP up to 16ch)

Composite Video Input

up to 16ch (Analog video + IP video)

Audio input /output

8CH inputs /1CH output(RCA)

Display

resolution

Analog:3MP(18fps)
1080P/720P/960H
IP:4MP/3MP1080P/720P

feature

1/4/6/8/9/10/13/14/16/S.E.Q.

Record

resolution

Analog :1080P/720P/960H
IP:4MP/3MP1080P/720P

speed

Analog:
1080P:PAL:25fps(each ch)/NTSC:30fps(each ch)
720P:PAL:25fps(each ch)/NTSC:30fps(each ch)

960H:PAL:25fps(each ch)/NTSC:30ps(each ch)



IP:PAL:25fps(each ch)/NTSC: 30fps(each ch)

IP-Recording Bandwidth
(Maximum input Bandwidth)

64Mbps~128Mbps(default is 64Mbps, decrease one Analog channel can increase 8Mbps)

Maximum output Brandwidth

64Mbps

Maximum decode performance

1080P:8CH realtime

Recording Mode

Continuous/Manual/Motion detect

Synchronous Playback

8CH

Network Type

Lan, DHCP, and DDNS

HDD interface

2 SATA HDDs, up to 12TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

Sensor & Alarm I/O

8CH inputs /1CH output

PTZ Control

yes (RS485)

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA/HDMI

1024*768，1280*1024， 1440*900， 1280*720， 1920*1080 ，1680*1050，1600*1200， 1920*1200，2560*1440 ，3840*2160

Power Supply

DC 12V/5A

Dimension(WxDxH)

378x340x50mm

Working Temperature

-10°C~+55°C

Working Humidity

10%~90%



Model

TVI K1108GST

Video Compression

H.264

Video System

NTSC/PAL

Operation System

Linux(embedded)

Analog video-input /output

8CH inputs / VGA and HDMI output

IP Video Input

8ch,(only IP up to 16ch)

Composite Video Input

up to 16ch (Analog video + IP video)

Audio input /output

8CH inputs /1CH output(RCA)

Display

resolution

Analog:3MP(18fps)
1080P/720P/960H
IP:4MP/3MP1080P/720P

feature

1/4/6/8/9/10/13/14/16/S.E.Q.

Record

resolution

Analog :3MP/1080P/720P/960H
IP:4MP/3MP1080P/720P

speed

Analog:3MP:15fps(each ch)
1080P:PAL:25fps(each ch)/NTSC::30fps(each ch)
720P:PAL:25fps(each ch)/NTSC::30fps(each ch)
960H:PAL:25fps(each ch)/NTSC::30ps(each ch)
IP:PAL:25fps(each ch)/NTSC: 30fps(each ch)

IP-Recording Bandwidth
(Maximum input Bandwidth)

64Mbps~128Mbps(default is 64Mbps, decrease one Analog channel can increase 8Mbps)

Maximum output Brandwidth

64Mbps

Maximum decode performance

1080P:8CH realtime

Recording Mode

Continuous/Manual/Motion detect

Synchronous Playback

8CH

Network Type

Lan, DHCP, and DDNS

HDD interface

2SATA HDDs, up to 12TB

Multiplex Operation

live display, record, playback, backup and network

USB

2xUSB(for mouse and backup/upgrade)

Sensor & Alarm I/O

8CH inputs /1CH output

PTZ Control

yes (RS485)

Mobile Surveillance

Support Mobile Phones based on iPhone and Android operation system

VGA/HDMI

1024*768，1280*1024， 1440*900， 1280*720， 1920*1080 ，1680*1050，1600*1200， 1920*1200，2560*1440 ，3840*2160

Power Supply

DC 12V/5A

Dimension(WxDxH)

378x340x50mm

Working Temperature

-10°C~+55°C

Working Humidity

10%~90%
