960P 1.3MP HD IP Speed Dome Camera KQ5H10PS-Buy CCTV Products KVSecurity

960P 1.3MP HD IP Speed Dome Camera KQ5H10PS Email to a Friend

SKU: KQ5H10PS

Market: US$ ~~0.00~~

Price: US $ 340.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

1/2.5" 1.3M SONY CMOS IMX138,ICR;
・0.5Lux@F1.6(Color),0.095Lux@F1.6(B/W IR-ON);
・Bulit-in IR lens f=4.7-94mm;F1.6-F3.5;
・20x optical zoom;
・IP66, IR Distance up to 120m;
・H.264/MJPEG,Mobile phone,ONVIF,UPNP;
・1280(H)X960(V),960P(1~25/30fps);
・Max 200°/s pan speed, 360° continuous pan rotation;
・Up to 255 presets, Multi-auto scan, Multi-tour, 4 pattern;
・DWDR, Day/Night (ICR), DNR), Auto iris, Auto focus, AWB, AGC, BLC
・DC12V.
Standard package: with lens&bracket, but w/o power
No Alarm ,No Audio

Features
Specifications
Dimensions
Application
Payment & Shipping

 4.7mm ~ 94.0mm(20x)optical zoom

 H.264 dual-stream video compression

 Max 25/30fps@960p resolution

 WDR(DWDR), Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC

 Support P2P penetration、Mobile phone push alarm function

 Multiple network monitoring: Web viewer, CMS & Mobile

 Max 200°/s pan speed, 360° endless pan rotation

 Up to 255 presets, 4 pattern

 IR LEDs up to 120m

 With aluminium wiper，Aviod dust, ensure that the image is clear

 IP 66, -35~55°C, DC12V

KQ5H10PS
Camera
Image Sensor		1/2.5” 2.0 Megapixel Sony CMOS
Effective Pixels		1280(H)x960(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/100~1/200,000s
Min. Illumination		0.5 Lux (F1.6，50 IRE，ICR OFF)，0.095 Lux（F1.6，50 IRE，ICR ON）
Camera Features
Max. IR LEDs Length		120m
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		Auto
WDR		Support
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		2D/3D
Privacy Masking		Up to 5 areas
Lens
Focal Length		4.7mm ~ 94.0mm(20x Optical zoom)
Max Aperture		F1.6 ~ F3.5
Focus Control		Auto / Manual
Iris control		Auto / Manual
Angle of View		H: 55.2°~3.2°
PTZ
Pan/Tilt Range		Pan: 0° ~ 360° endless; Tilt: -5° ~ 90°, auto flip 180°
Manual Control Speed		Pan: 0.01° ~200° /s; Tilt: 0.01° ~120° /s
Preset Speed		Pan: 200° /s; Tilt: 120° /s
Protocol		PELCO_P、PELCO_D
Preset point		255PCS
Cruise scan		Multi groups
Auto scan		Multi groups，Left and right boundary can be set, the scanning speed can be set
Pattern scan		4PCS， Max 1000pcs order or 10mins each group
Wiper function		Support
Video
Compression		H.264
Resolution		960P(1280×960) / 720P(1280×720) / SVGA(800×600)
Frame Rate	Main Stream	960P/ 720P / SVGA (1 ~ 25/30fps)
	Sub Stream	D1 / CIF / QCIF (1 ~ 25/30fps)
Bit Rate		16K ~ 8192Kbps
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIF		ONVIF Ver. 2.0
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android
General
Power Supply		DC12V, 4A
Power Consumption		<50W
Working Environment		-35°C~+55°C, 10%~85%

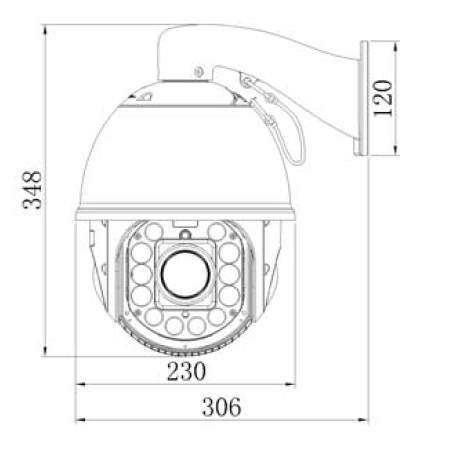

Dimensions		W230*H348
Weight		5.0Kg
