Outdoor / Indoor IR High Speed Dome PTZ Camera K900Q-Buy CCTV Products KVSecurity

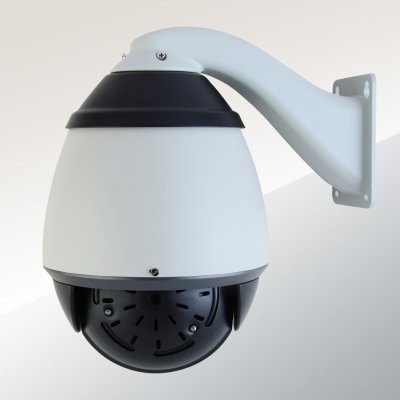

Outdoor / Indoor IR High Speed Dome PTZ Camera K900Q Email to a Friend

SKU: K900Q

Market: US$ ~~0.00~~

Price: US $ 206-495

Buy one or more calculated by the wholesale price

Starting from 2 Units

Speed:

High已选中
Medium已选中

The product has awarded 2 national patents and the "Test report" & "Production of registration of ratification" issued by the ministry of public security in China. Passed national certificates: CE, FCC, RoHS, IP65.

Features
Specifications
Dimensions
Application
Payment & Shipping

★ Private mold. 8 inch all aluminum alloy housing, got anti-oxidation treatment.

Housing rotates follow the camera lens. Water-proof.

★ External dial codes switch can set the Add Code and Baud Rate, needn't to open housing.

★ Designed and researched by us. Got 2 national patents. Got international certificates: CE, FCC, RoHS, IP65.

★ Upgraded waterproof protection for inside decoder to do double protection of decoder.

★ Unique waterproof design for inlet wire, effectively avoid the water run into the housing in storm and rainy weather,prevent the water run to machine if user use wrong install methods. External dial codes switch can set the Add Code and Baud Rate, needn't to open housing.

★ All the imported IR LED with different illuminating angle, light is uniform, IR will auto turn on according to the lens zoom (Can change zoom value for change IR mode), keep pace with the camera.

★ Use silicone gasket, aluminum alloy housing and external waterproof fan, built-in semiconductor cooling device can auto control the temperature, excellent heat dissipation system ensure its stability, this design already got national patent certificate also.

★ Decoder board supply power to motor, camera, IR LED separately, machine works more stable. Drove by bearing and belt, stable and low noise.

★ Can choose 4 set of clocks for set different scan mode. Can choose alarm function 2CH in, 1CH out.

★ Can set environment illumination for turn on IR, the IR brightness can be set in OSD menu, have 10 levels.

★ 12 PCS imported SEL super brightness Array IR LED, effective night vision distance is 110~150 meters.Double IR filters auto switch.

★ The LED's rate of converte electricity to light is 35%, more effective and save power, ensure the lifetime.

★ Far distance or less distance only 6 LED works, less LED but much better effect.

★ Working temperature: -40℃-70℃ (with temperature control device, can add heater.

★ Package: In carton, include waterproof power adaptor & mounting bracket.

Packing box size: 33x33x43 (cm). Gross Weight: 5.2 KG. 2 boxes in 1 carton, size: 66 x 44 x 40 cm.

Model No.	Module info	Speed & Function
Model No.	Module info	Speed & Function
K900X4	Chinese module, 1/4″ micron CMOS, 850 TVL, 30X optical zoom, 0.01 Lux, 3D-DNR, video mirror / reverse, can adjust brightness & gain & shutter level. Double optical filters auto switch in day / night. English OSD of module info.	Medium speed dome: * Horizontal rotate for 360°, 100°/sec, auto flip. * Vertical rotate from 3°~90°, 500°/sec. * 128 accurate preset positions, 8 tour routes, 1 fixed monitoring position.
K900X6	Chinese module. 1/3″ SONY CCD, 960H / EFFIO, 800 TVL, 0.001 Lux, 23X optical zoom, auto iris, digital fast auto focus, 3D-DNR, image horizon mirror. English OSD of module info.
K900Q4	Chinese module, 1/4″ micron CMOS, 850 TVL, 30X optical zoom, 0.01 Lux, 3D-DNR, video mirror / reverse, can adjust brightness & gain & shutter level. Double optical filters auto switch in day / night. English OSD of module info.	High speed dome: * Horizontal rotate for 360°, 220°/sec, auto flip. * Vertical rotate from 3°~90°, 100°/sec. * 128 accurate preset positions, 2 pattern scan routes, 6 tour routes, 1 fixed monitoring position. * Display PTZ direction and zoom number, and temperature. * English OSD menu for operation.
K900Q6	Chinese module. 1/3″ SONY CCD, 960H / EFFIO, 800 TVL, 0.001 Lux, 23X optical zoom, auto iris, digital fast auto focus, 3D-DNR, image horizon mirror. English OSD of module info.
K900Q9-27	Original SAMSUNG module SCM-2271P. 1/4" Interline Transfer CCD, color: 560 TVL, B&W: 570 TVL, 0.02Lux (B&W), 27X optical zoom, 16X digital zoom, multi language OSD .
K900Q9-37	Original SAMSUNG module SCM-2371P. 1/4" Interline Transfer CCD, color: 560 TVL, B&W: 570 TVL, 0.02Lux (B&W), 37X optical zoom, 16X digital zoom, multi language OSD .
