Buy one or more calculated by the wholesale price
Starting from 2 Units
* 2.8" LCD screen, multi-language menu
* Screen Brightness / Contrast / Color Saturation are adjustable
* Test video signal strength; Video Generating, PAL / NTSC multi-system color bar video generato
* PTZ control, adjust the zoom, aperture, set and call preset position
* Test UTP cable connection status, scan RS-485 communication address
* Test LAN cable, measuring the connecting status
* Built in Lithium Ion Polymer Battery, continuously works for 11 hours
* DC 12V/1A emergency power output, can supply power to camera
* Test audio from the front-end pickup device
* Size: 170mm x 99mm x 48mm
Used to test speed dome camera.
(The network testing function is for test netwoork cable signal, but not for test IPC video)

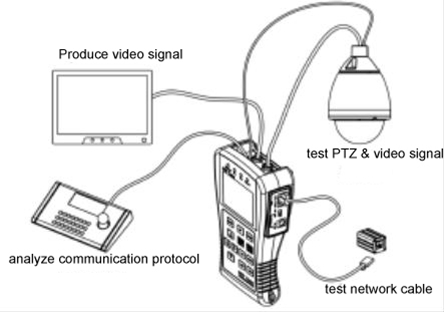

This CCTV tester is a multi-functions tester, it's a necessary tool and good assistant for both video monitory project constructors and testers. It can testing the camera image, mechanical feature of high speed Dome and PTZ, connect situation of network cable. Through simple OSD menu, it can help us to solve many complicated problems in working scenes. It's can analyze scenes situation fast and effective, so make the installation and testing complete fast, but this is hard before without the tester.
VIDEO SIGNAL TESTING |
|
Video mode: |
PAL / NTSC auto adjust |
Display screen: |
2.5 inch LCD color display screen, 960 X 240 resolution |
Video input: |
1 BNC isolation input |
Video output: |
1 BNC drive output |
PTZ CONTROL TESTING |
|
Communication port: |
Support RS323, RS422, RS485 at the same time |
Communication protocol: |
Compatible with various protocols: Pelco_D, Pelco_P, Samsung, Panasonic, Minking, Vido, Yaan etc. |
Baud rate: |
2400, 4800, 9600, 19200 |
OTHER FUNCTIONS |
|
Network wire testing: |
Can test any cable, and the connect situation can be displayed on screen |
Video signal producer: |
Can independently output one video testing signal |
RS485 protocol testing: |
Can receive and display RS485 protocol data from control equipment |
Operating menu: |
Chinese/English OSD menu |
Keyboard: |
English / Chinese operate keyboard, number keys |
POWER |
|
Power supply: |
DC 12V |
|
Built in Lithium Ion Polymer can continuously works for 11 hours for normal use after charging for 4 hours. |
Charging: |
Need 4 hours to charging, and can use 11 hours after full charging. |
Save power function: |
Low power consumption, auto stand by can save power, it's can display battery data |
OTHER DATA |
|
Working temperature: |
-30°C ~ +70°C |
Working humidity: |
30% ~ 90% |

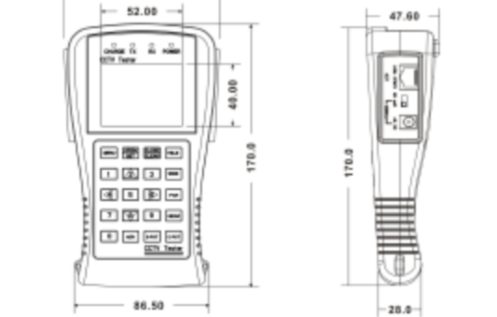

Size: |
170mm(L) X 99mm(w) X 48mm(H) |
