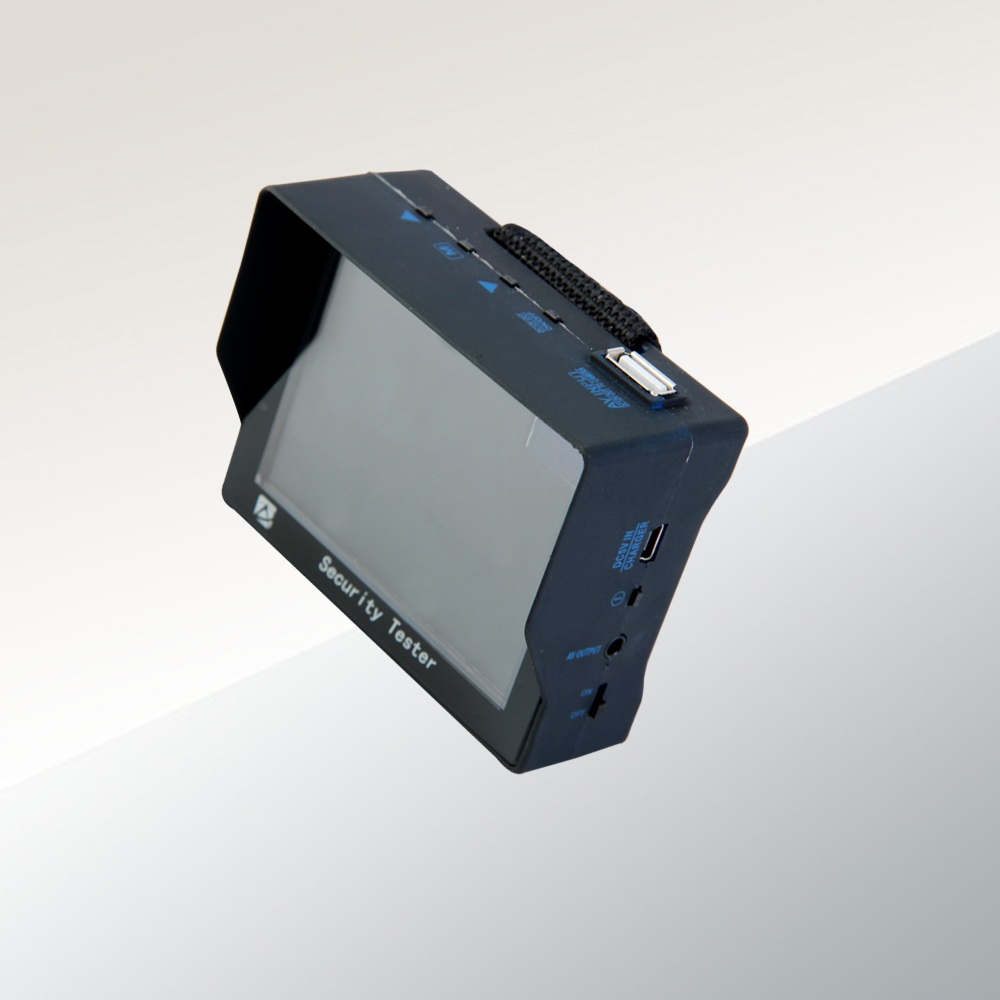

3.5'' Screen CCTV Tester To Test Fixed Analog Camera K290 Email to a Friend

SKU: K290
Market:  US$    0.00
Price:  US  $ 65.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
K290 Security video tester is an excellent assistant for first-line safety engineers and it is developed specially for technical personnel to debug the front camera.
3.5" TFT display screen + Audio input test + 12V power output + USB universal charging socket
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping

* 3.5" display screen

* DC 12V/500mA emergency power output to camera

* NTSC / PAL auto identify and auto adapt itself

* English OSD.

* built-in 2200mA lithium battery, can works for 8 hours continuously

* low power consumption, working time up to 8 hours

* 1 channel of video input, have speaker, can play the audio, USB socket for recharging

* 3 minutes without video signal, it will automatically sleep for saving power

* have sun shade cover, it can be used outdoor

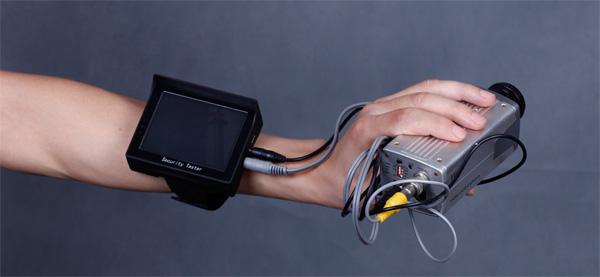

* have wristband, you can wear it like a watch on hand.

* Size: 92mm x 73mm x 27m.

Used to test normal fixed analog camera.

K290 Security video tester is a excellent assistant for first-line safety engineers and it is developed specially for technical personnel to debug the front camera. It has some simple and useful functions, like on-site access to camera images and providing temporary 12V power supply for the camera.
It owns distinctive look and wearing design and the treatment for flexible paint on the surface becomes more humane. The tester is built in lithium battery, provide powerful and reliable power for the device, along with the function that it will shut down automatically without video signal for 3 minutes. All the master controls use ultra low power decoder chips and MCU, provide 8 hours of long working time.
K290 tester is a practical tool for security project commissioning and maintenance technicians, can help them to saving time, make the work to be more effective.



Item
Info
screen
TFT 3.5"; resolution: 320 x 240
Shell materials
Engineering ABS plastic
Surface treatment
Polyester wadding (elastic paint)
Battery
18650 Lithium battery; DC3.7V (2200mA is set into the machine)
Power consumption
≤0.8w (12V emergency power is off)
Charger
5V / 1A
Video input standard
PAL / NTSC
Video input
1.0Vp - p
Emergency power output
12V / 0.5A
Audio input
0.7Vp - p
Auto sleep
After 3 minutes without video signal
Working temperature
5℃~+50℃
Size
92mm X 73mm X 27mm (shade cover part is 40mm)
Weight of the main tester
120g
Gross weight of the whole machine
500g
Size: 92mm x 73mm x 27mm (shade cover part is 40mm)
Weight of main tester: 120g
Weight of the whole tester: 500g
video surveillance installation and test
audio signal test



Appearance:


1. Wristband                                           7. USB charging socket
2. Screen protection plate                        8. 12V emergency power output socket
3. 3.5"TFT screen                                    9. Video and audio input socket
4. Power light                                        10. Power switcher
5. Charging light                                    11. Speaker
6. 12V emergency power output light
