Panoramic Auto-Tracking High Speed Dome Camera K5203 Email to a Friend

SKU: K5203
Market:  US$    0.00
Price:  US  $ 1202.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
•100/500m night view distance
•22x/36x optical zoom,
•Manual speed: pan 0.01°-120°/s, tilt 0.01°-60°/s
•360° pan rotation & auto flip, tilt angle:+105°~-10°
•Up to 128 preset, 5 auto scan, 8 tour, 1 pattern
•IP67 protection, 4000V thunder-proof
•Wiper design for glass clean
•Night View For Option:100m IR; 500m Laser
•Camera+Zoom For Option:SONY 36X; KVS 22X
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping
• Intelligent auto tracking function with panoramic wide angle view
• High resolution of 550TVL(Color), 570TVL(B/W)
• 360° continuous pan rotation, tilt: 0° ~ 90°, auto flip
• Up to 128 presets, 5 auto scans, 8 cruising tracks, 1 pattern
• Anti-surge, lightning protection, pass EMC test
• IP66 waterproof
Multiple monitoring modes:
• PTZ mode: camera works as a high performance PTZ dome camera
• Auto tracking mode: Auto-detection and tracking of moving objects
• Wide angle view mode: 175° panoramic view angle for large scale monitoring spots
• 3 tracking methods: manual tracking, random tracking, and sequence tracking
• Embedded intelligent tracking system, no software or extra hardware required
• Detection of multiple moving objects, and intelligent zoom & distance match
• RS485 remote upgrading
• Tracking schedule setting

Model

K5203

　

　

Panoramic Camera

　

　

　

Image Sensor

1/3'' SONY Super HAD CCD

　

　

Effective Pixels

752 (H) x 582 (V)

　

　

Horizontal Resolution

550TVL(color), 600TVL(B/W)

　

　

Focal Length

2mm

　

　

View Angle

Horizontal:175°, vertical: -18° ~ 90°

　

　

Backlight Compensation

BLC/HSBLC/OFF selectable

　

　

SNR

More than 52 dB

　

　

Electronic Shutter Speed

1/60 sec to 1/120,000 sec

　

　

White Balance

ATW/AWB/Indoor/Outdoor/Manual/AWC

　

　

Auto-track Camera

SONY FCB-EX985

SONY FCB-EX1020

KVS BDM-S362

Image Sensor

1/4-type Super HAD CCD II

1/4-type EXview HAD CCD

1/4" 760H CCD

Effective Pixels

440,000 pixels (PAL)

　

　

　

380,000 pixels(NTSC)

　

　

Horizontal Resolution

550TVL(color), 570TVL(B/W)

550TVL(color), 570TVL(B/W)

540TVL(color), 560TVL(B/W)

Scanning System

Progressive Scan

Interlace Scan

Progressive Scan

Electronic Shutter Speed

1/1 sec to 1/10,000 sec, 22 steps

1/50 sec ~1/10000 sec

Min. Illumination

1.4 lux (F1.6, 50IRE)

0.65 lux (F1.35, 50IRE)

0.01 lx(ICR ON 1/50 Sec)

　

28X optical/12X digital

36X optical/12X digital

23X optical/12X digital

Focal Length

3.5mm ~ 98.0mm

3.4mm ~ 122.4mm

3.84mm ~ 188.4mm

Angle of View

H:55.8° ~ 2.1°

H:57.8°~ 1.7°

F1.6 ~ F3.7

Backlight Compensation

BLC / HLC / WDR

　

　

White Balance

Auto, ATW, Indoor, Outdoor, Manual

　

Auto/Manual

Noise Reduction

2D/3D

　

3D-DNR

PTZ

　

　

　

Pan/Tilt Range

Pan: 0° ~ 360° continuous; tilt: 0° ~ 90°, auto flip

Manual Control Speed

Pan: 0.01° ~120° /s; tilt: 0.01° ~120° /s

Preset

128

Auto Scan

5,adjustable scan speed

　

8, each with 10 preset points

Pattern Tour

1 with 200 commands

Privacy Masking

8 zones

Power Failure Recovery

Auto recover to previous PTZ and lens status after power failure

Guard Location

Call preset, auto scan, cruising track or pattern if there is no command in a period of time

Motion Schedule

Call preset, auto scan, cruising track or pattern by preset schedule

Remote Upgrade & Recovery

Support　

Protocol

Peclo P/D, KVSecurity

Commnication

RS422

Tracking Function

　

Detection Objects

10

Tracking Priority Area

Support

Video Output

2 video combined outputs, main video shows panoramic/ wide angle/combined video by switch

　

Auxiliary video shows panoramic view

Alarm

Contact closure output

Tracking Schedule

Support, tracking on/off time setting for a week

General

　

Power Supply

AC 24V ±25%

Power Consumption

≤20W, ≤50W( with heater on)

Working Environment

Working temperature: -35ºC ~ 60ºC; working humidity: ≤90% RH

Protection Level

IP66

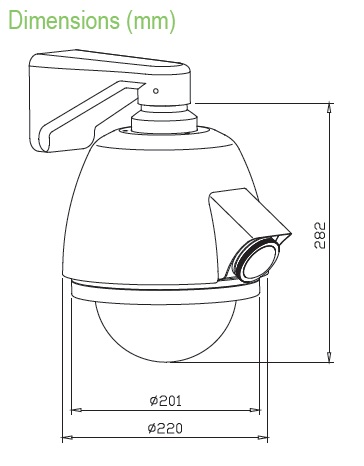

Dimensions

Ø220x282(H) mm

Material

Aluminum alloy

Weight

4.0kgs

Accessories

Model

Wall Mount Bracket

K2782

Pendent Mount Bracket

K2704

Conor Mount Bracket

K2710

Pole Mount Bracket

K2720
