IR/Laser Day Night High Speed Dome Camera K5904 Email to a Friend

Model

K5904

Camera

SONY FCB-EX985

SONY FCB-EX1020

KVS BDM-S362

Image Sensor

1/4-type Super HAD CCD II

1/4-type EXview HAD CCD

1/4" 760H CCD

Effective Pixels

440,000 pixels (PAL)

380,000 pixels(NTSC)

Horizontal Resolution

550TVL(color), 570TVL(B/W)

550TVL(color), 570TVL(B/W)

540TVL(color), 560TVL(B/W)

Scanning System

Progressive Scan

Interlace Scan

Progressive Scan

Electronic Shutter Speed

1/1 sec to 1/10,000 sec, 22 steps

1/50 sec ~1/10000 sec

Min. Illumination

1.4 lux (F1.6, 50IRE)

0.65 lux (F1.35, 50IRE)

0.01 lx(ICR ON 1/50 Sec)

S/N Ratio

More than 50 dB

Video Output

BNC(1.0Vp-p/75 ), PAL / NTSC

Lens

Zoom

28X optical/12X digital

36X optical/12X digital

23X optical/12X digital

Focal Length

3.5mm ~ 98.0mm

3.4mm ~ 122.4mm

3.84mm ~ 188.4mm

Max Aperture

F1.35 ~ F3.7

F1.6 ~ F4.5

F1.6 ~ F3.7

Focus Control

Auto/Manual

Angle of View

H:55.8° ~ 2.1°

H:57.8°~ 1.7°

H:53.5° ~ 2.0°

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Auto/Manual

Gain Control

Auto / Manual

Noise Reduction

2D/3D

3D-DNR

Privacy Masking

Up to 24 areas

Support

Image Stabilization

Electronic Image Stabilizer (EIS)

PTZ

Max Night Vision Range

100m with IR LED; 500m with laser illuminator

Pan/Tilt Range

Pan: 0° ~ 360°continuous; Tilt: -15° ~ 90°, auto flip

Manual Control Speed

Pan: 0.1° ~120° /s; Tilt: 0.1° ~60° /s

Preset

128

Auto Scan

5,adjustive scan speed

CruisingTrack

8, each with 10 preset points

Pattern Tour

1 with 200 commands

Power Failure Recovery

Recover to previous PTZ and lens status after power failure

Guard Location

Call preset, auto scan, cruising track or pattern tour if there is no command in a period of time

Motion Schedule

Call preset, auto scan, cruising track or pattern tour by preset schedule

Remote Upgrade & Recovery

Support

Protocol

Peclo P/D, self-adaptive

Wiper

DC12V drive

Commnication

RS485/RS422

General

Heater & Fan

Default

Installation Chain

Safety installation chain, 40 cm, 400kgs stretch resistance

Power Supply

AC 24V ±20%, DC24V±20%, AC/DC adaptive

Power Consumption

≤80W

Working Environment

Working temperature: -35ºC ~ 60ºC; working humidity: ≤90% RH

Protection Level

IP67

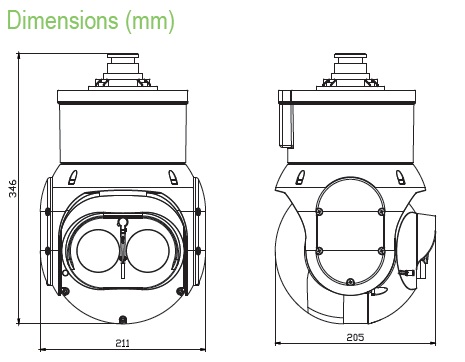

Dimension

205(L) x 211(W)x346(H) mm

Material

Aluminum alloy

Weight

7.0kgs

Accessories

Model

100M IR LED

F01

500M Laser Illuminator

G38

Wall Mount Bracket

K2782

Pendent Mount Bracket

K2704

Conor Mount Bracket

K2710

Pole Mount Bracket

K2720
