1080P 20X IP Explosion Proof PTZ Camera with IR Illuminator K3032HD Email to a Friend

SKU: K3032HD
Market:  US$    0.00
Price:  US  $ 1795.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

Quantity: Unit(s)
   Compare   Add to wishlist
Ex-Proof Certificate:ATEX/IECEx, CNEX certification
Camera:1080P 20X
316L stainless steel 20X optical zoom 1080P resolution, 25/30fps HD image
100 metres Infrared light
Rotation speed：Pan 0.05°~30°/s；Tilt0.05°~30°/s
360° continuous pan rotation
± 90° tiltl rotation
IP68 protection
Built-in wipe for lens Built-in heater ONVIF compliant
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping

• 2Mp progressive CMOS, 20X optical zoom
• H.264 dual-stream encoding
• Max 30fps@1080p resolution
• Explosion proof level: ExdIICT6/DIP A20 TA，T6
• Electro-polished stainless steel meterial
• Night vision up to 100m with IR
• 360° continuous rotation, Pan: 0.05° ~30° /s; Tilt: 0.05° ~30° /s
• Up to 80 presets, 5 auto scans, 8 cruising tracks
• Anti-surge, lighting protection, pass EMC test
• IP68 waterproof

Model K3032HD
Explosion Proof
Ex-Proof Level ExdIICT6/DIP A20 TA,T6
Enclosure Material Stainless steel 316L
Window Material Toughened glass with double-side Nano coating
Surface Polishment Electro-polished
Protection Level IP68
Camera   KVS E86
Image Sensor 1/2.8" CMOS
Effective Pixels 1920(H) x 1080(V), 2.0 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/6 s ~ 1/8000 s
Min. Illumination Color: 0.03 lux (F1.6, 50IRE)
B/W: 0.01 lux (F1.6, 50IRE)
S/N Ratio More than 50dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Wide Dynamic Range /
Backlight Compensation ON/OFF
White Balance Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
Gain Control Auto/Manual/Max
Noise Reduction 3D DNR
Privacy Masking Up to 8 areas
Zoom 22x optical
Lens
Focal Length 4.7 ~ 103.4 mm
Max Aperture F1.6 ~ F3.2
Focus Control Auto / Manual
Angle of View H: 55.4° ~ 2.9°
PTZ
Night Vision Range 100m with IR LED
Angle Return  Support with Pelco D, default enquiry return
Angle Control Support
Pan Rotation Range 0° ~ 360° continuous
Tilt Rotation Range  -90° ~ +90°
Rotation Speed  Pan 0.05° ~30° /s; tilt 0.05° ~30° /s
Preset 80
Auto Scan 5, based on OSD menu
Cruising Track 8, each with 80 presets postions
Patter Tour 1
Guard Location Call preset, cruising track,  atuo scan or pattern tour  if there is no command in a period of time
Motion Schedule Call preset, auto scan, cruising track or pattern tour by preset schedule
Wiper Control Support
Video
Compression H.264/MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate Main stream: 1080P/720P(1 ~ 25/30fps)
  Substream: D1/CIF(1 ~ 25/30fps)
Bit Rate 1Mbps~10Mbps
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,PPPoE, DDNS
ONVIF ONVIF Ver. 2.2
User Access Minimum 5 users
General
Power Supply AC 24V ±25%
Power Consumption ≤100W
Working Environment Working temperature: -30oC ~ 60oC
  Working humidity: ≤90% RH (No condensing, no heating)

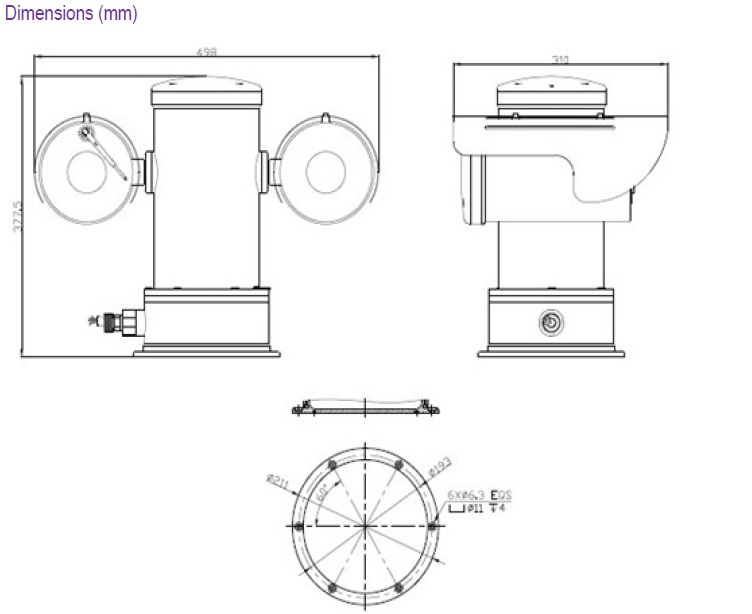

Dimensions 498(L) x 310(W)x377.5(H) mm
Weight 35kgs
