HD Day/Night Vehicle application PTZ camera K3020HD Email to a Friend

Model

K3020HD

Camera

SONY FCB-EH6300

Image Sensor

1/2.8'' Exmor CMOS

Effective Pixels

1920(H) x 1080(V), 2.0 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1~1/10000s

Min. Illumination

Color: 1.71 lux@F1.6

B/W: 0.3lux@F1.6

S/N Ratio

More than 50dB

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Wide Dynamic Range

Auto/Manual

Backlight Compensation

ON/OFF

White Balance

Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual

Gain Control

Auto/Manual/Max

Noise Reduction

Yes(On/Off)

Privacy Masking

ON/OFF, 24 zones

Zoom

20x optical/12x digital zoom

Lens

Focal Length

4.7mm ~ 94mm

Max Aperture

F1.6 ~ F3.5

Focus Control

Auto / Manual

Angle of View

H: 55.4° ~ 2.9°

PTZ

Night Vision Range

100m with IR LED; 500m with super laser illuminator

Pan Rotation Range

0° ~ 360° continuous

Tilt Rotation Range

Double load, -90° ~ +90°

Pan Speed

0.1° ~80° /s

Tilt Speed

0.1° ~40° /s

Preset

80

Auto Scan

1

Cruising Track

8, each with 10 preset positions

Power Failure Recovery

Recover to previous PTZ and lens status after power failure

Guard Location

Call preset, cruising track or atuo scan if there is no command in a period of time

Relay AUX Output

2 groups

Video

Compression

H.264

Resolution

1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/720P(1 ~ 25/30fps)

Substream: D1/CIF(1 ~ 25/30fps)

Bit Rate

1Mbps~10Mbps

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,PPPoE, DDNS

ONVIF

ONVIF Ver. 2.2

User Access

Minimum 5 users

General

Power Supply

AC 24V ±25%, DC 9~36V (Vehicle load)

Power Consumption

≤60W

Application

Vehicle load/indoor/outdoor

Working Temperature

-35ºC ~ 65ºC

Working Humidity

≤90% RH (No condensing, no heating)

Protection Level

IP66

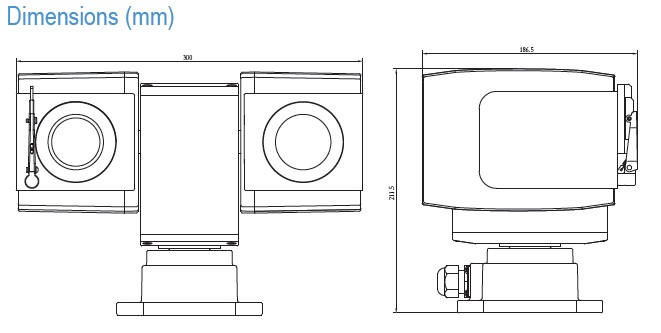

Dimensions

300(L) x 186.5(W)x211.5(H) mm

Material

Magnalium

Weight

6kgs

Accessories

Model

500M Laser Illuminator

G38
