Model | K3032V | |
Explosion Proof | ||
Ex-Proof Level | ExdIICT6/DIP A20 TA,T6 | |
Enclosure Material | Stainless steel 316L | |
Window Material | Toughened glass with double-side Nano coating | |
Surface Polishment | Electro-polished | |
Protection Level | IP68 | |
Camera | SONY FCB-EX985 | SONY FCB-EX1020 |
Image Sensor | 1/4-type Super HAD CCD II | 1/4-type EXview HAD CCD |
Effective Pixels | 440,000 pixels (PAL) | 440,000 pixels (PAL) |
380,000 pixels(NTSC) | 380,000 pixels(NTSC) | |
Horizontal Resolution | 550TVL(color), 570TVL(B/W) | |
Scanning System | Progressive Scan | Interlace Scan |
Electronic Shutter Speed | 1/1 sec to 1/10,000 sec, 22 steps | |
Min. Illumination | 1.4 lux (F1.6, 50IRE) | 0.65 lux (F1.35, 50IRE) |
S/N Ratio | More than 50 dB | |
Video Output | BNC(1.0Vp-p/75 ), PAL / NTSC | |
Lens | ||
Zoom | 28X optical/12X digital | 36X optical/12X digital |
Focal Length | 3.5mm ~ 98.0mm | 3.4mm~ 122.4mm |
Max Aperture | F1.35 ~ F3.7 | F1.6 ~ F4.5 |
Focus Control | Auto/Manual | |
Angle of View | H:55.8° ~ 2.1° | H:57.8°~ 1.7° |
Camera Features | ||
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / WDR | |
White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | 2D / 3D | |
Image Stabilization | Electronic Image Stabilizer (EIS) | |
PTZ | ||
Night Vision Range | 100m with IR LED | |
Angle Return | Support with Pelco D, default enquiry return | |
Angle Control | Support | |
Pan Rotation Range | 0° ~ 360° continuous | |
Tilt Rotation Range | -90° ~ +90° | |
Rotation Speed | Pan 0.01° ~30° /s; tilt 0.01° ~30° /s | |
Preset | 80 | |
Auto Scan | 8, based on OSD menu | |
Cruising Track | 8, each with 80 presets postions | |
Patter Tour | 1 or 200 commands | |
Guard Location | Call preset, cruising track, atuo scan or pattern tour if there is no command in a period of time | |
Alarm | 2 channel inputs / 2 channel outputs (Optional) | |
Protocol | Peclo P/D | |
Wiper Control | Support | |
Commnication | RS485/RS422 | |
Relay AUX Output | 2 groups | |
General | ||
Power Supply | AC 24V ±25% | |
Power Consumption | ≤100W | |
Working Environment | Working temperature: -20oC ~ 60oC | |
Working humidity: ≤90% RH (No condensing, no heating) | ||

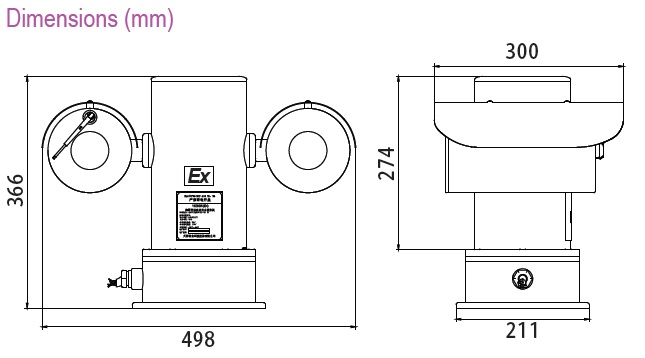

Dimensions | 498(L) x 300(W)x366(H) mm | |
Max. Camera Space | 120(L) x 70(W)x70(H) mm | |
Weight | 29kgs |
