Vehicle Application High Speed PTZ Camera K3020 Email to a Friend

Model

K3020

Camera

SONY FCB-EX985

SONY FCB-EX1020

KVS BDM-S362

Image Sensor

1/4-type Super HAD CCD II

1/4-type EXview HAD CCD

1/4" 760H CCD

Effective Pixels

440,000 pixels (PAL)

380,000 pixels(NTSC)

Horizontal Resolution

550TVL(color), 570TVL(B/W)

550TVL(color), 570TVL(B/W)

540TVL(color), 560TVL(B/W)

Scanning System

Progressive Scan

Interlace Scan

Progressive Scan

Electronic Shutter Speed

1/1 sec to 1/10,000 sec, 22 steps

1/50 sec ~1/10000 sec

Min. Illumination

1.4 lux (F1.6, 50IRE)

0.65 lux (F1.35, 50IRE)

0.01 lx(ICR ON 1/50 Sec)

S/N Ratio

More than 50 dB

Video Output

BNC(1.0Vp-p/75 ), PAL / NTSC

Lens

Zoom

28X optical/12X digital

36X optical/12X digital

23X optical/12X digital

Focal Length

3.5mm ~ 98.0mm

3.4mm ~ 122.4mm

3.84mm ~ 188.4mm

Max Aperture

F1.35 ~ F3.7

F1.6 ~ F4.5

F1.6 ~ F3.7

Focus Control

Auto/Manual

Angle of View

H:55.8° ~ 2.1°

H:57.8°~ 1.7°

H:53.5° ~ 2.0°

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Auto/Manual

Gain Control

Auto / Manual

2D/3D

3D-DNR

Privacy Masking

Up to 24 areas

Support

Image Stabilization

Electronic Image Stabilizer (EIS)

PTZ

Night Vision Range

500m with laser illuminator

0° ~ 360° continuous

Tilt Rotation Range

Double load, -90° ~ +90°

Pan Speed

0.1° ~80° /s

Tilt Speed

0.1° ~40° /s

Preset

80

Auto Scan

8

Cruising Track

8, each with 10 preset positions

Power Failure Recovery

Recover to previous PTZ and lens status after power failure

Guard Location

Call preset, cruising track or atuo scan if there is no command in a period of time

Protocol

Peclo P/D, self-adaptive

Commnication

RS485

Relay AUX Output

2 groups

General

Power Supply

DC 12V

Power Consumption

≤30W

Application

Vehicle load/indoor/outdoor

Working Temperature

-35ºC ~ 65ºC

Working Humidity

≤90% RH (No condensing, no heating)

Protection Level

IP66

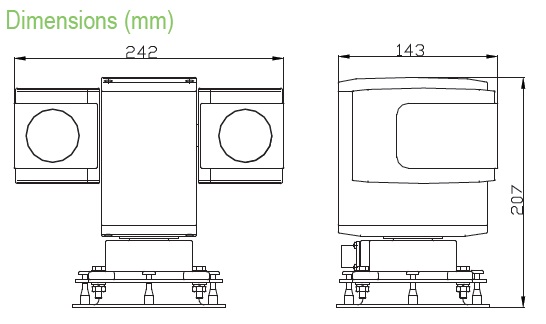

Dimensions

242(L) x 143(W)x207(H) mm

Material

Rare earth material

Weight

4.9kgs

Accessories

Model

500M Laser Illuminator

G38
