Heavy-Duty Variable High Speed Pan Tilt K3081 Email to a Friend

Model

K3081

PTZ

Angle Return

Support with Pelco D, default enquiry return(Real time angle return is available)

Load Type

Top load

Pan Rotation Range

0° ~ 360° continuous

Max. Load Weight

50kgs,tilt angle:-45° ~ +45°

40kgs,tilt angle: -60° ~ +60°

26kgs,tilt angle: -80° ~ +80°

Angle Control

Support

Pan Speed

0.01° ~30° /s

Tilt Speed

0.01° ~15° /s

Lens Control

Support with default lens control interface

Preset

80

Auto Scan

8

Cruising Track

8

Apple Peel Rotation

8, based on OSD menu

360 Degree Step Scan

8, based on OSD menu

Guard Location

Call preset, cruise track or atuo scan if there is no command in a period of time

Idle Motion Time Counting Support

Protocol

Peclo P/D, KVSECURITY

OSD

English/Chinese

1 (Extendable to 2)

Commnication

RS485/422

Relay AUX Output

2 groups (Extentable to 4 gourps without heating, or 3 groups with heating)

General

Power Supply

AC 24V ±25% / DC 24V ±20%, self-adaptive

Power Consumption

≤85W (Heating system off)

Working Environment

Working temperature: -35ºC ~ 65ºC, working humidity: ≤90% RH

Protection Level

IP66

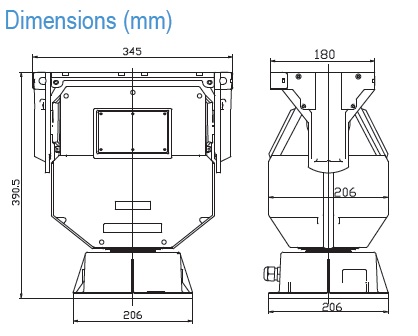

Dimensions

340(L) x 206(W)x390(H) mm

Material

Aluminum alloy

Weight

20kgs

Accessories

Model

Housing

K4823, K4829
