Cost-effective Light Duty Pan Tilt K3040 Email to a Friend

SKU: K3040
Market:  US$    0.00
Price:  US  $ 140-220

Buy one or more calculated by the wholesale price

Starting from 2 Units

Configuration:
Heater:
  • Yes已选中
  • No已选中
Quantity: Unit(s)
• Top payload, max load 10kgs
• Constant speed: Pan 7.5/s; Tilt 6°/s
• Pan angle: 0-355°, tilt angle: -87°/-+4°
• IP66, working temperature: -35°-+65°
• 24VAC power input
  • Features
  • Specifications
  • Dimensions

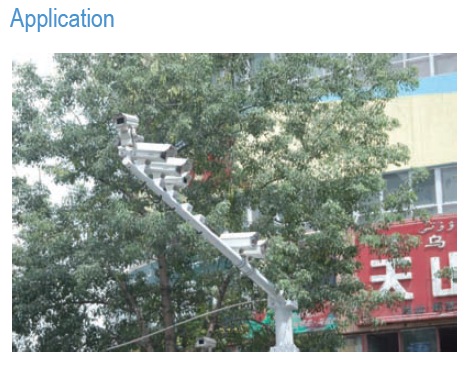

  • Application
  • Payment & Shipping
• Cost-effective, constant speed, maximum 10kgs top load
• 355° pan rotation, Pan: 7.5° /s, tilt: 6° /s
• Up to 50 presets, 1 auto scan, 1 cruising track
• Anti-surge, lightning protection, pass EMC test
• Optional IR illuminator, housing, bracket
• IP66 waterproof


Model

K3040P

K3040D

PTZ



Load Type

Top load

Top load

Max. Load Weight

10kgs

10kgs

Pan Rotation Range

0° ~ 355°

0° ~ 355°

Tilt Rotation Range

-87° ~ +4° (±2°)

-87° ~ +4° (±2°)

Pan Speed

7.5° /s

7.5° /s

Tilt Speed

6° /s

6° /s

Preset

50

/

Auto Scan

1

/

Cruising Track

1

/

Protocol

Peclo P/D, KVSECURITY

Peclo P/D, KVSECURITY

OSD

English/Chinese

English/Chinese

355°





Commnication

RS485

RS485

Pan Rotation IP66





Relay AUX Output

2 groups

2 groups

General



Power Supply

AC 24V ±20%

Power Consumption

≤30W , ≤60W( With heating system)

Working Temperature

-20ºC ~ 65ºC or -35ºC ~ 65ºC (with heating system)

Working Humidity

≤90% RH (No condensing, no heating)

Protection Level

IP66

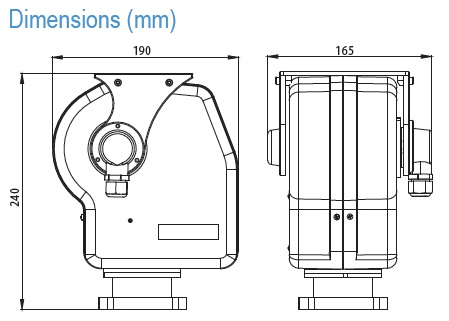

Dimensions

190(L) x 165(W)x240(H) mm

Material

Aluminum alloy

Weight

4.2kgs

Accessories

Model

IR LEDs

F01

Housing

K45XX series housing

Wall Mount Bracket

K2761
