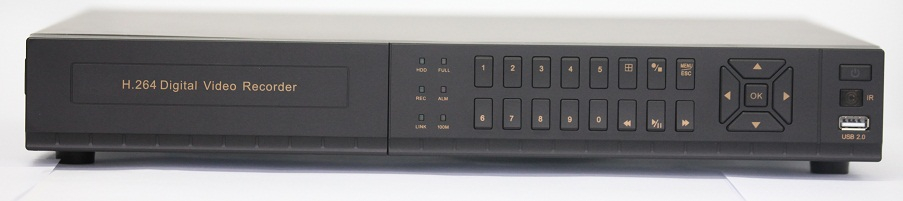

8CH NVR 1080P realtime 1HDD 8CH Playback KM8608E-Buy CCTV Products KVSecurity

8CH NVR 1080P realtime 1HDD 8CH Playback KM8608E Email to a Friend

SKU: KM8608E

Market: US$ ~~0.00~~

Price: US $ 106.00

Buy one or more calculated by the wholesale price

Starting from 2 Units

• Based on ONVIF Platform, third-party network cameras supported
• Up to 2 Megapixel resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• Maximum 4TB Sata HDD
• Group management Per CMS
• Mobile devices view per Smart phone and Tablet
• P2P notification and Push function

Features
Specifications
Dimensions
Application
Payment & Shipping

*H.264 Compression DVR

8 CH 1080p IPC without PON (by switch)

200 fps(8 x 25 fps)

8 CH 1080P Recroding &4 CH realtime (full frame) Playback/ 8 CH realtime (22FPS) playback;

ONVIF,N9 protocol.

Recording mode:Always/Schedule/Alarm recording/Motion detection recording

Audio compression:ADPCM

Dual-stream:Main stream:720P; Sub stream1: VGA/QVGA, Sub stream2: 720P (8FPS);

*Support 1*4TB SATA HDD,1*E-SATA

*IE and Multi-Client software for remote configuration,playback and video data download etc.

*Support mobile phone multi preview+playback+audio+ptz+digital zoom+configuration etc..

System	User Interface	Graphic User interface(OSD Menu)
	OS	Embedded Linux
	ONVIF	Support
	Security	Administrator; Different authurity for users
Video	Video input	8 CH 1080P IPC(by switch)

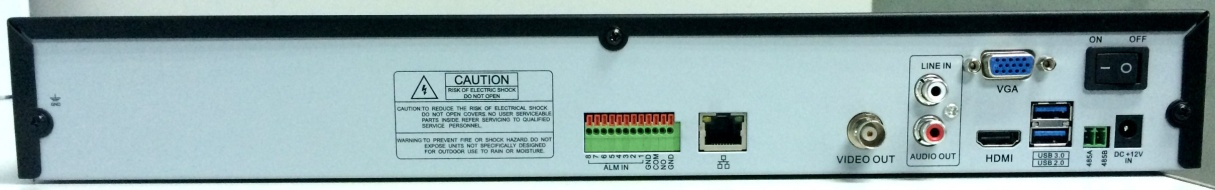

	Video output	CVBS/VGA/HDMI
	Display	1/4/9 optional
	VGA	1024768,12801024,1440900,1366768,720P,1080P
	Video encoding resolution	PAL:720P(1280X720); 1080P(19201080) / NTSC:720P(1280X720); 1080P(19201080)
	Video frame rate	PAL/NTSC:1-30FPS
Audio	Audio compress	ADPCM
	Audio in	IPC with audio
	Audio out	1 out RCA
Image & Storage	Video compress	H.264
	Image quality	1080P
	Sub stream	Sub stream1:VGA/QVGA; Sub stream2:540P
	Resolution	8CH 1080P recording &4CH Realtime playback/8CH realtime playback(22FPS)
	Video Bit Rate	720P:1536kbps-3072kbps; 1080P:2048-8192kbps
	Audioo Bit Rate	8—32Kbps
	Storage	2 HDD optional
Alarm	Alarm in/out	8 in/1 out
Others	Recording	Manual/alarm/motion detection/timing
	Network	RJ45 1000MB
	Network	Protocol: TCP/IP, PPPOE, SMTP,UPNP,DHCP and DDNS
	Voice talk	Support
	Control Method	Remote control, USB mouse, panel control
	Mobile live view	I phone //IPAD/Android/Blackberry
	Domain name server	Support 88110,reelink,3322, dyndns, no-ip, changeip, dnsexit domain name server as default value.
	Backup	USB2.0, Network
	Serial	RS485
Power Supply	NVR	DC 12V 5A
Power Supply	IPC	Individual power supply(DC 12V 2A)
Working Environment		Working temperature: -10℃~+60℃; Working humid:10%~ 90%
Device Dimension		321mm(W)×405mm(D)×64mm(H)
Weight		≤3KG
