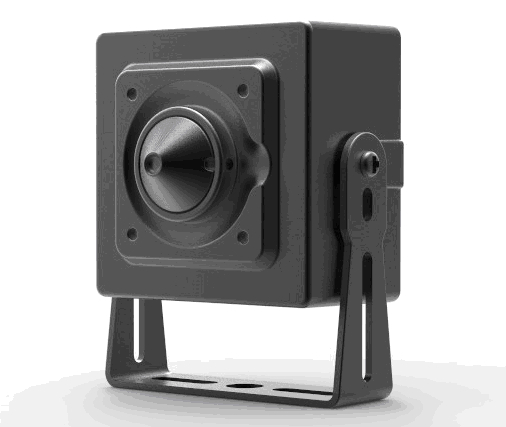

1.0 Megapixels 720P Mini Pinhole IP Camera KR5T3A1 Email to a Friend

Camera

Image Sensor

1/3" Progressive Scan CMOS

Effective Pixel

1280(H)*960(V)

Min Illumination

Color: 0.01Lux/F1.2, AGC on;

S/N Ratio

≥50db(AGC OFF)

3A Control

AWB/AGC/Auto Exposure

Electronic Shutter

1/25—1/10000s

IR Distance

N/A

Waterproof

N/A

Audio&Video Encoding

Video Encoding

H.264 Main Profile

Streams

First Stream: 720P, 1-30FPS; Second Stream: D1/CIF, 1-30FPS

Video Compression

32K-8Mbps, CBR/VBR

Video Text

Text, Bit Rate, Date, Weekday

I/O

Lens

3.7mm

Audio

N/A

Alarm

N/A

RS485

N/A

Internet

10/100M Auto Adaptive，RJ45

Data Transfer and Storage

Data Storage

Video、Picture

Storage Type

Manual、Auto(Timing、Probe、Motion、Block Detection)

Alarm Message

E-mail、IE、Management Software

Internet Protocol

TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP

Onvif

Support

Web View

IE 6.0 above

Working Status

Power Supply

DC12V/1A

Working Environment

Temperature: -10℃ to +55℃;

Humidity: 0% - 90%
