2.0 Megapixels 1080P HD IP IR Bullet Camera KQ5F1AM-Buy CCTV Products KVSecurity

2.0 Megapixels 1080P HD IP IR Bullet Camera KQ5F1AM Email to a Friend

SKU: KQ5F1AM

Market: US$ ~~0.00~~

Price: US $ 83-111

Buy one or more calculated by the wholesale price

Starting from 2 Units

POE:

Yes已选中
No已选中

WDR:

Yes已选中
No已选中

+Alarm +Audio +SD Card:

Yes已选中
No已选中

Standard package: with Lens&bracket, but w/o power
1/2.8" 2.0M SONY IMX222 CMOS,ICR;
1/2.8" SONY IMX236 CMOS WDR CMOS,ICR (Option: WDR)
・0.2Lux@F1.6(Color),0.01Lux@F1.6(B/W IR-ON);
・Bulit-in IR lens f=2.8-12mm;IR LED 30m;
・H.264/MJPEG,Mobile phone,ONVIF,UPNP；
・1920(H)X1080(V),1080P(1~25/30fps);
・DC12V
No Alarm ,No Audio,No RS485，NO SD Card
Option:KQ8F1AM
1Ch Audio Input/Output ,1ch alarm input/Output,RS485,Suport TF Card(64G)

Features
Specifications
Dimensions
Application
Payment & Shipping

 1/2.8” line scanning digital and advanced DSP technology
 Picture Resolution 1080P color CMOS , 2.0 Mega Pixel, 1920X1080
 Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams
 The most advanced network delivery server technology ,Easily achieve more user access , Multi-stage user password rights management
 Built in Web Server, through the IE browser easy to realize the remote control Settings prison see operation
 Support facilities remote security upgrade function
 Support DDNS ,PPPoE and（UPnP）,Support Lan ,Wan transport.
 Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network
 Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
 Support mobile detection / image shielding / image snapshot
 Functions of auto recovery in abnormality and auto reconnection in network breakdown

	Model	KQ5F1AM
Camera	Pixel	2.0 Mega Pixel, 1920*1080
	Sensor	1/2.8" 2.0M SONY IMX222 CMOS 1/2.8" SONY IMX236 CMOS WDR CMOS
	Lens	2.8-12mm
	Electronic shutter	1/25s-1/30,000s
	Low Lux	Color：0.2Lux@F1.6 B/W：0.01Lux@F1.6
	Auto iris	N/A
	ICR	Support
	Video parameter	Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer
IR	IR Properties	Dual filter day / night: automatic switch, linkage switch
IR	IR Light	ARRAY LED, IR Distance: 50M
Audio-video coding parameters	Compression	H.264 Main Profile@Level 3.0 / MJPEG optional
	Video bit rate	16K-16Mbps, customized
	Bit stream type	Compound streams / video stream
	Audio compress	N/A
	Audio bit rate	N/A
	Triple bit streams	Support
Image	Video resolution	19201080, 1280720, 800*600 optional
Image	Video flame rate	PAL: 1-25 frames/second, NTSC: 1-30 frames/second
Function	PTZ	N/A
	Heartbeat mechanism	Support
	IP auto pop-out	IP auto pop-out at customer end
	Password protection	Multi-level protection on password
	Intellectual alarm	Mobile detection, video shielding, video loss, network breakdown, abnormality in storage
	Basic functions	One-key reset, password protection, watermark technology
Interface	Audio input	N/A
	Video output	N/A
	Network port	1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port
	Serial port	N/A
	Alarm input	N/A
	Alarm output	N/A
Wireless network	WIFI	N/A
	Wireless encryption protocol	N/A
	Cell phone monitor	Support
	3G network	N/A
others	POE	Optional
	Power supply	DC12V/2.0A
	Power consumption	<8W
	Working temp	-10℃ ~ +55 ℃
	Working humidity	10 ~ 85%

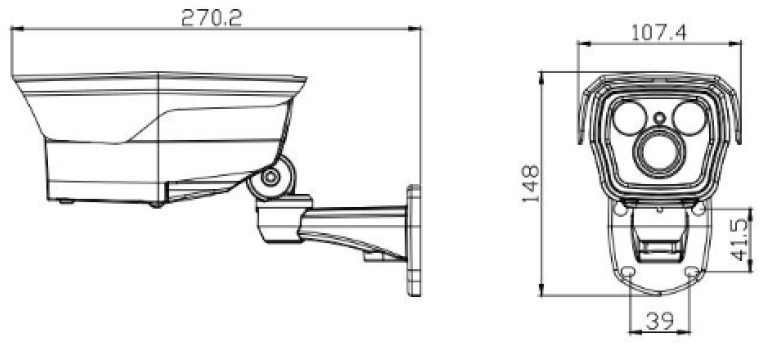

	Dimension	(L)270(W)107(H)148（mm）

	Model	KQ8F18M
Camera	Pixel	2.0 Mega Pixel, 1920*1080
	Sensor	1/2.8" 2.0M SONY IMX222 CMOS 1/2.8" SONY IMX236 CMOS WDR CMOS
	Lens	2.8-12mm
	Electronic shutter	1/25s-1/30,000s
	Low Lux	Color：0.2Lux@F1.6 B/W：0.01Lux@F1.6
	Auto iris	N/A
	ICR	Support
	Video parameter	Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer
IR	IR Properties	Dual filter day / night: automatic switch, linkage switch
IR	IR Light	42pcs 5Φ IR LEDS, IR Distance: 30M
Audio-video coding parameters	Compression	H.264 Main Profile@Level 3.0 / MJPEG optional
	Video bit rate	16K-16Mbps, customized
	Bit stream type	Compound streams / video stream
	Audio compress	G.711
	Audio bit rate	8～16kbps
	Triple bit streams	Support
Image	Video resolution	19201080, 1280720, 800*600 optional
Image	Video flame rate	PAL: 1-25 frames/second, NTSC: 1-30 frames/second
Function	PTZ	N/A
	Heartbeat mechanism	Support
	IP auto pop-out	IP auto pop-out at customer end
	Password protection	Multi-level protection on password
	Intellectual alarm	Mobile detection, video shielding, video loss, network breakdown, abnormality in storage
	Basic functions	One-key reset, password protection, watermark technology
Interface	Audio input	1CH
	Video output	1CH
	Network port	1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port
	Alarm input	1CH
	Alarm output	1CH
	RS485	Support
	SD Card	TF Card(64G)
	Preset	Support
Wireless network	WIFI	N/A
	Wireless encryption protocol	N/A
	Cell phone monitor	Support
	3G network	N/A
others	POE	Optional
	Power supply	DC12V/2.0A
	Power consumption	<8W
	Working temp	-10℃ ~ +55 ℃
	Working humidity	10 ~ 85%
	Dimension	(L)187(W)91(H)120（mm）
	Weight	1.61Kg
