3.0 Megapixels HD IP IR Bullet Camera With WDR KQ5H18M3 Email to a Friend

SKU: KQ5H18M3
Market:  US$    0.00
Price:  US  $ 112-117

Buy one or more calculated by the wholesale price

Starting from 2 Units

POE:
  • Yes已选中
  • No已选中
Quantity: Unit(s)
   Compare   Add to wishlist
Standard package: with lens&bracket, but w/o power
1/3"3.0M Aptina 0331 CMOS;ICR
・0.2Lux@F1.6(Color),0.01Lux@F1.6(B/W IR-ON);
・Bulit-in IR lens f=2.8-12mm;IR LED 30m;
・H.264/MJPEG,Mobile phone,ONVIF,UPNP；
・2048(H)X1536(V)(1~25/30fps);
・DC12V
No Alarm ,No Audio
  • Features
  • Specifications
  • Dimensions
  • Application
  • Payment & Shipping



        1/3” line scanning digital and advanced DSP technology
        Picture Resolution 3.0 Mega Pixel color CMOS , 3.0 Mega Pixel, 2048(H)X1536(V)
        The most advanced network delivery server technology ,Easily achieve more user access , Multi-stage user password rights management
        Built in Web Server， through the IE browser easy to realize the remote control Settings prison see operation
        Support facilities remote security upgrade function
        Support DDNS 、PPPoE and（UPnP），Support Lan 、Wan transport.
        Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network
        Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
        Support mobile detection / image shielding / image snapshot
        Functions of auto recovery in abnormality and auto reconnection in network breakdown





Model

KQ5H18M3

Camera

Pixel

3.0 Mega Pixel, 2048(H)X1536(V)

Lens

2.8-12mm

Electronic shutter

1/25s-1/30,000s

Low Lux

Color：0.2Lux@F1.6  B/W：0.01Lux@F1.6

Auto iris

N/A

ICR

Support

Video parameter

Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer

IR

IR Properties

Dual filter day / night: automatic switch, linkage switch

IR Light

42pcs 5Φ IR LEDS, IR Distance: 30M

Audio-video coding parameters

Compression

H.264 Main Profile@Level 3.0 / MJPEG optional

Video bit rate

16K-16Mbps, customized

Bit stream type

Compound streams / video stream

Audio compress

N/A

Audio bit rate

N/A

Triple bit streams

Support


Video resolution

2048*1536

Video flame rate

PAL: 1-25 frames/second, NTSC: 1-30 frames/second

Function

PTZ

N/A

Heartbeat mechanism

Support

IP auto pop-out

IP auto pop-out at customer end

Password protection

Multi-level protection on password

Intellectual alarm

Mobile detection, video shielding, video loss, network breakdown, abnormality in storage

Basic functions

One-key reset, password protection, watermark technology

Interface

Audio input

N/A

Video output

N/A

Network port

1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port

Serial port

N/A

Alarm input

N/A

Alarm output

N/A

Wireless network

WIFI

N/A

Wireless encryption
protocol

N/A

Cell phone monitor

Support

3G network

N/A

others

POE

Optional

Power supply

DC12V/2.0A

Power consumption

<8W

Working temp

-10℃ ~ +55 ℃

Working humidity

10 ~ 85%

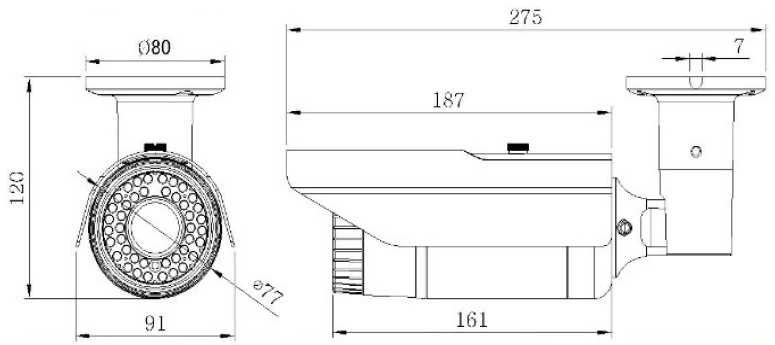

Dimension

(L)187*(W)91*(H)120（mm）

Weight

1.61Kg
