- Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
- Temperature measurement range 30-45 (℃) Accuracy ± 0.3 (℃)
- Automatically identify unmasked personnel and provide real-time warning
- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
- Support mid-range temperature measurement and real-time warning of high temperature
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
- 8-inch IPS HD display
- IP34 rated dust and water resistant
- MTBF> 50000 H
- Support 22400 face comparison library and 100,000 face recognition records
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields
Scene demand
- Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)
|
Model
|
KNT10
|
|
Hardware
|
|
Chipset
|
Hi3516DV300
|
|
System
|
Linux operation system
|
|
RAM
|
16G EMMC
|
|
Image sensor
|
1/2.7" CMOS IMX327
|
|
Lens
|
4.5mm
|
|
Camera Parameters
|
|
Camera
|
Binocular camera supports live detection
|
|
Effective pixel
|
2Mega pixel，1920*1080
|
|
Min. lux
|
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
|
|
SNR
|
≥50db(AGC OFF)
|
|
WDR
|
≥80db
|
|
LCD
|
8inch TFT monitor,resolution:600*1024
|
|
LCD display
|
16:9
|
|
Face Recognition
|
|
Height
|
1.2-2.2 M, angle adjustable
|
|
Distance
|
0.5-2 Meters
|
|
View angle
|
Vertical ±40 degree
|
|
Reco. Time
|
＜500ms
|
|
Temperature
|
|
Measurement temperature
|
10℃- 35℃
|
|
Measurement Range
|
30-45（℃）
|
|
Accuracy
|
±0.3（℃）
|
|
Detect Distance
|
0.3-0.8M(best distance is 0.5M)
|
|
Detect time
|
＜500ms
|
|
Interface
|
|
Internet interface
|
RJ45 10M/100M Ethernet
|
|
Weigand port
|
Support input/output 26 and 34
|
|
Alarm output
|
1channel relay output
|
|
USB port
|
1USB port (Can be connected to ID identifier）
|
|
General
|
|
Power input
|
DC 12V/2A
|
|
Power consumption
|
20W(MAX)
|
|
Working temperature
|
10℃ ～ 35℃(Thermal sensor)
|
|
Humidity
|
5～90%, no condense
|
|

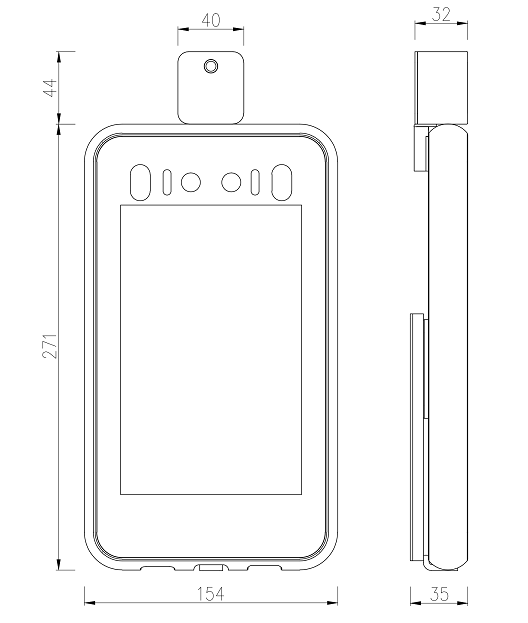

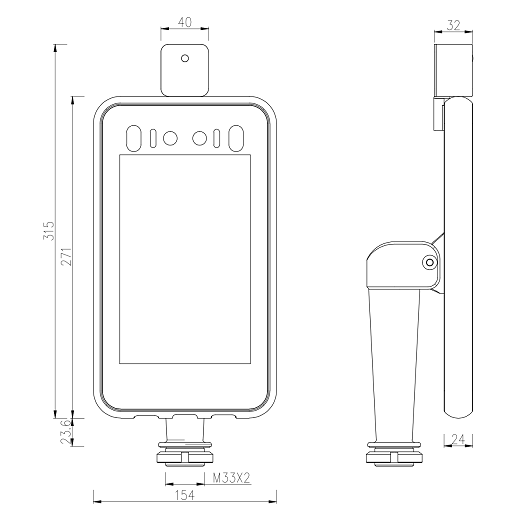

Dimension
|
154(W) * 32(H) *315.3(L)mm
|
|
Weight
|
2.8 kg
|
|
Column aperture
|
27mm
|
KVSecurity Access Control offers a wide range of products and various solutions designed for preventing unauthorized personnel from entering the designated areas and keeping access records.
Supporting management of up to 100,000 face recognition record and 22400 face comparison library,advanced infrared temperature detection combine with face algorithm recognition and ID card,realizing non-contact rapid human body temperature detection,registration,recording and other functions,
It is widely used in places where the flow of people is controlled, such as office areas, hotels, access gates, office buildings, schools, shopping malls, communities, public services and management projects.
KVSecurity supports standard device SDK and HTTP protocols to ease integration with 3rd party software.
